Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

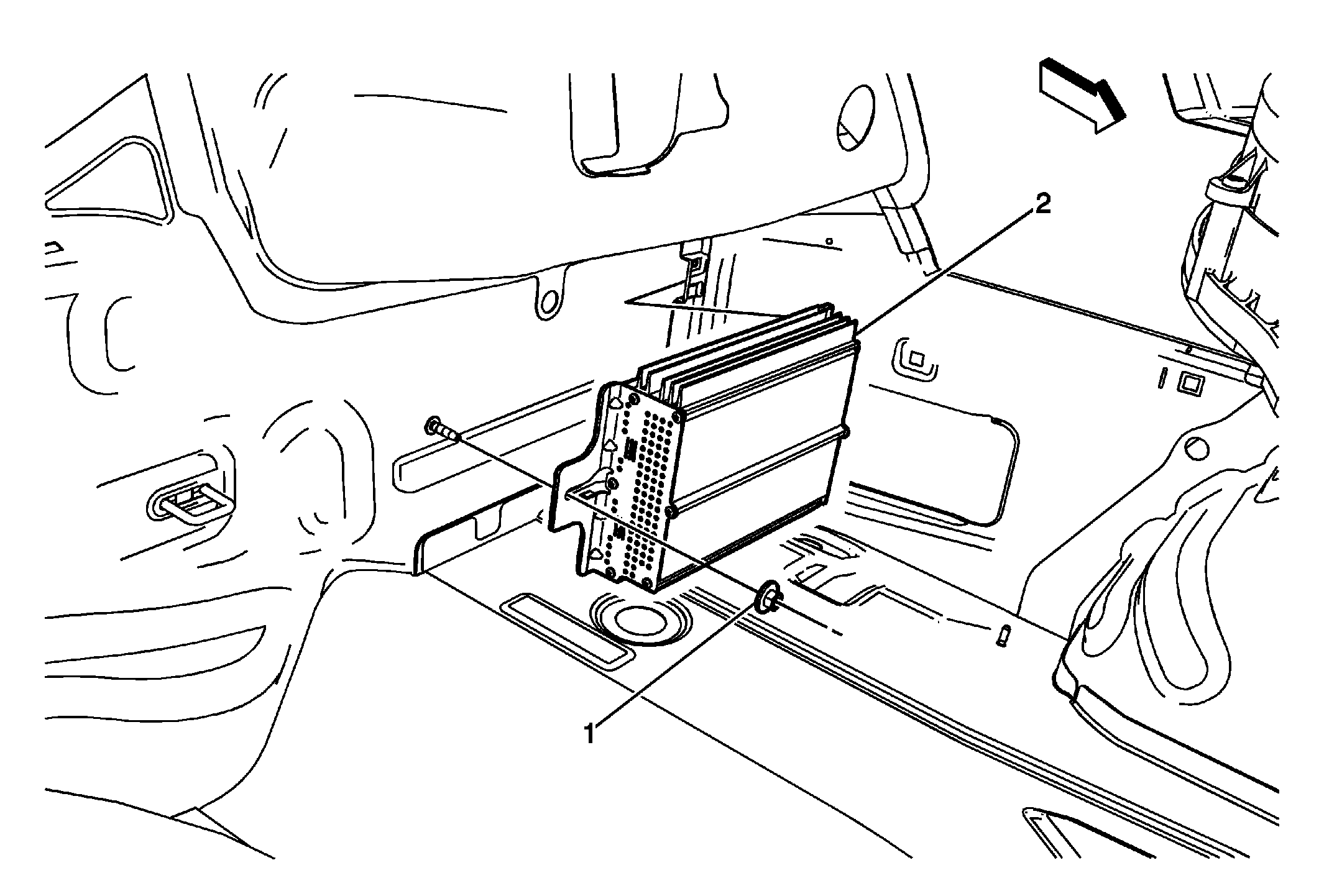

Fig 1: Radio Speaker Amplifier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement . Reposition the rear compartment side trim panel on the left side of the vehicle. The panel is cloth and easily moved to gain access to the radio speaker amplifier.
1	Radio Speaker Amplifier Nut CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Radio Speaker Amplifier Assembly Procedure Slide amplifier from integral retaining tabs. Disconnect electrical connection.

Callout

Component Name

Preliminary Procedure

Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
Reposition the rear compartment side trim panel on the left side of the vehicle. The panel is cloth and easily moved to gain access to the radio speaker amplifier.

Radio Speaker Amplifier Nut

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Radio Speaker Amplifier Assembly

Procedure

Slide amplifier from integral retaining tabs.
Disconnect electrical connection.
