Radio Antenna Base Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

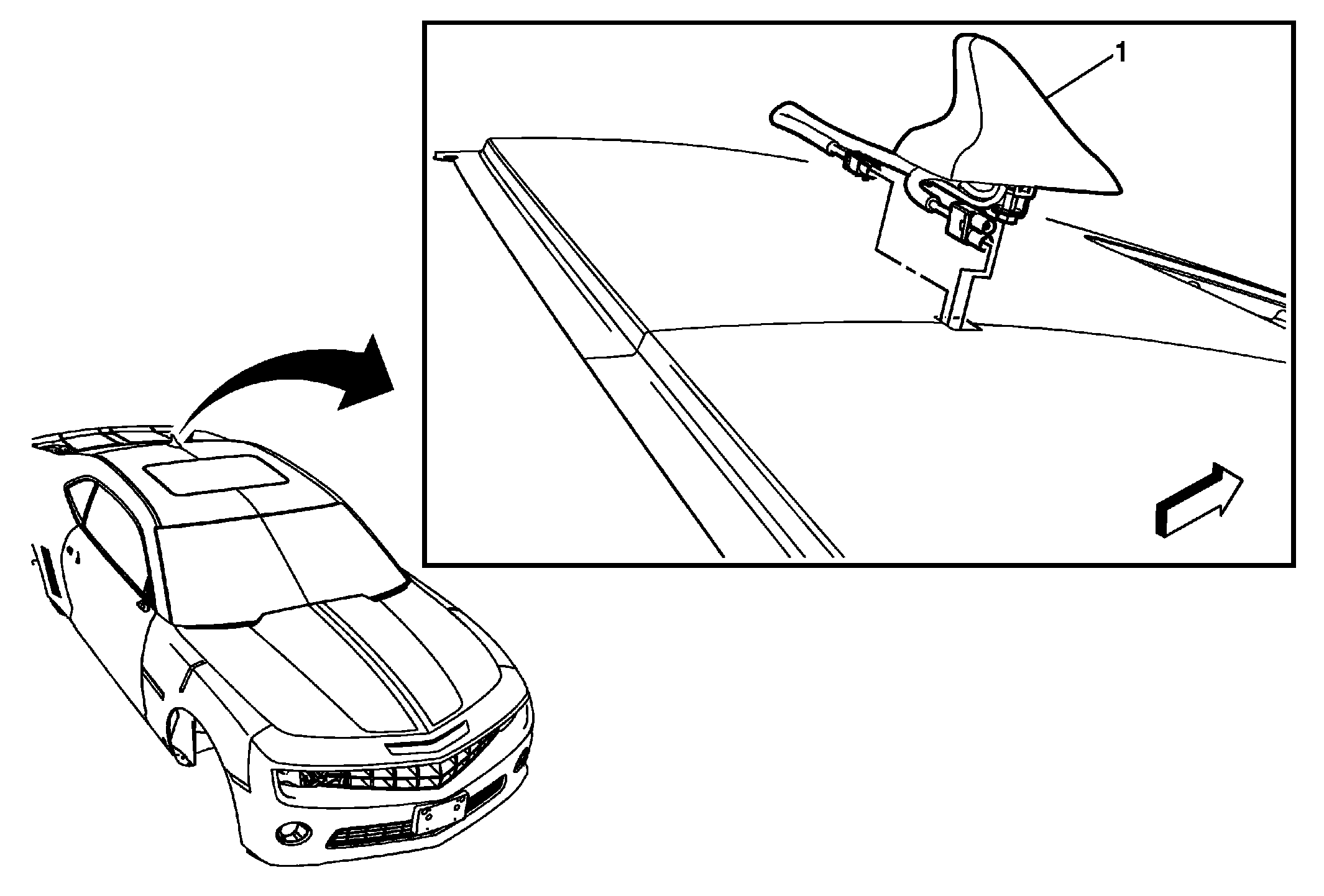

Fig 1: Radio Antenna Base

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lower the headliner trim panel to access the antenna base fastener. Refer to Headlining Trim Panel Replacement or the sunroof panel trim panel, if equipped. Refer to Sunroof Panel Trim Panel Replacement .
1	Radio Antenna Base CAUTION: Refer to Fastener Caution . Procedure Loosen the integral nut. Disconnect the electrical connections. Disconnect the antenna cables. Feed the wiring and cable up through the hole in the roof panel. Tighten: 10 N.m (89 lb in)

Callout

Component Name

Preliminary Procedure:
Lower the headliner trim panel to access the antenna base fastener. Refer to Headlining Trim Panel Replacement or the sunroof panel trim panel, if equipped. Refer to Sunroof Panel Trim Panel Replacement .

Radio Antenna Base

CAUTION: Refer to Fastener Caution .

Procedure

Loosen the integral nut.
Disconnect the electrical connections.
Disconnect the antenna cables.
Feed the wiring and cable up through the hole in the roof panel.

Tighten: 10 N.m (89 lb in)
