Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

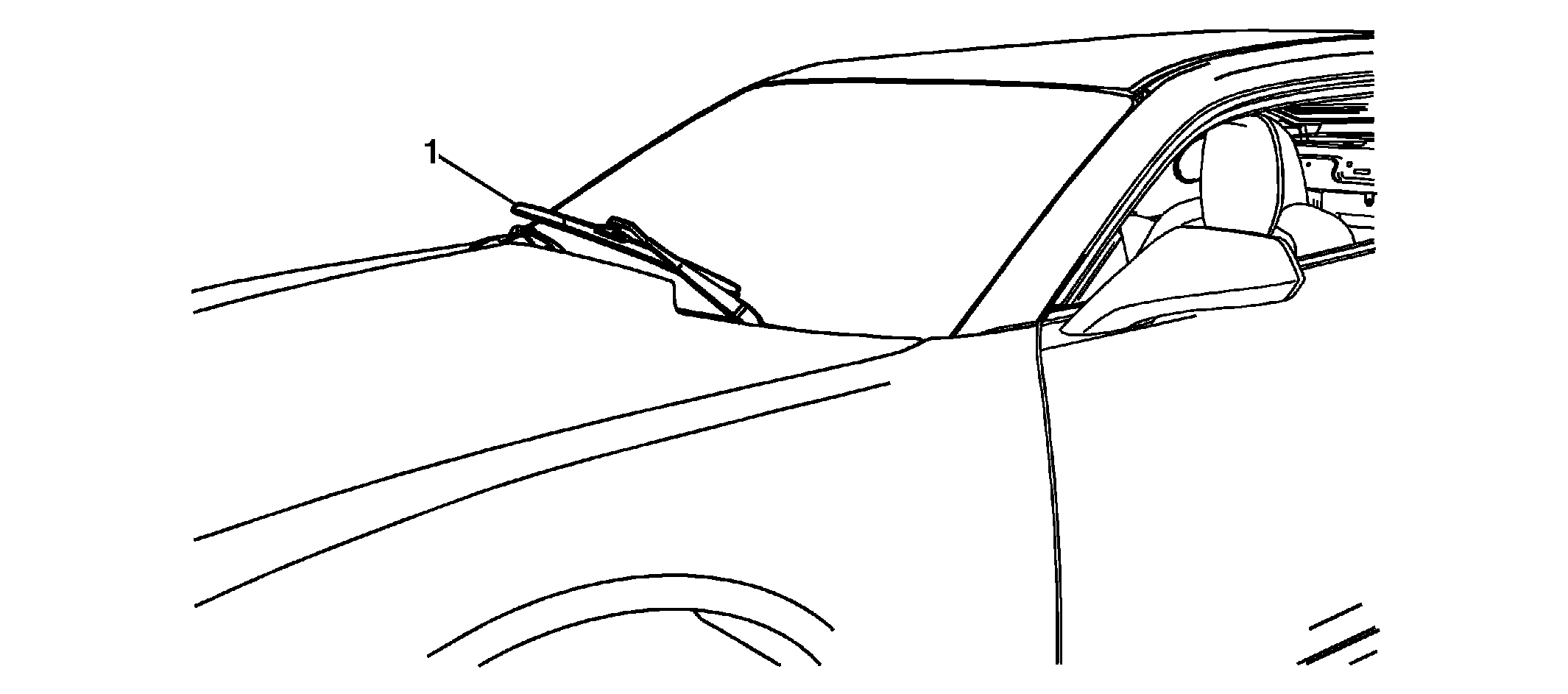

Fig 1: Windshield Wiper Blade

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lift the wiper arm assembly off the windshield and hold.
1	Windshield Wiper Blade Procedure Lift and release the locking tab from the top side of the wiper blade. Slightly rotate the wiper blade downward. Slide the wiper blade off the wiper arm sheep hook. Gently set the bare wiper arm on the protected windshield surface.

Callout

Component Name

Preliminary Procedure:
Lift the wiper arm assembly off the windshield and hold.

Windshield Wiper Blade

Procedure

Lift and release the locking tab from the top side of the wiper blade.
Slightly rotate the wiper blade downward.
Slide the wiper blade off the wiper arm sheep hook.
Gently set the bare wiper arm on the protected windshield surface.
