Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

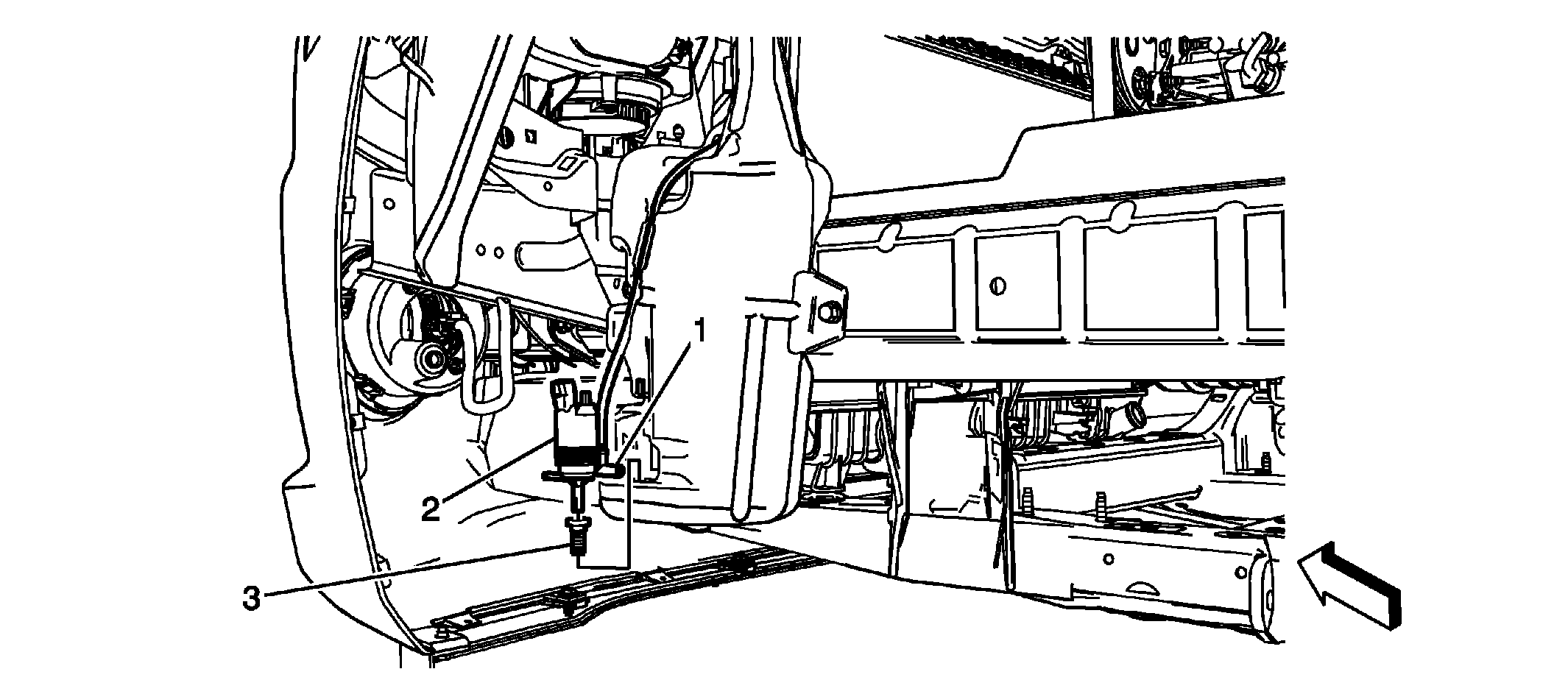

Fig 1: Windshield Washer Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front driver side wheelhouse panel liner. Refer to Front Wheelhouse Liner Replacement . Disconnect the windshield washer pump electrical connector.
1	Windshield Washer Pump Hose Tip: Disconnect the washer pump hose from the washer pump spout.
2	Windshield Washer Pump Procedure Place a clean suitable drain pan under the washer container in order to contain the windshield washer solvent. Using two medium sized flat-bladed tools, place the tools under the washer pump and pry upward, releasing the washer pump from the washer container filter grommet. Remove the washer pump filter grommet and discard.
3	Windshield Washer Pump Filter Grommet Tip: Install a new washer pump filter grommet upon replacement of the washer pump.
