Headlamp Washer Nozzle Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

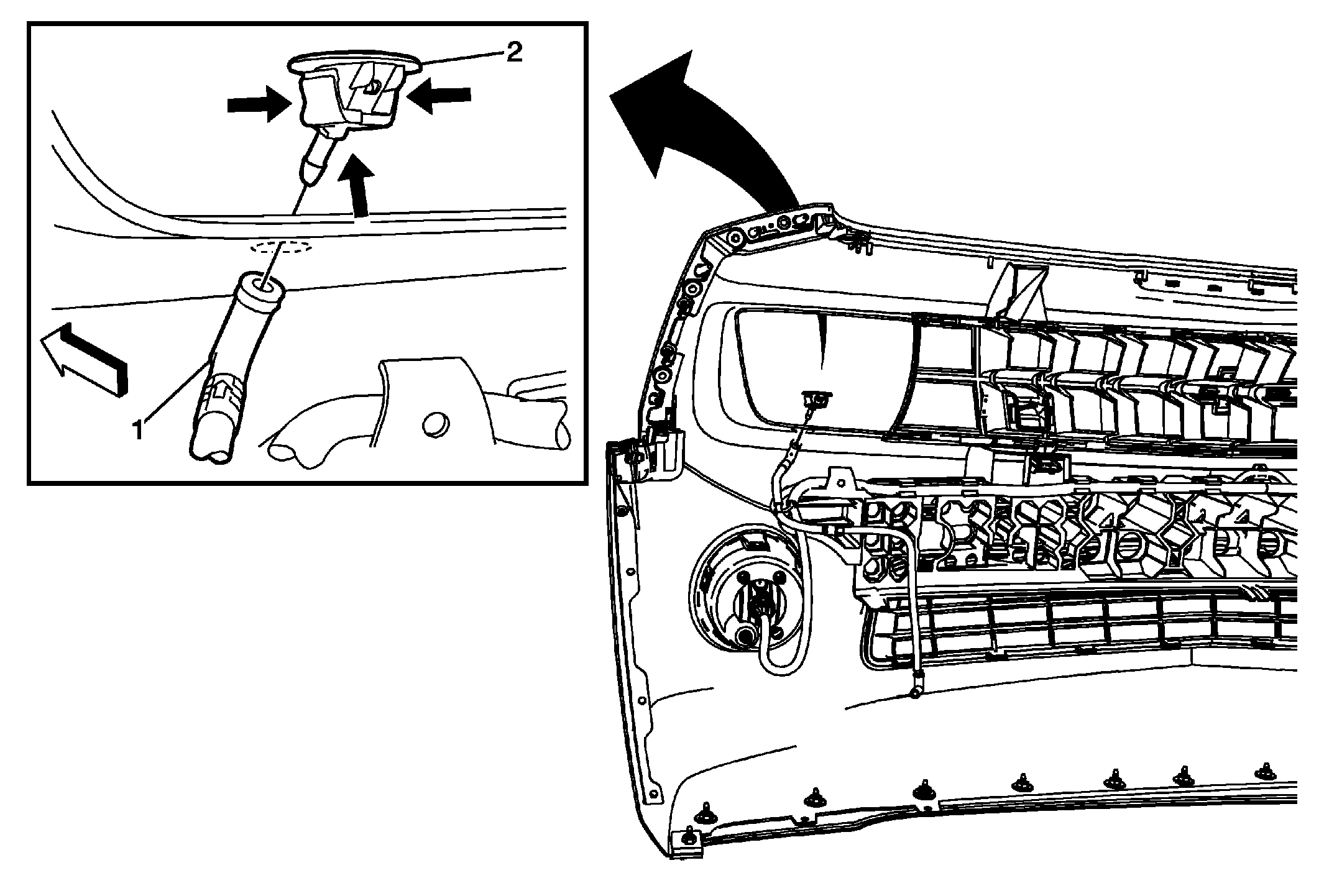

Fig 1: Headlamp Washer Nozzle
GM2201486Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  2. Disconnect the headlamp washer pump hose from the main headlamp washer nozzle assembly.
1 Headlamp Washer Hose
Tip:  Disconnect the headlamp washer hose from the headlamp washer nozzle spout.
2 Headlamp Washer Nozzle Assembly

Procedure

  1. Pinch the tabs inward on the washer nozzle and push the nozzle upward and forward out of the front bumper fascia.
  2. Remove the headlamp washer nozzle.
