Headlamp Washer Hose Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

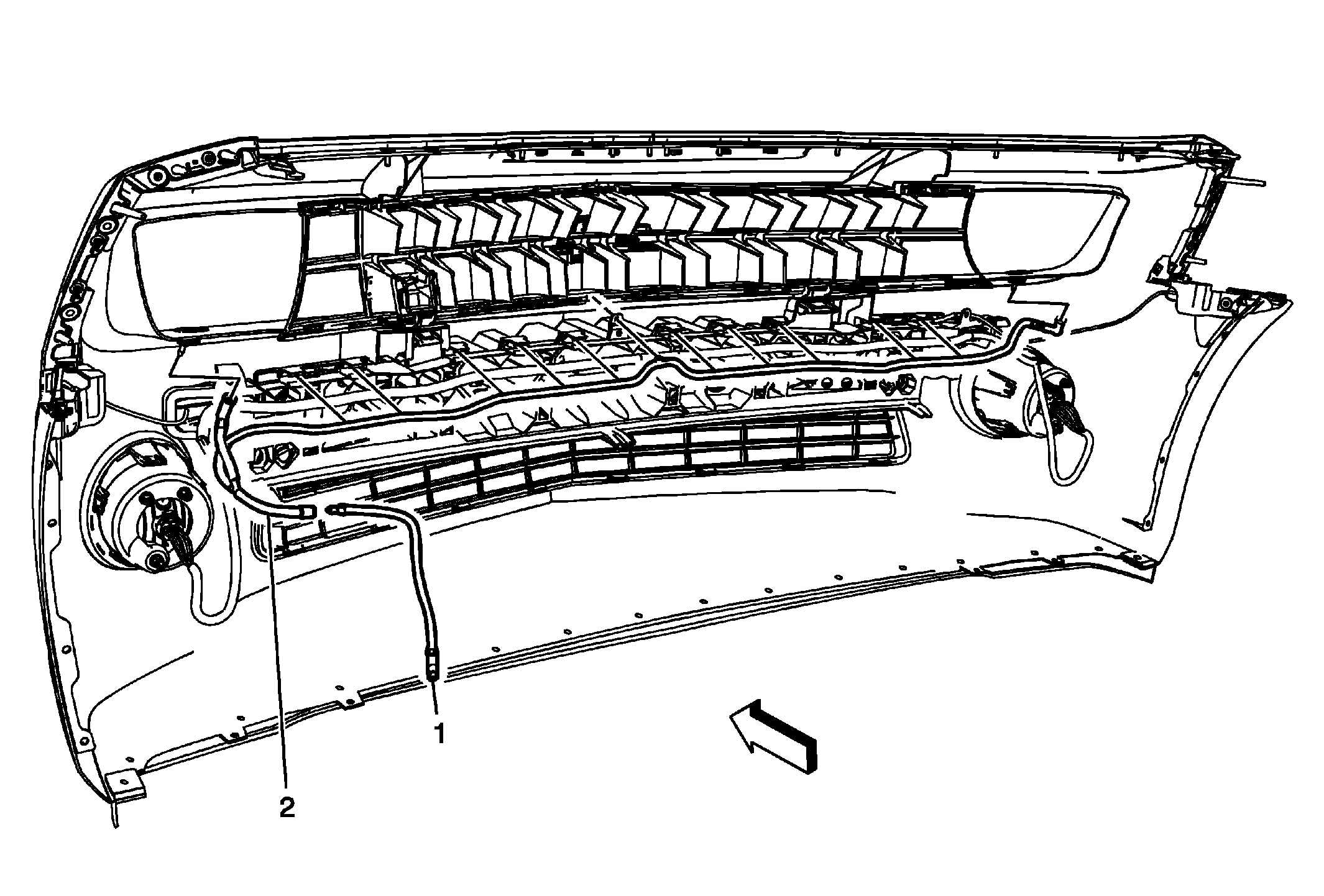

Fig 1: Headlamp Washer Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Disconnect the headlamp washer pump jumper hose from the main headlamp washer hose assembly. Disengage the center retainer for the main electrical harness and remove the harness from the clips within the front bumper energy absorber.
1	Headlamp Washer Pump Jumper Hose Tip: Disconnect the jumper from the main headlamp washer hose.
2	Headlamp Washer Hose Assembly Procedure Disengage the center retainer securing the headlamp washer hose to the front bumper energy absorber. Disconnect both hose elbows from the headlamp washer nozzles. Release and remove the headlamp washer hose from the retention clips on the front bumper energy absorber.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Disconnect the headlamp washer pump jumper hose from the main headlamp washer hose assembly.
Disengage the center retainer for the main electrical harness and remove the harness from the clips within the front bumper energy absorber.

Headlamp Washer Pump Jumper Hose
Tip: Disconnect the jumper from the main headlamp washer hose.

Headlamp Washer Hose Assembly

Procedure

Disengage the center retainer securing the headlamp washer hose to the front bumper energy absorber.
Disconnect both hose elbows from the headlamp washer nozzles.
Release and remove the headlamp washer hose from the retention clips on the front bumper energy absorber.
