Sunroof Air Deflector Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

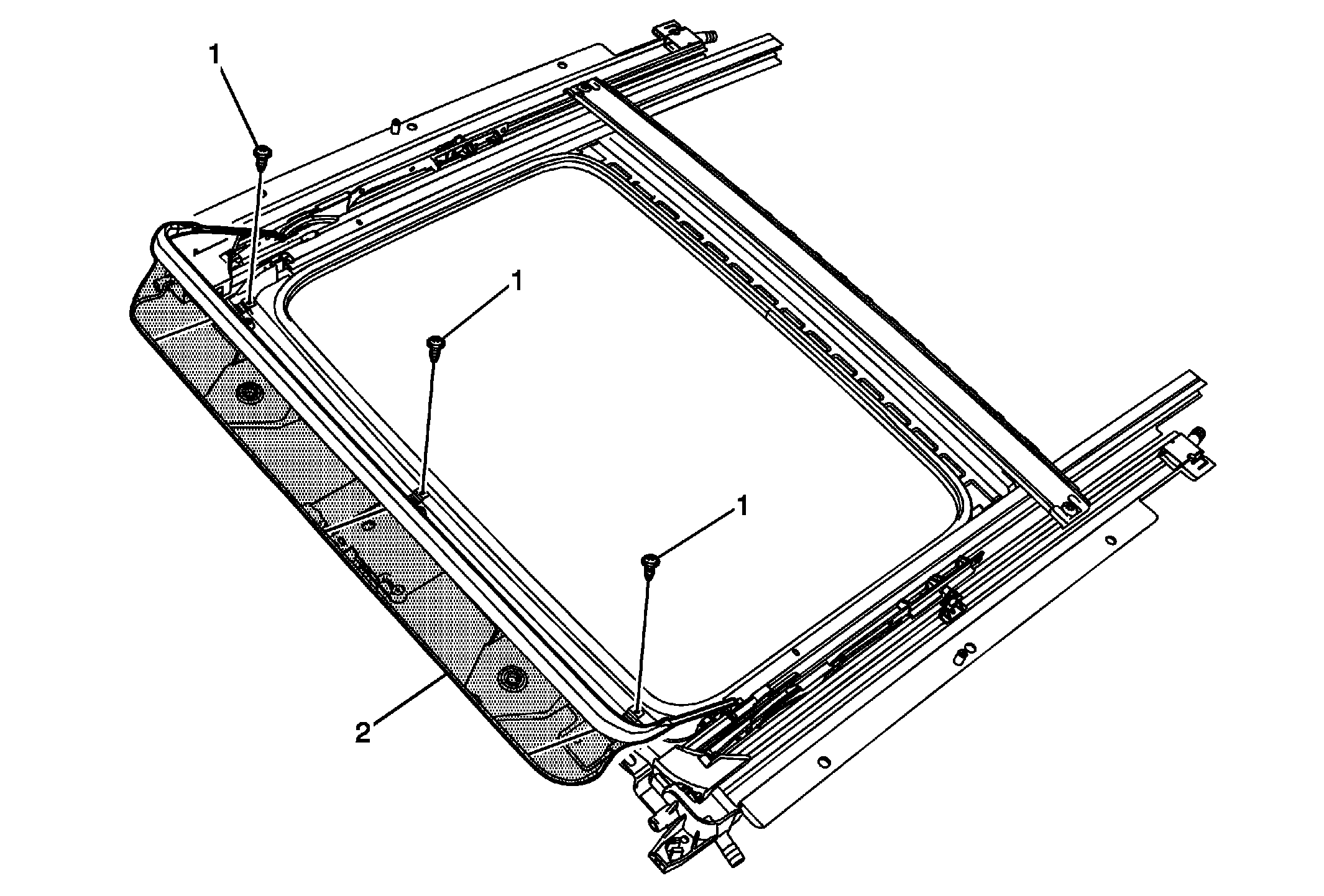

Fig 1: Sunroof Air Deflector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Air Defector Retainers (Qty: 3) CAUTION: Refer to Fastener Caution . Procedures Open the sunroof window to the fully open position. Release the left and right side of the sunroof air deflector side tension arms from the frame. Use care not to damage the sunroof air deflector screen. Tighten: 4 N.m (35 lb in).
2	Sunroof Air Deflector

Callout

Component Name

Sunroof Air Defector Retainers (Qty: 3)

CAUTION: Refer to Fastener Caution .

Procedures

Open the sunroof window to the fully open position.
Release the left and right side of the sunroof air deflector side tension arms from the frame.
Use care not to damage the sunroof air deflector screen.

Tighten: 4 N.m (35 lb in).

Sunroof Air Deflector
