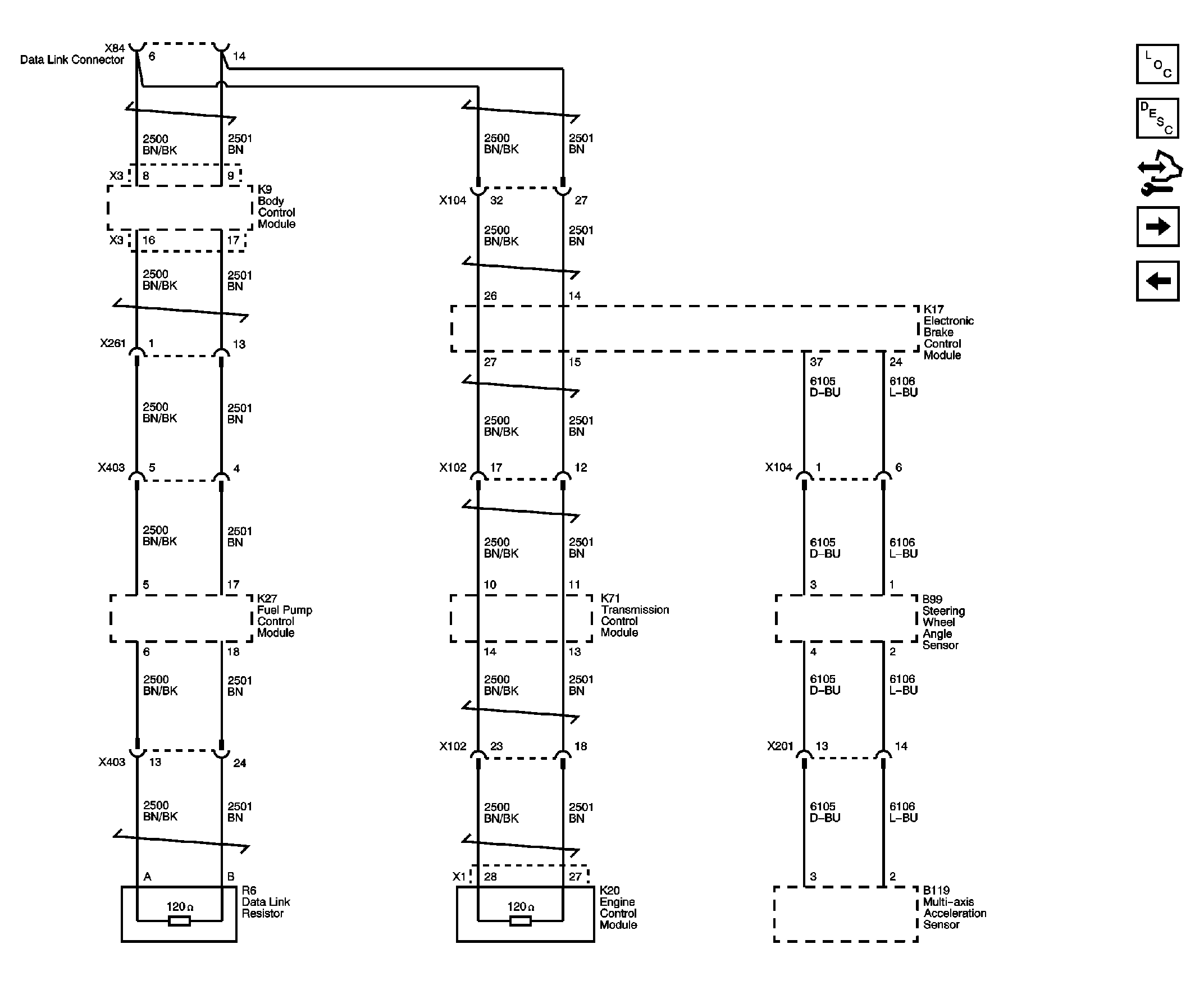

Home >> Chevrolet >> 2011 >> Caprice >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> High Speed GMLAN Wiring Schematics
