Subsystem References Wiring Schematics (3 of 3)

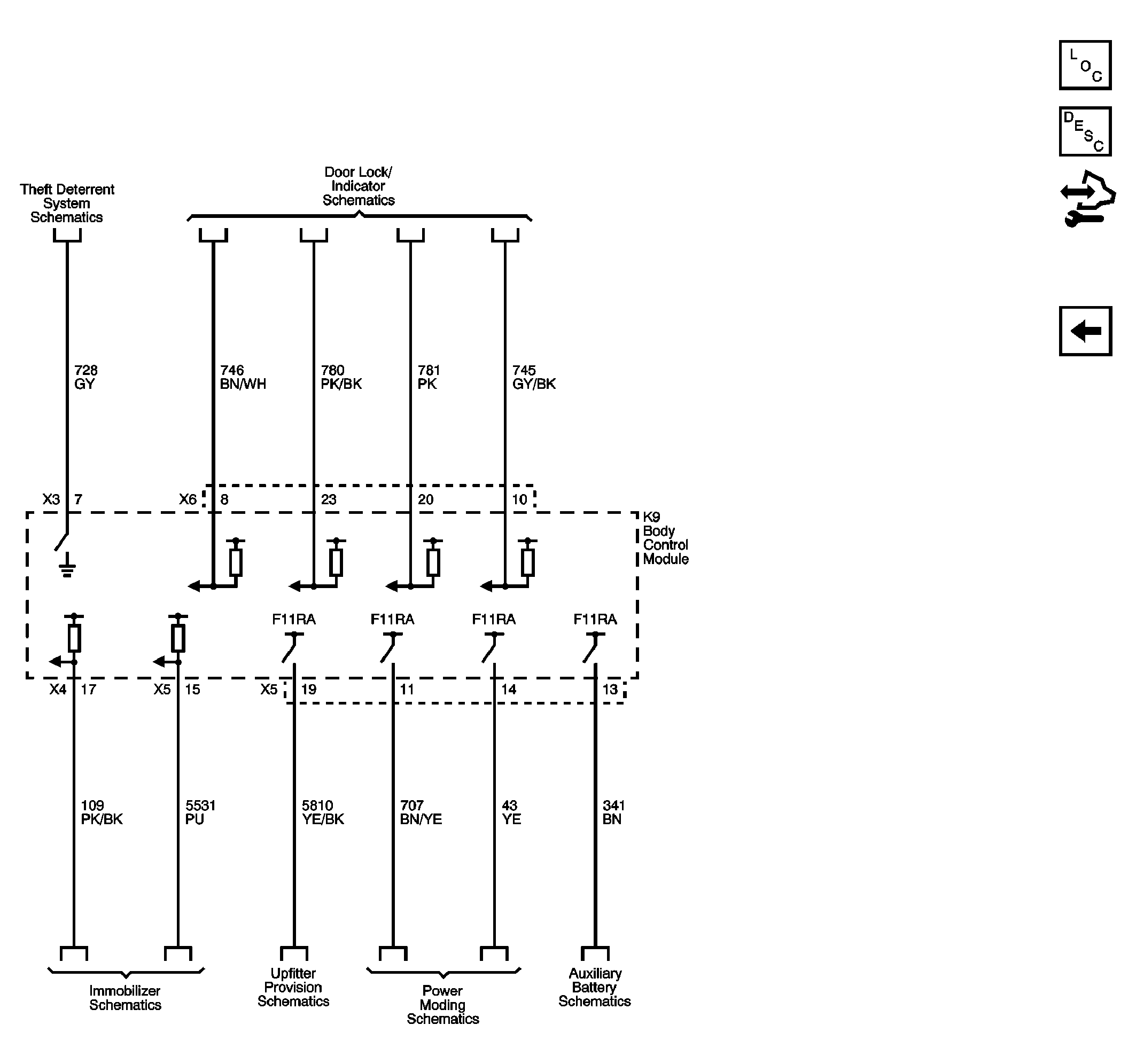

Fig 1: Subsystem References Wiring Schematic (3 of 3)

GM2531631

Courtesy of GENERAL MOTORS CORP.
