Subsystem References Wiring Schematics (1 of 3)

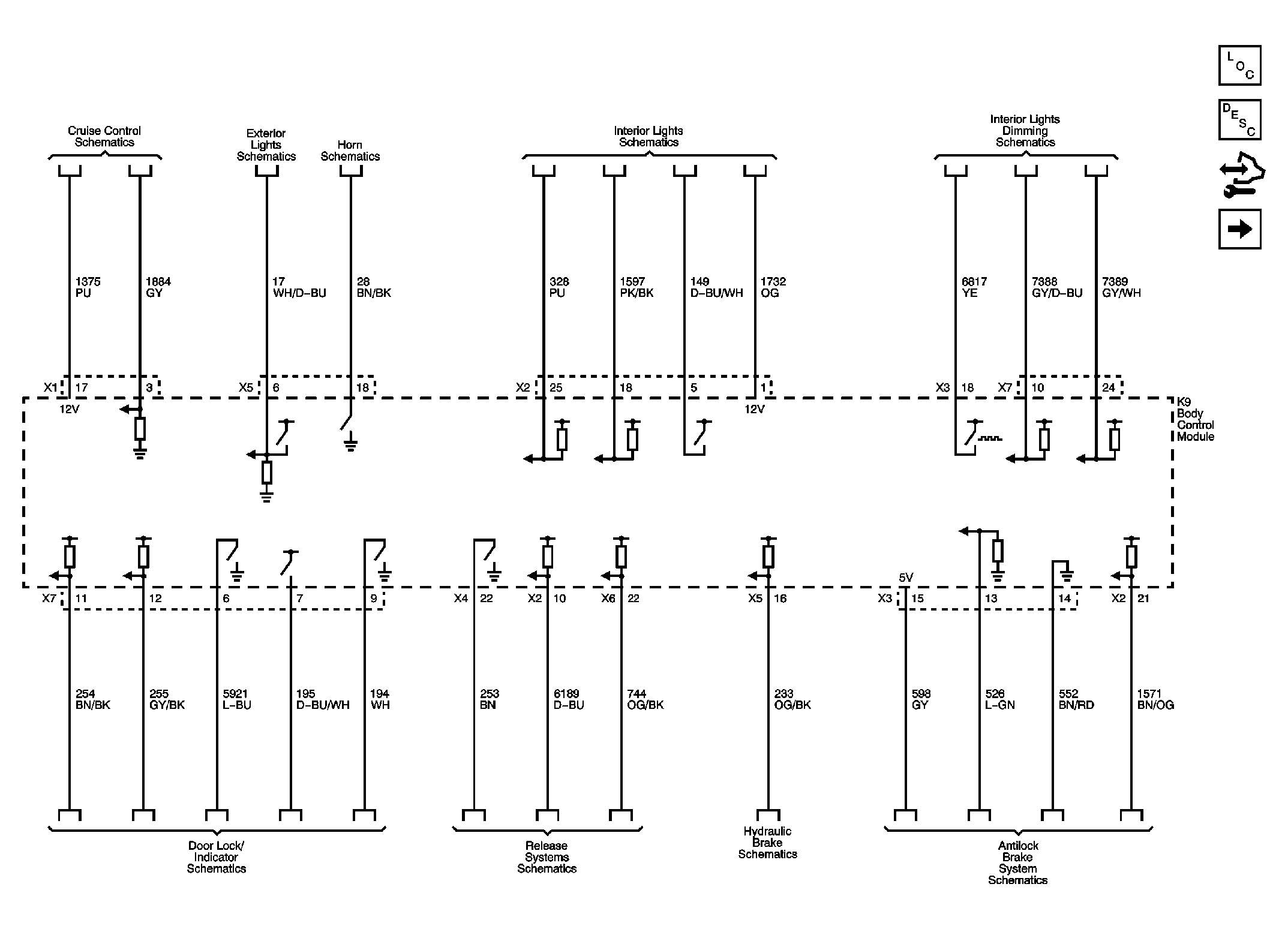

Fig 1: Subsystem References Wiring Schematic (1 of 3)

GM2531629

Courtesy of GENERAL MOTORS CORP.
