Installation Procedure

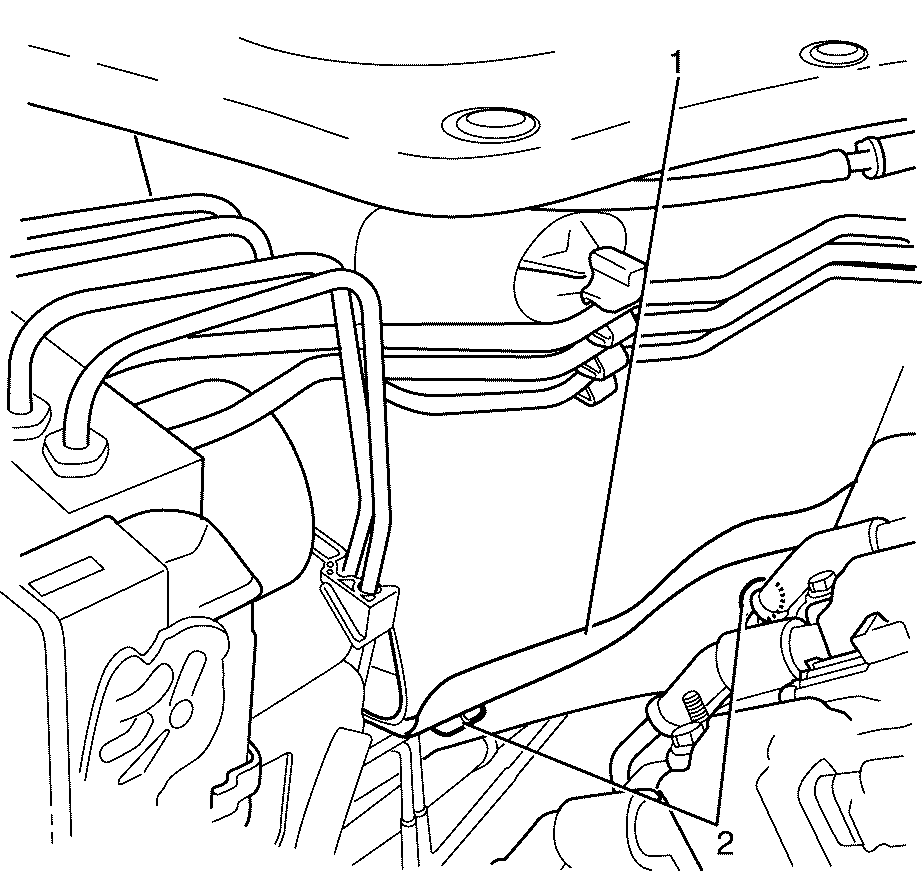

    Fig 1: Identifying Exhaust Manifold Heat Shield
    GM2049447Courtesy of GENERAL MOTORS CORP.
  1. Install the exhaust manifold heat shield (1) to the vehicle.
  2. Install the exhaust manifold heat shield to air box retaining clips (2).
