Removal Procedure

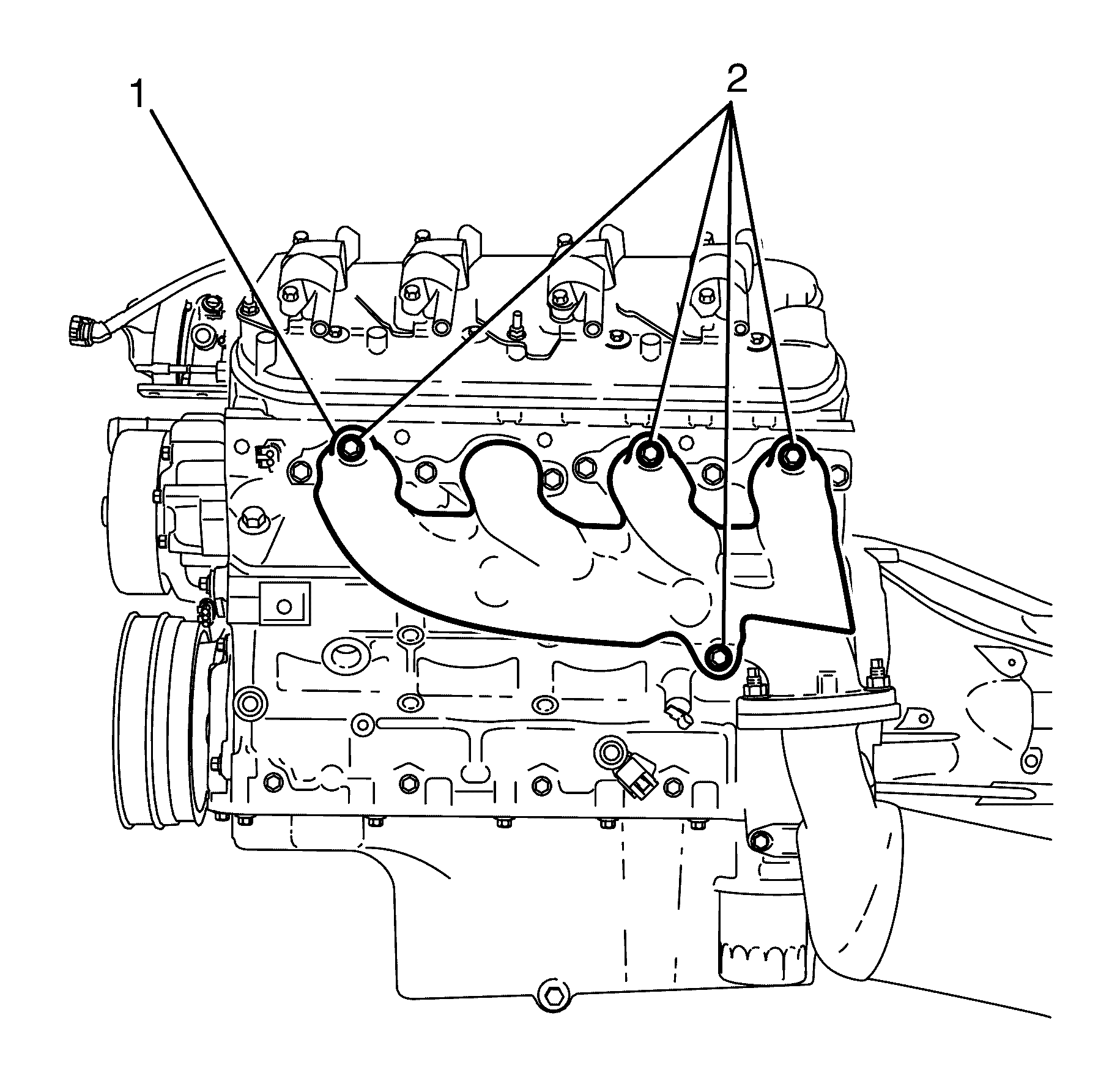

    Fig 1: Identifying Left Side Exhaust Manifold Heat Shield To Left Side Exhaust Manifold Retaining Bolts
    GM1951047Courtesy of GENERAL MOTORS CORP.
    WARNING:

    Refer to Exhaust Service Warning .

    WARNING:

    Refer to Protective Goggles and Glove Warning .

  1. Remove the exhaust manifold heat shield to exhaust manifold retaining bolts (2).
  2. Remove the exhaust manifold heat shield (1) from the exhaust manifold.
