Electrical Component Locator - Door Component Views
>>
Door Component Views
>>
Left Rear Door Components
Left Rear Door Components
Left Rear Door Components
Component Name
Callout
A23LR Door Latch Assembly - Left Rear
1
P19AL Speaker - Left Rear Door
2
M74LR Window Motor - Left Rear
3

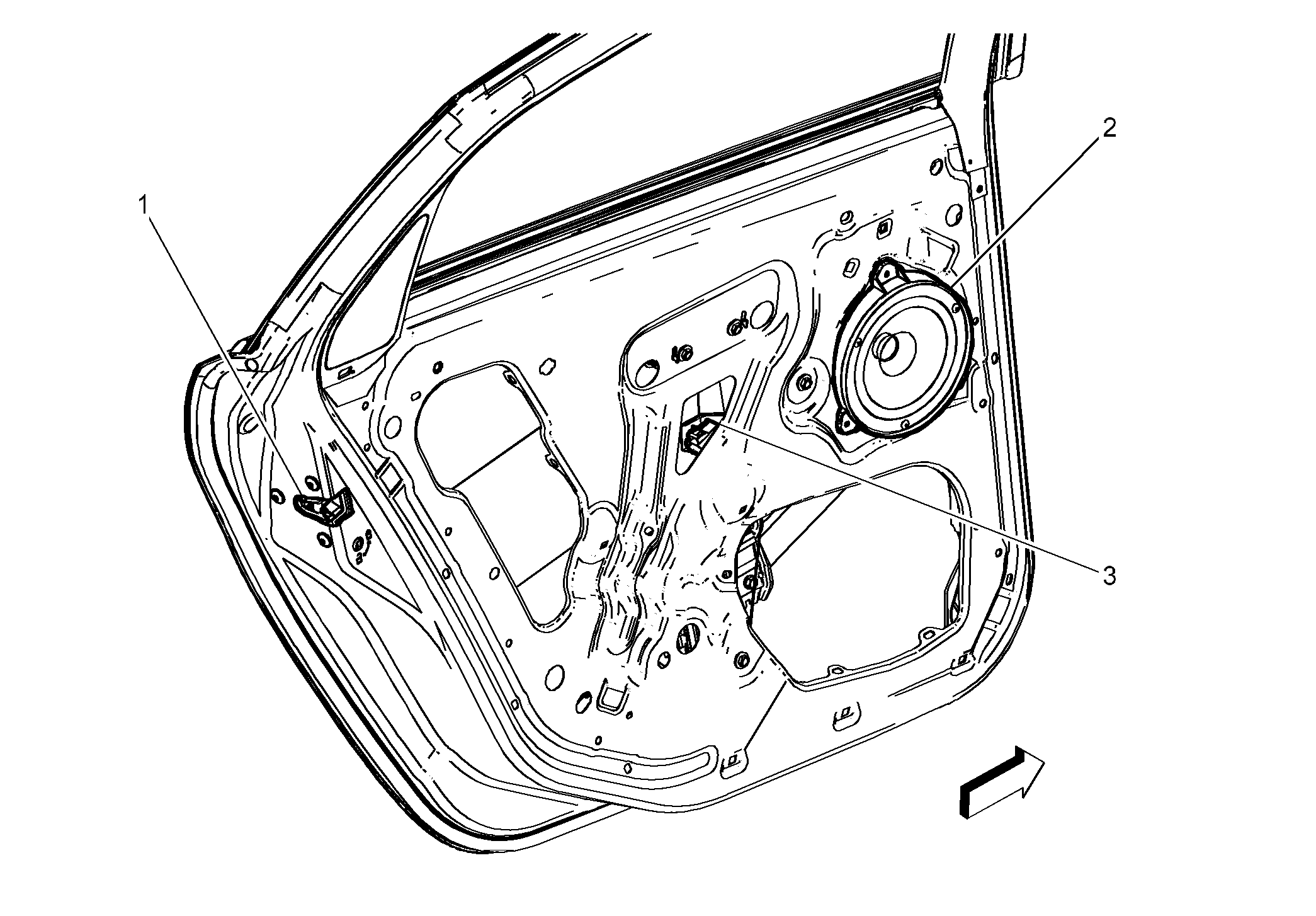

Fig 1: Left Rear Door Components
Courtesy of GENERAL MOTORS CORP.
