Electrical Component Locator - Door Component Views
>>
Door Component Views
>>
Driver Door Components
Driver Door Components
Driver Door Components
Component Name
Callout
A23D Door Latch Assembly - Driver
1
A9A Outside Rearview Mirror - Driver
2
P19AG Speaker - Left Front Door
3
M74D Window Motor - Driver
4
S101 Window Switch - Driver
5

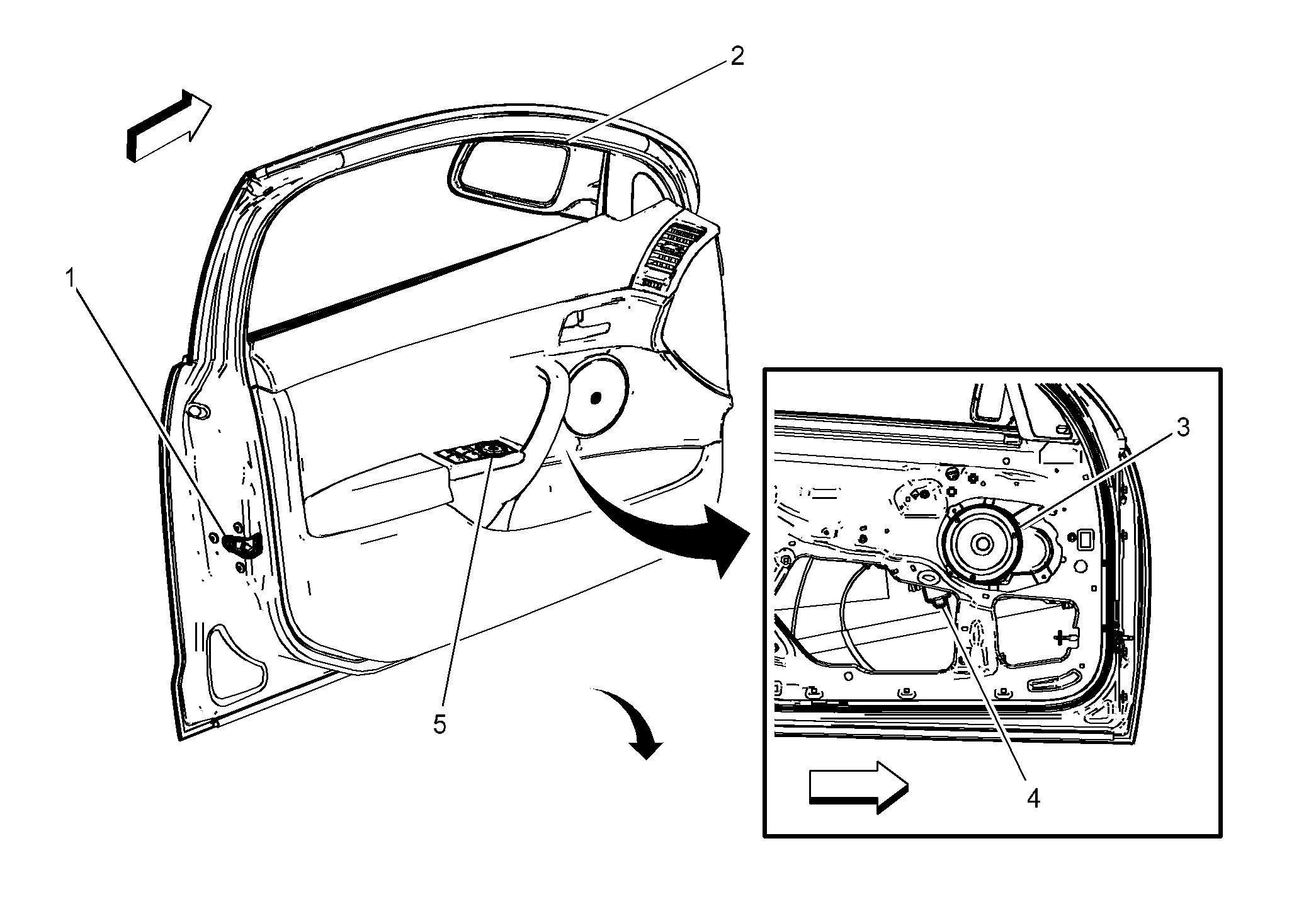

Fig 1: Driver Door Components
Courtesy of GENERAL MOTORS CORP.
