Removal Procedure

    WARNING:

    Refer to Safety Glasses Warning .

  1. Ignition OFF.
  2. Remove the alternator. Refer to Generator Replacement .

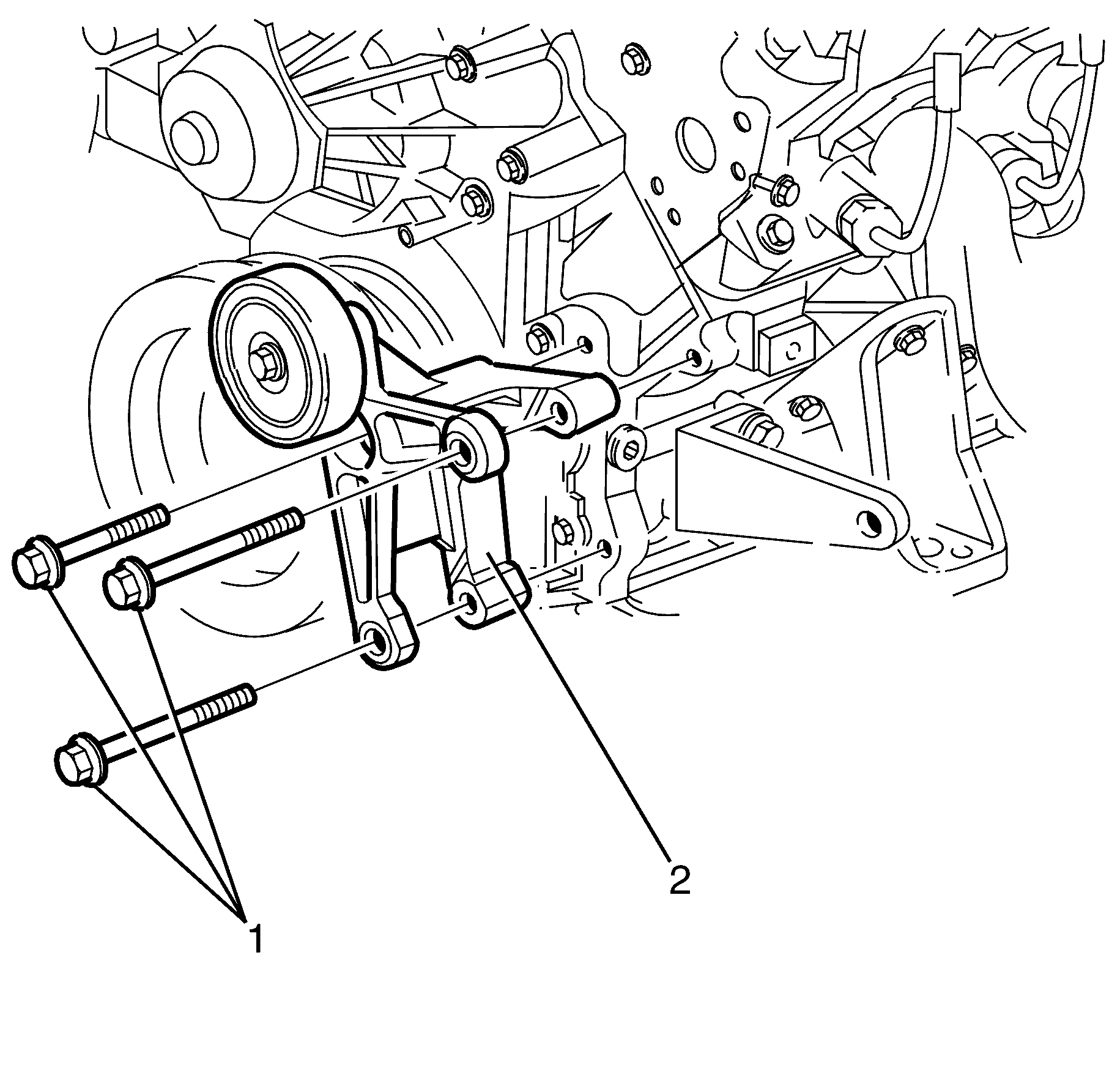

    3. Fig 1: Identifying Alternator Bracket To Engine Block Mounting Bolts
    GM1949845Courtesy of GENERAL MOTORS CORP.
  3. Remove the alternator bracket to engine block mounting bolt (1).
  4. Remove the alternator bracket (2) from the vehicle.
