Installation Procedure

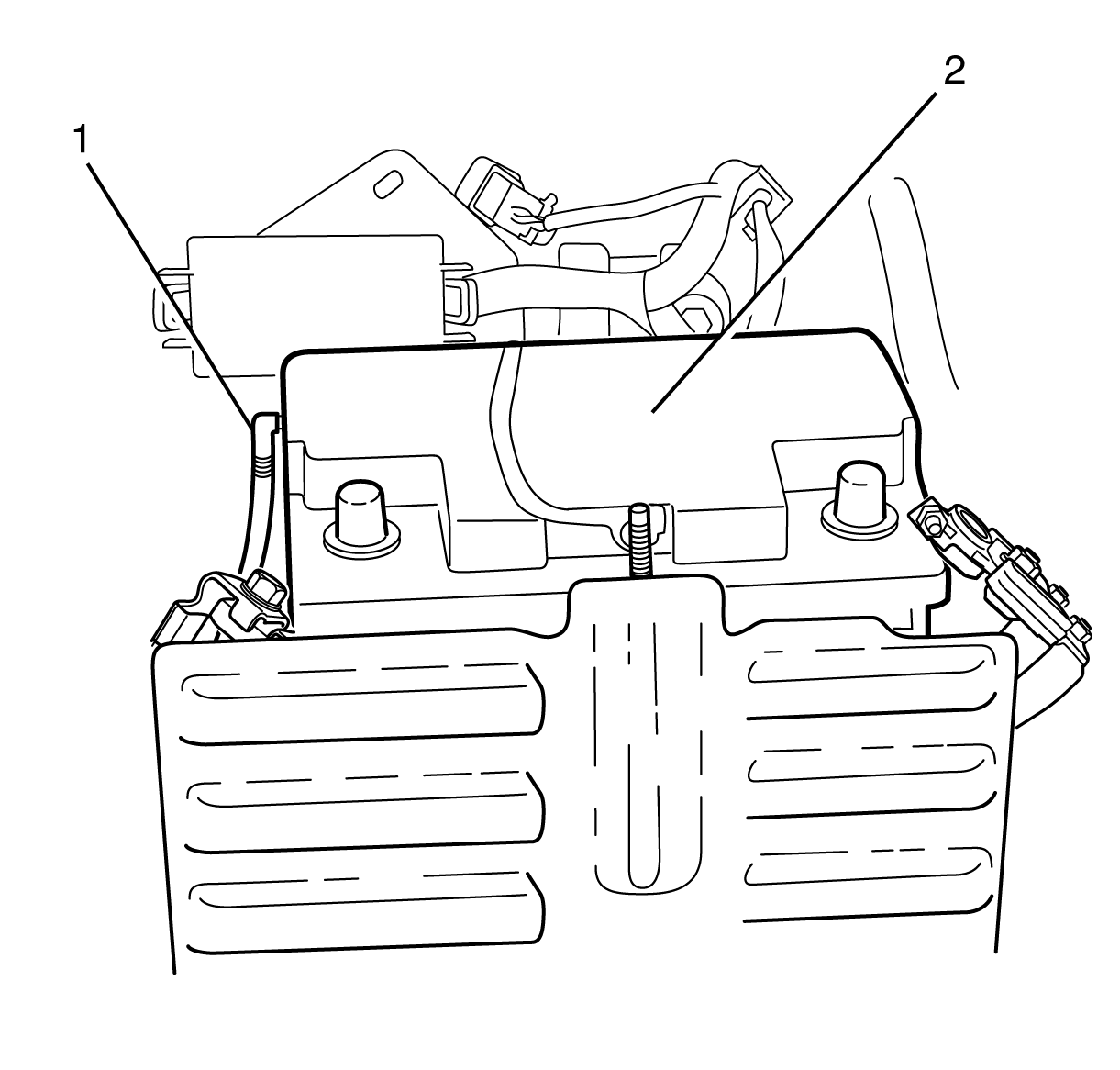

    Fig 1: Identifying Battery & Vent Hose
    GM1949878Courtesy of GENERAL MOTORS CORP.
  1. Install the battery (2) to the vehicle.
  2. Attach the battery vent hose (1) to the battery (2).

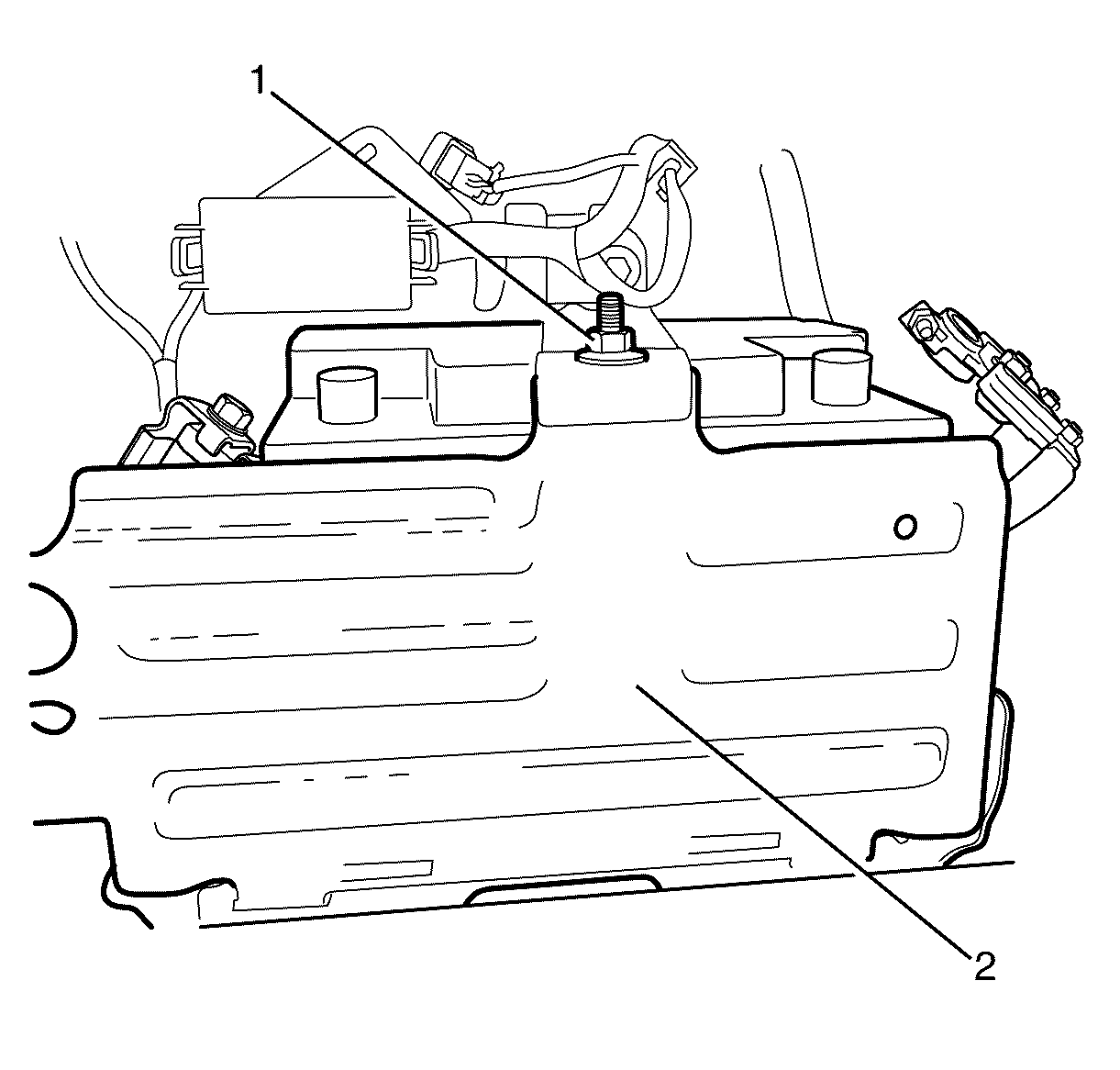

    3. Fig 2: Identifying Battery Retainer Strap Nut
    GM1949837Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  3. Install the battery retainer plate (2), locate the retainer strap to the retainer plate, and install the battery retainer strap nut (1). Tighten the nut to 6 N.m (53 lb in).

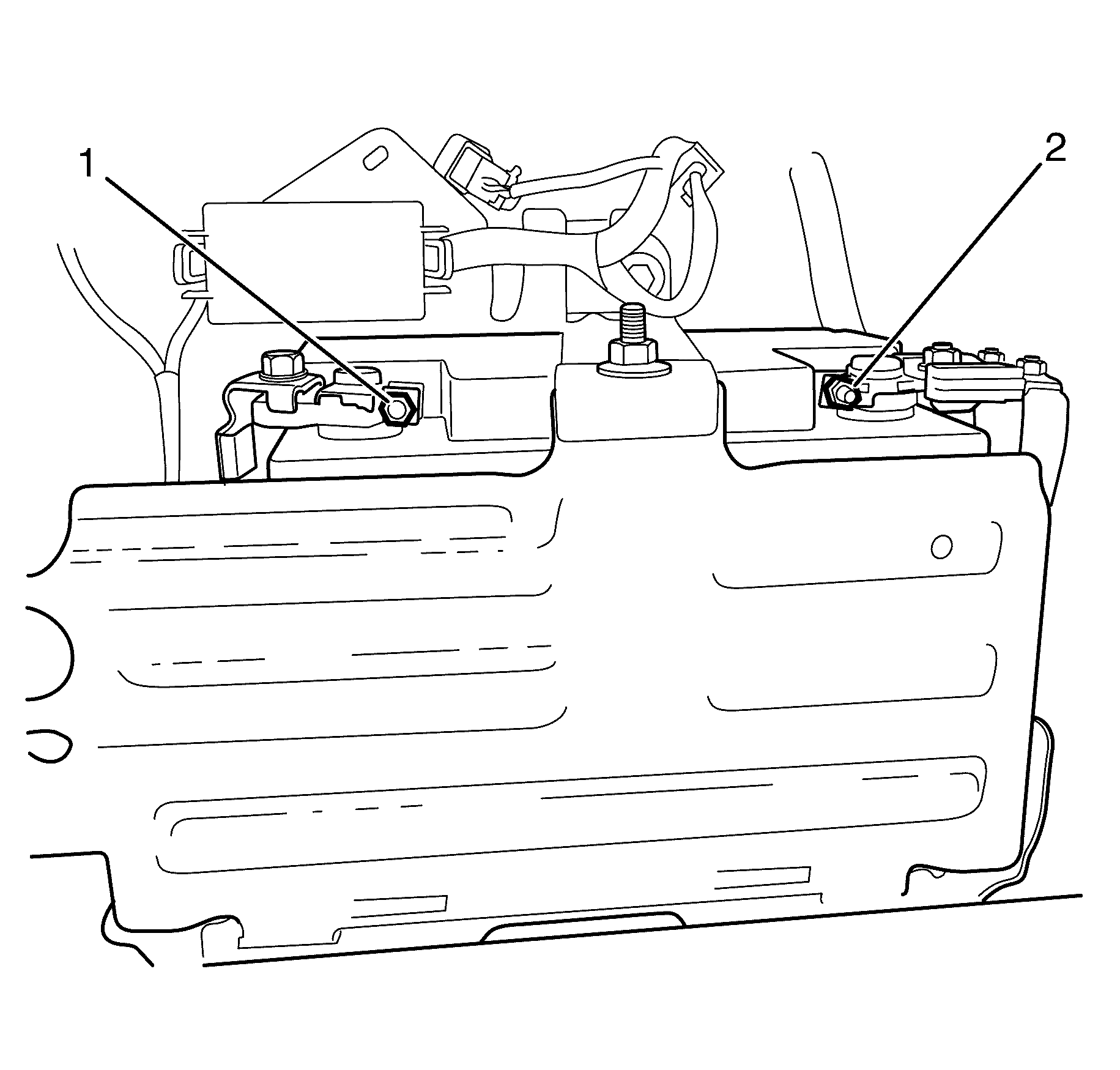

    4. Fig 3: Identifying Battery Positive & Negative Cables
    GM1949822Courtesy of GENERAL MOTORS CORP.
  4. Connect the battery positive cable (2) to the battery and tighten to 5 N.m (44 lb in).
  5. Connect the battery negative cable (1) and tighten to 5 N.m (44 lb in). Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  6. Install the left side rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
  7. Install the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
  8. Install the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement (Sedan) .
  9. Close rear compartment lid.
