Installation Procedure

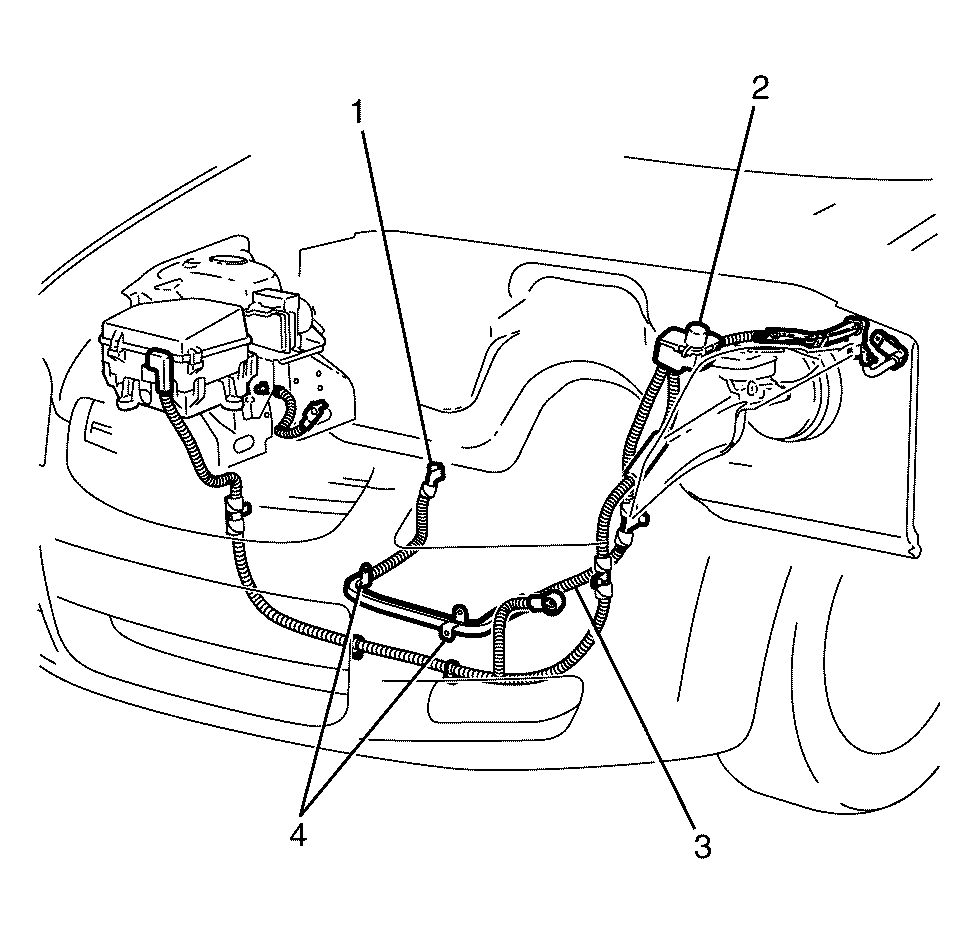

    Fig 1: Identifying Starter Battery Positive Cable To Starter Motor Retaining Bolt
    GM2074294Courtesy of GENERAL MOTORS CORP.
  1. Install the battery positive cable (3) to the engine compartment.

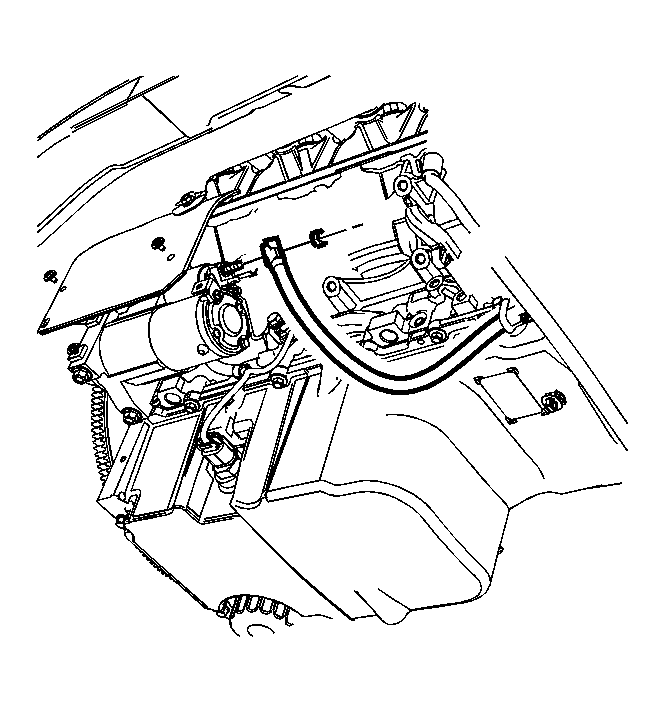

    2. Fig 2: Battery Positive Cable Nut
    GM2548442Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  2. Install the battery positive cable to the starter and tighten the nut to 10 N.m (89 lb in).
    3. Fig 3: Battery Positive Cable And Bolts
    GM2548441Courtesy of GENERAL MOTORS CORP.
  3. Install the battery positive cable to the engine block and tighten the harness retainer (1) to 12 N.m (9 lb ft).
  4. Tighten the nut/stud (2) to 9 N.m (80 lb in).

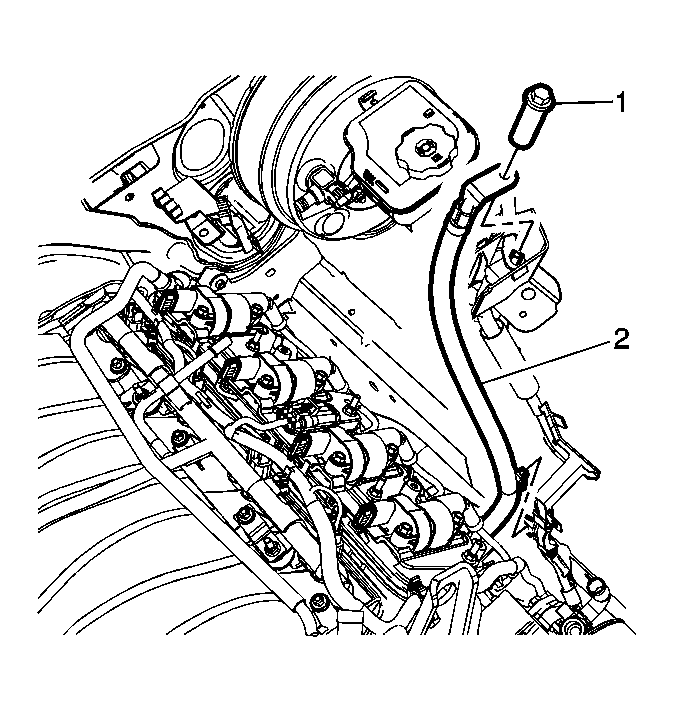

    5. Fig 4: Battery Positive Cable (Starter)
    GM2548440Courtesy of GENERAL MOTORS CORP.
  5. Install the battery positive cable (2) to the junction block and tighten the retainer (1) to 15 N.m (11 lb ft).
  6. Attach the junction block cover.
  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  8. Install the front air deflector. Refer to Front Air Deflector Replacement .
