Removal Procedure

    WARNING:

    Refer to Battery Disconnect Warning .

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  2. Remove the front air deflector. Refer to Front Air Deflector Replacement .
    3. Fig 1: Junction Block Retainer
    GM2548438Courtesy of GENERAL MOTORS CORP.
  3. Detach the junction block cover.
  4. Remove the junction block retainer (1) and detach the front battery positive cable (2).

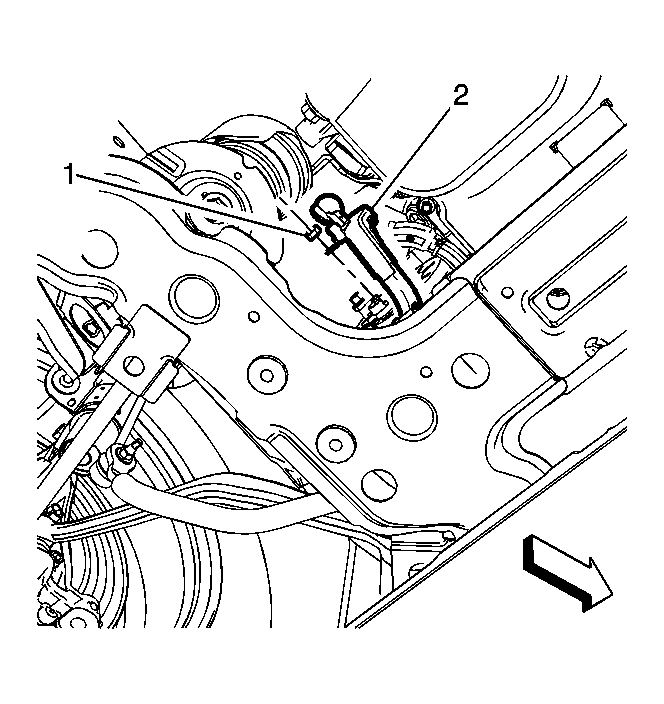

    5. Fig 2: Generator Nut
    GM2548437Courtesy of GENERAL MOTORS CORP.
  5. Remove the generator nut (1) and detach the front battery positive cable (2) from the generator.
    6. Fig 3: Battery Positive Cable
    GM2548435Courtesy of GENERAL MOTORS CORP.
  6. Detach the front battery positive cable (1) from the engine cradle and the right frame rail.
    7. Fig 4: Fuse Block Retaining Nut And Battery Positive Cable
    GM2548444Courtesy of GENERAL MOTORS CORP.
  7. Remove the fuse block cover.
  8. Remove the fuse block retaining nut (1) and remove the front battery positive cable (2).
    9. Fig 5: Battery Positive Cable
    GM2548451Courtesy of GENERAL MOTORS CORP.
  9. Remove the front battery positive cable (1) from the engine compartment.
