Installation Procedure

    Fig 1: Battery Positive Cable
    GM2548451Courtesy of GENERAL MOTORS CORP.
  1. Install the front battery positive cable (1) to the engine compartment.

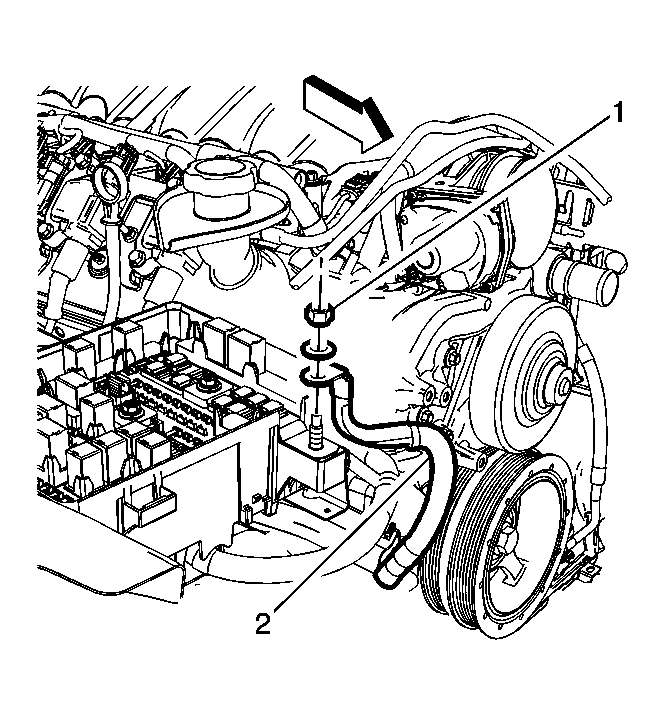

    2. Fig 2: Fuse Block Retaining Nut And Battery Positive Cable
    GM2548444Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  2. Install the front battery positive cable (2) to the fuse block and tighten the nut (1) to 10 N.m (89 lb in).

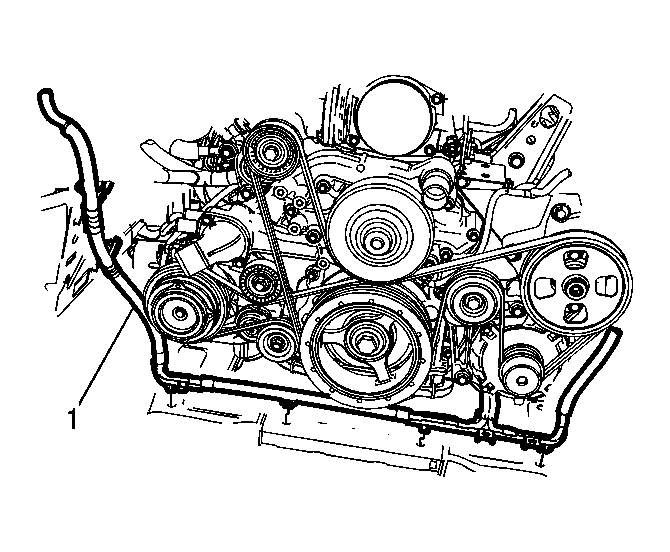

    3. Fig 3: Battery Positive Cable
    GM2548435Courtesy of GENERAL MOTORS CORP.
  3. Secure the front battery positive cable (1) to the right frame rail and the engine cradle.

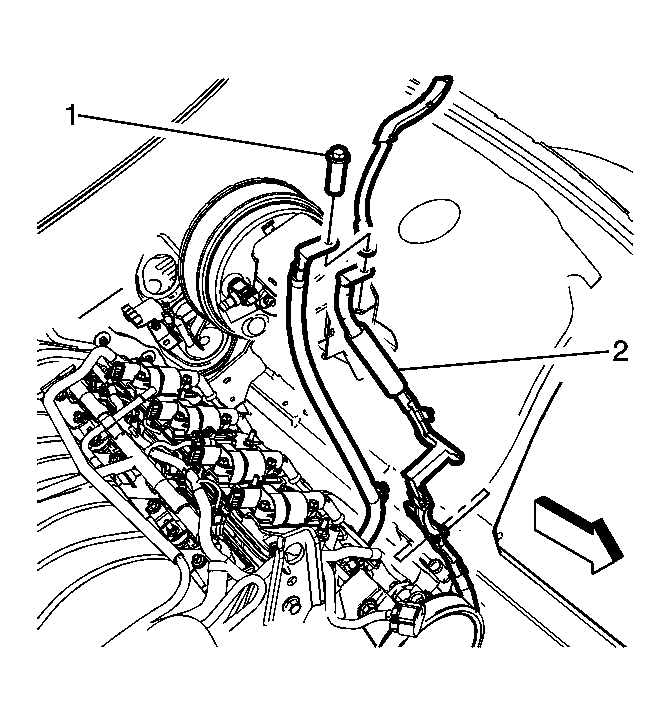

    4. Fig 4: Junction Block Retainer
    GM2548438Courtesy of GENERAL MOTORS CORP.
  4. Install the front battery positive cable (2) to the junction block and tighten the junction block retainer (1) to 15 N.m (11 lb ft).
  5. Attach the battery post and fuse block covers.
  6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  7. Install the front air deflector. Refer to Front Air Deflector Replacement .
