Removal Procedure

  1. Disconnect the primary negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  2. Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
  3. Remove the battery isolator cover.

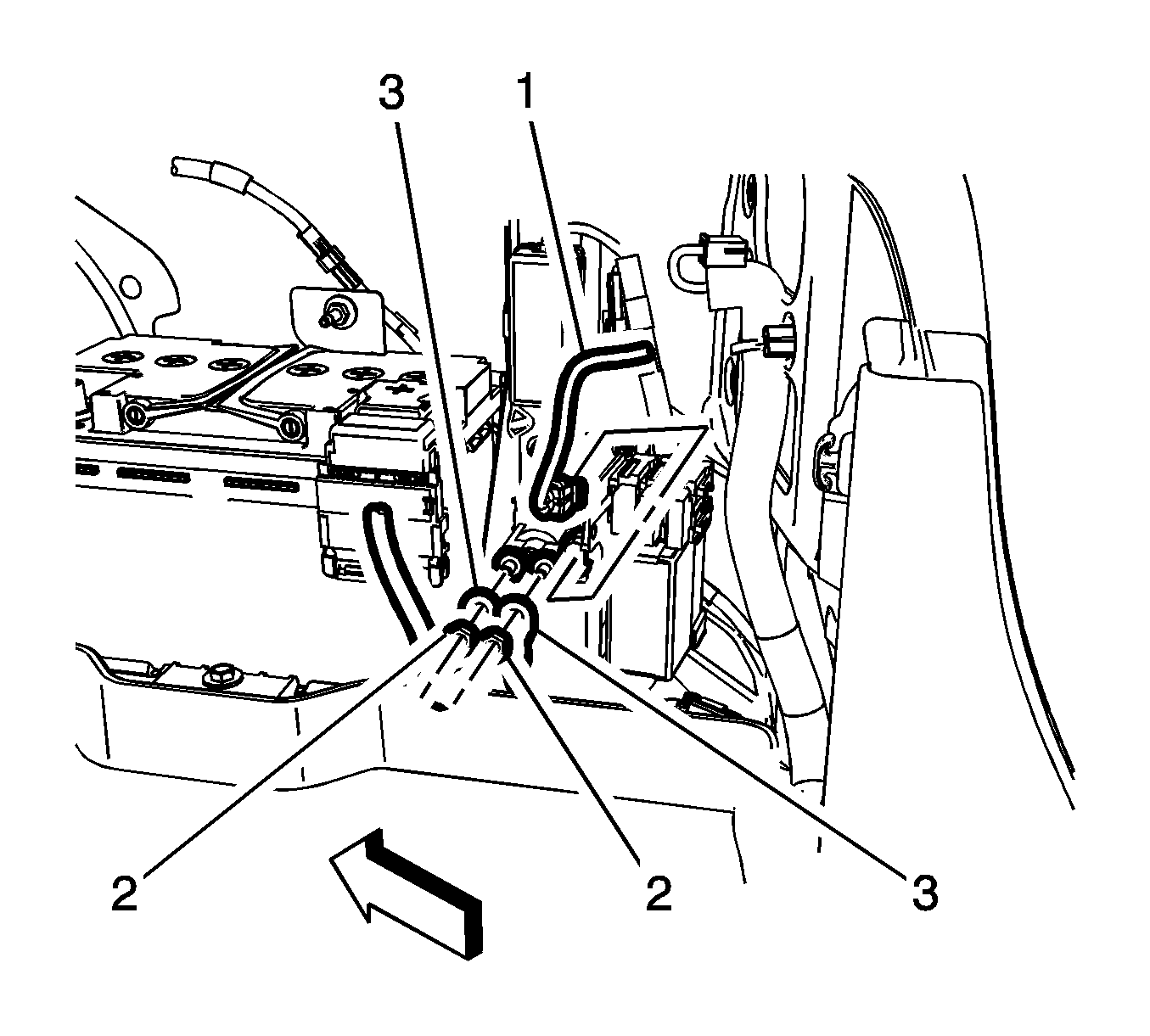

    4. Fig 1: Battery Isolator Terminal Nuts
    GM2548827Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the fuse block connector (1).
  5. Remove the battery isolator terminal nuts (2).
  6. Remove the battery isolator terminals (3) and the battery isolator cover.

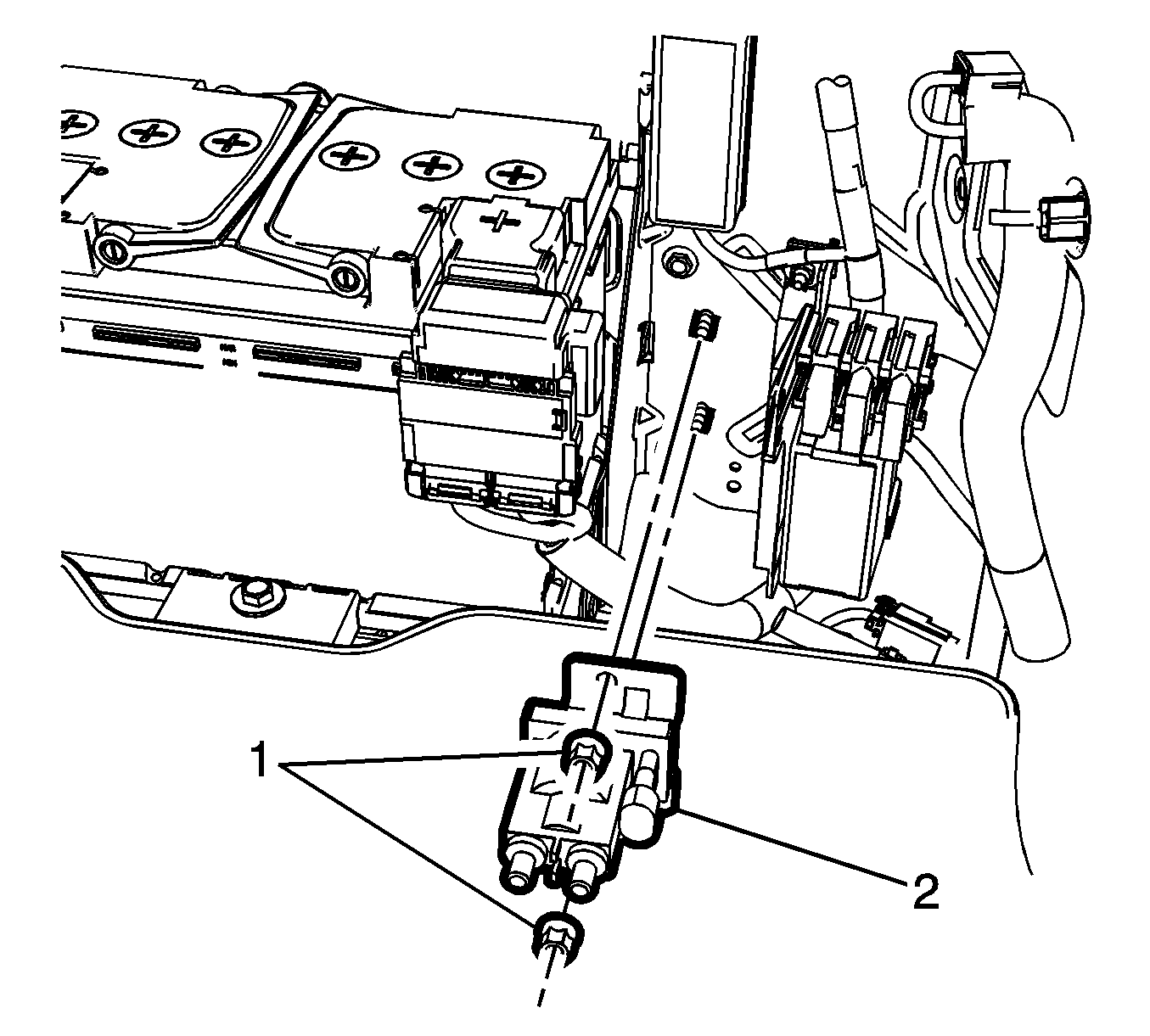

    7. Fig 2: Battery Isolator Mounting Nuts
    GM2548826Courtesy of GENERAL MOTORS CORP.
  7. Remove the battery isolator mounting nuts (1) and the battery isolator (2) from the rear compartment area.
