Power Mirror Switch Replacement (9C1)
Courtesy of GENERAL MOTORS CORP. Power Mirror Switch Replacement (9C1)

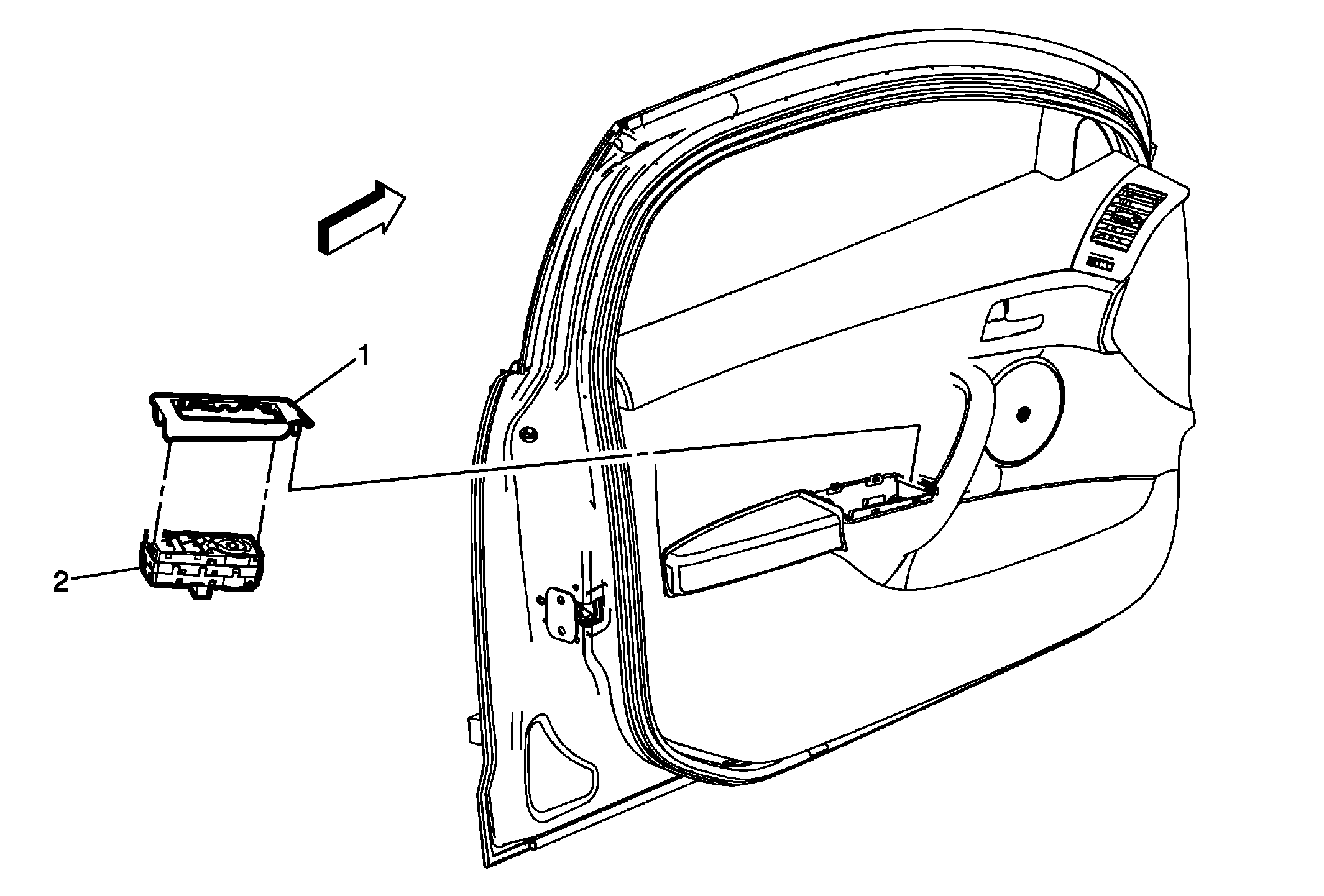

| Callout |
Component Name |
| 1 |
Power Mirror Switch Assembly Procedure
- Using a suitable tool disengage the front side door armrest switch mount plate bezel from the front side door trim panel.
- Disconnect the electrical connector. Refer to Control Module References
for programming and set up procedures.
- Separate the door lock and side window and outside rearview mirror remote control switch assembly from the bezel.
|
