Removal Procedure

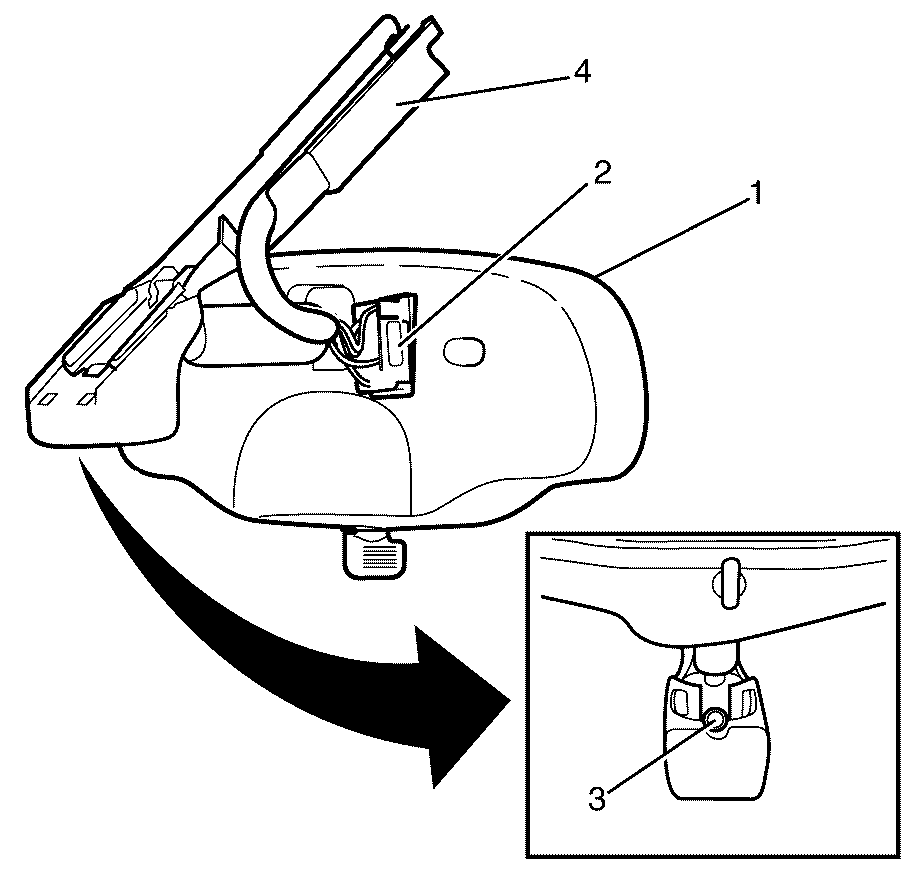

Fig 1: Identifying Rearview Mirror Assembly To Windscreen Retaining Plate Retaining Screw

Courtesy of GENERAL MOTORS CORP.

Detach the rearview mirror trim (4) from the headliner by gently sliding downward.
Disconnect the electrical connector (2) from the back of the rearview mirror (1).
Adjust the rearview mirror (1) to the full upright position.
At the rearview mirror assembly base, remove the rearview mirror assembly to windscreen retaining screw (3)

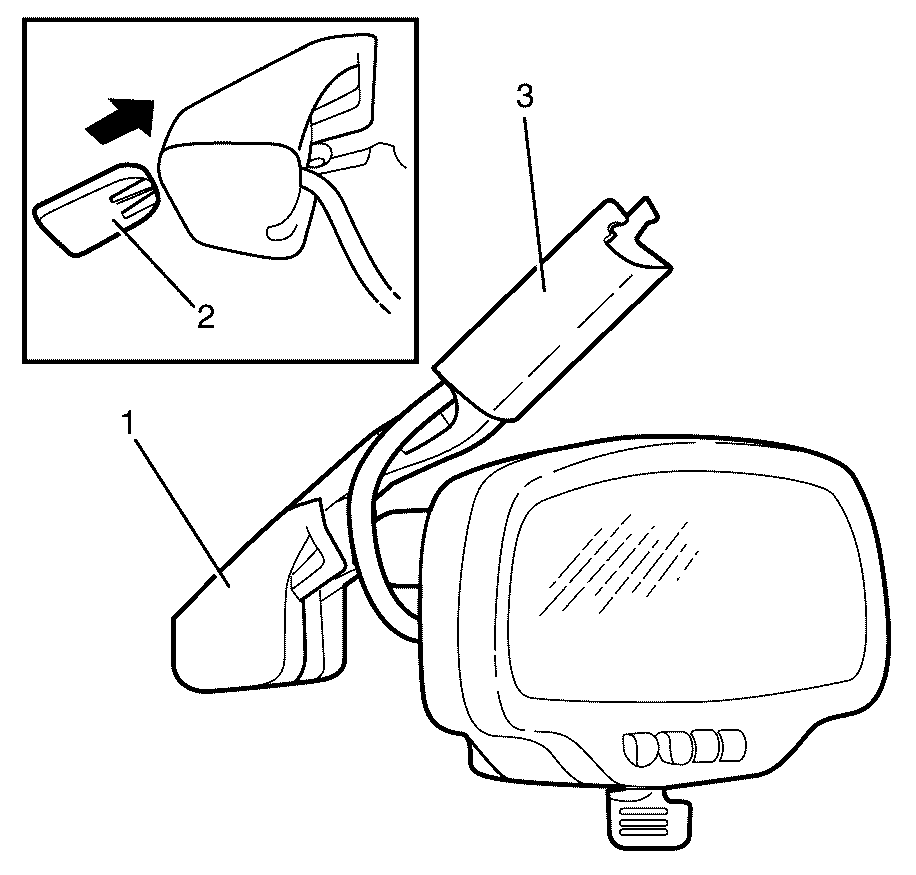

Fig 2: Identifying Rearview Mirror Assembly

Courtesy of GENERAL MOTORS CORP.

NOTE:

Slide the rearview mirror assembly (1) upward to remove from the retaining plate (2).
