Installation Procedure

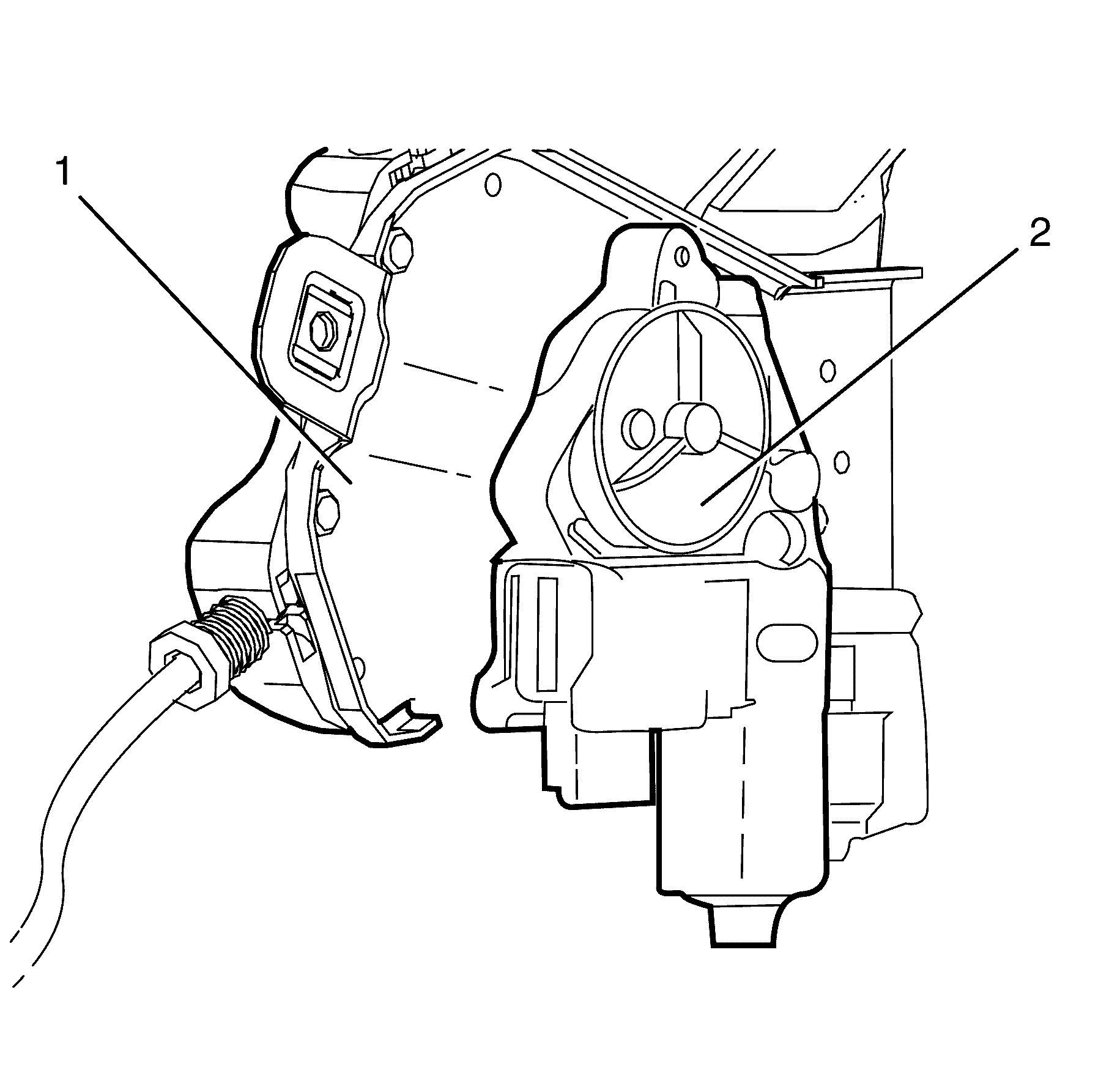

    Fig 1: Identifying Window Regulator & Motor
    GM1939951Courtesy of GENERAL MOTORS CORP.
  1. Position the window regulator motor (2) to the window regulator (1).

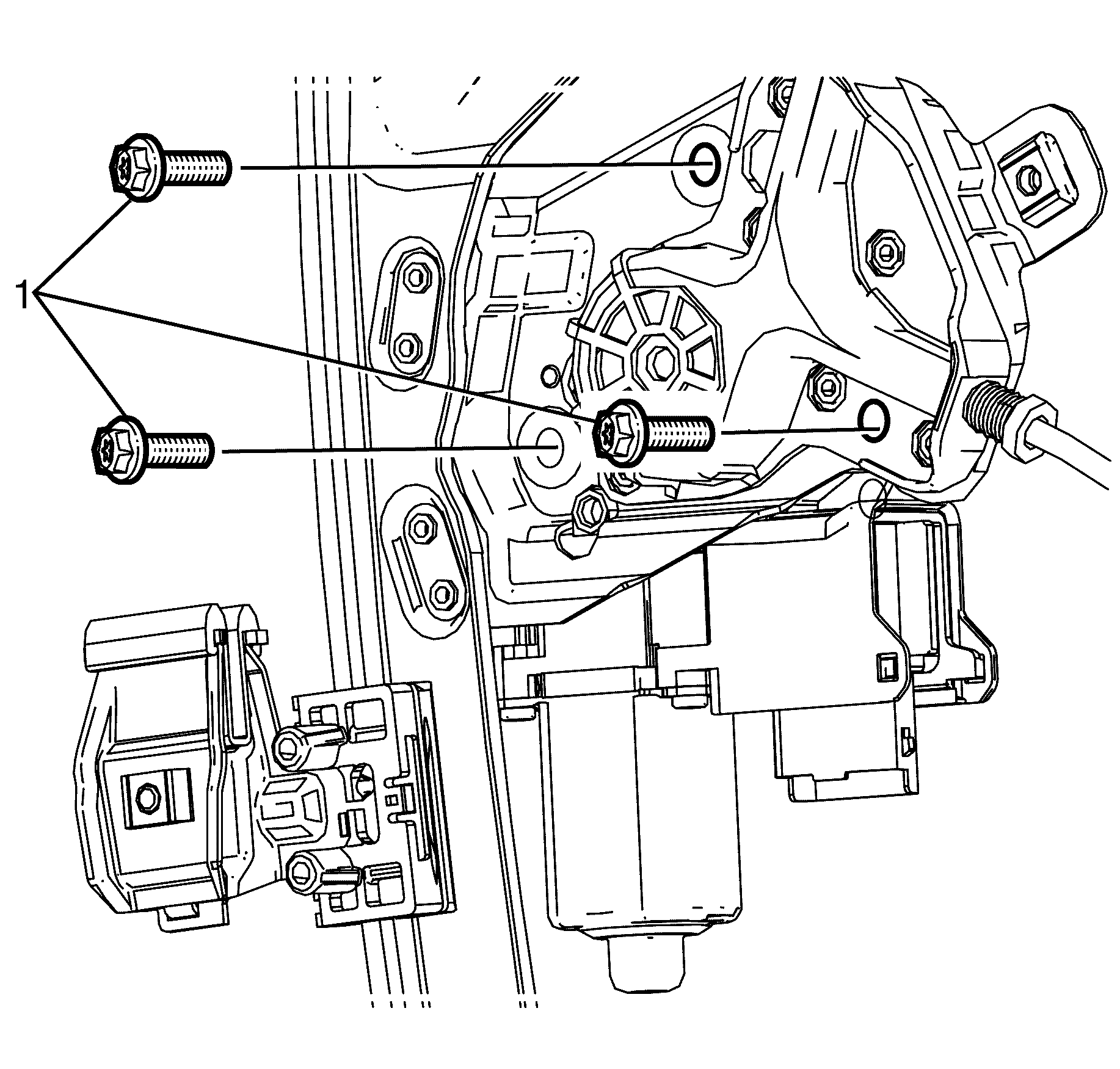

    2. Fig 2: Identifying Window Regulator Motor To Window Regulator Retaining Bolts
    GM1939950Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  2. Install the window regulator motor to window regulator retaining bolts (1) and tighten to 8 N.m (71 lb in).
  3. Install the window regulator. Refer to Front Side Door Window Regulator Replacement .
  4. Install the water deflector. Refer to Front Side Door Water Deflector Replacement .
  5. Install the speaker. Refer to Radio Front Side Door Lower Speaker Replacement .
