Installation Procedure

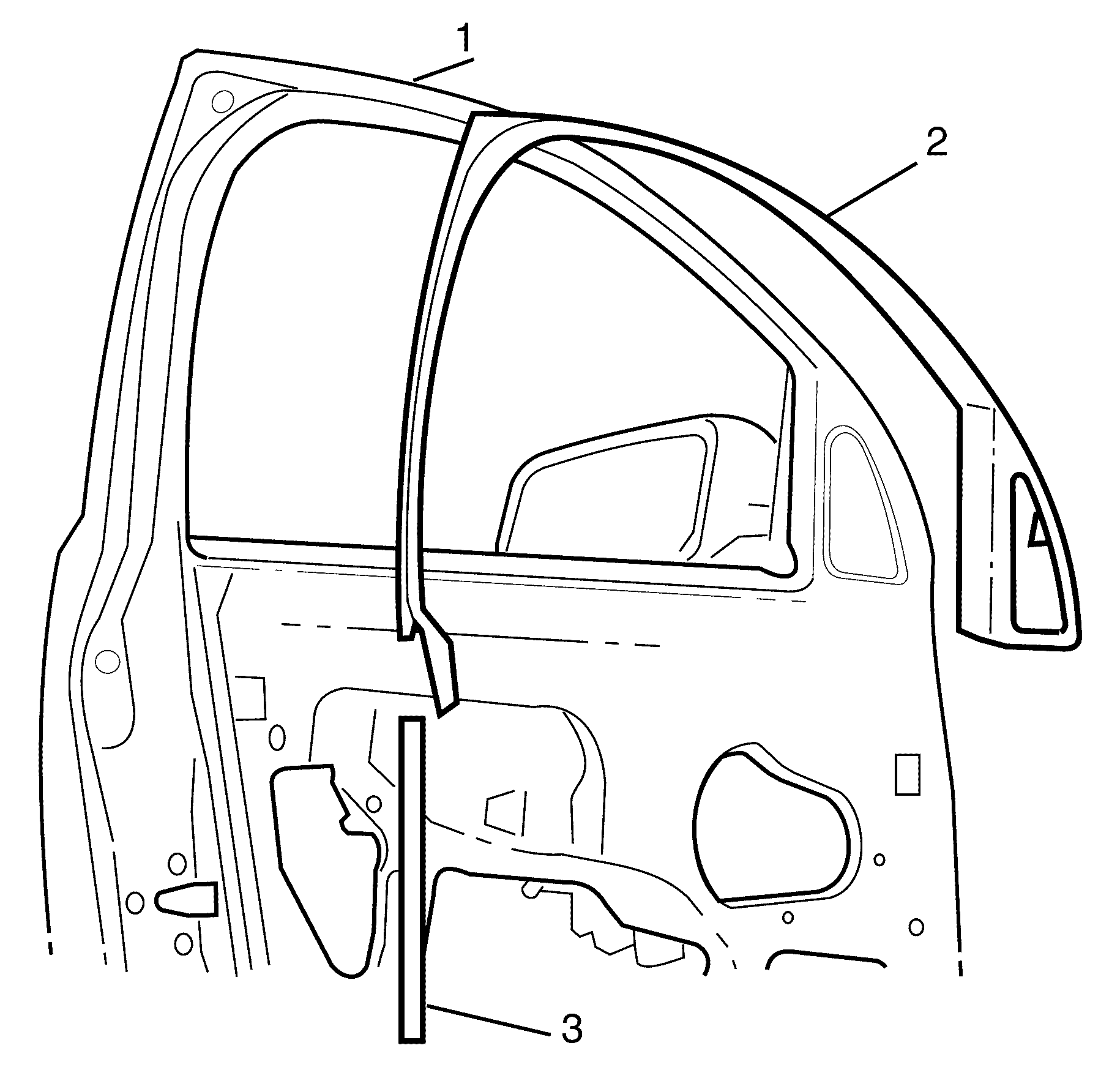

    Fig 1: View Of Inner Window Weatherstrip
    GM1939949Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:

    Locate the weatherstrip (2) at the datum located at the front first. Push the inner window weatherstrip (2) to attach the retainers.

  1. Install the inner window weatherstrip (2) to the door (1).
  2. Install the lower part of the inner window weatherstrip (3) to the door (1).
  3. Install the window inner sealing strip. Refer to Front Side Door Window Inner Sealing Strip Replacement .
  4. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
