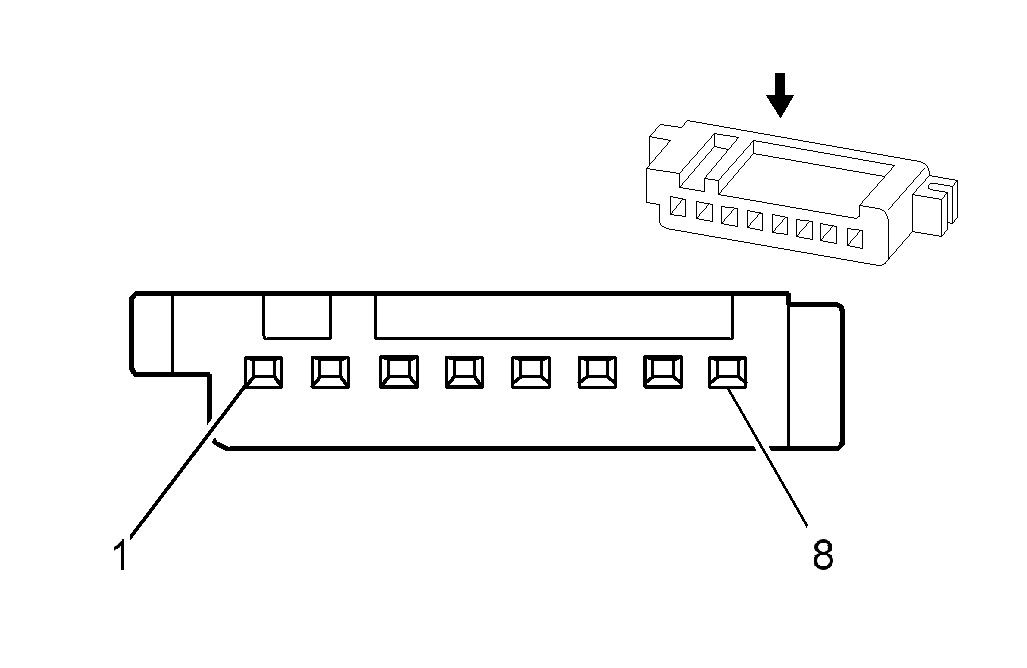

S48E Multi-Function Switch Module - Center Console (9C3)
Courtesy of GENERAL MOTORS CORP. S48E Multi-Function Switch Module - Center Console (9C3)
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
0.3 |
0.3 YE |
6817 |
LED Backlight Dimming Control |
- |
| 2 |
0.3 |
0.3 BK |
850 |
Ground |
- |
| 3 |
0.3 |
0.3 BN/OG |
1571 |
Traction Control Switch Signal |
- |
| 4 |
- |
- |
- |
Not Used |
- |
| 5 |
0.3 |
D-BU |
6189 |
Rear Compartment Relay Switch |
- |
| 6-8 |
- |
- |
- |
Not Used |
- |
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7283-8359
- Service Connector: 13585868
- Description: 8-Way F (WH)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-64B (L-BU)
|
