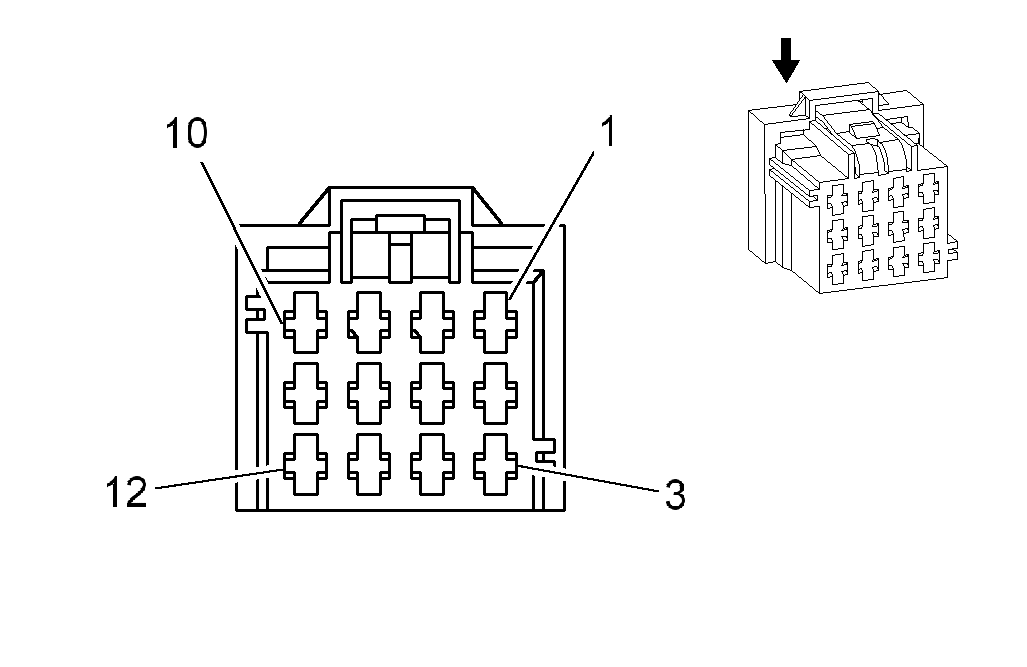

K90 Window Control Module
Courtesy of GENERAL MOTORS CORP. K90 Window Control Module
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
2 |
D-BU/WH |
666 |
Power Window Motor Right Front Up Control |
- |
| 2 |
2 |
BN/OG |
165 |
Power Window Motor Left Front Down Control |
- |
| 3 |
0.5 |
L-BU |
166 |
Power Window Master Switch Right Front Up Signal |
- |
| 4 |
- |
- |
- |
Not Used |
- |
| 5 |
2 |
BK |
1350 |
Ground |
- |
| 6 |
0.5 |
BN |
1300 |
Power Window Master Switch Left Front Up Signal |
- |
| 7 |
- |
- |
- |
Not Used |
- |
| 8 |
2 |
D-GN |
1001 |
RAP Supply Voltage |
- |
| 9 |
0.5 |
D-GN/BK |
167 |
Power Window Master Switch Right Front Down Signal |
- |
| 10 |
2 |
BN |
667 |
Power Window Motor Right Front Down Control |
- |
| 11 |
2 |
D-BU |
164 |
Power Window Motor Left Front Up Control |
- |
| 12 |
0.5 |
GY/D-BU |
1136 |
Power Window Master Switch Left Front Down Control Signal |
- |
Connector Part Information
- Harness Type: Body
- OEM Connector: 7283-4417-60
- Service Connector: 13577343
- Description: 12-Way F (GN)
|
Terminal Part Information
- Terminal/Tray: 7116-4156-02
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
