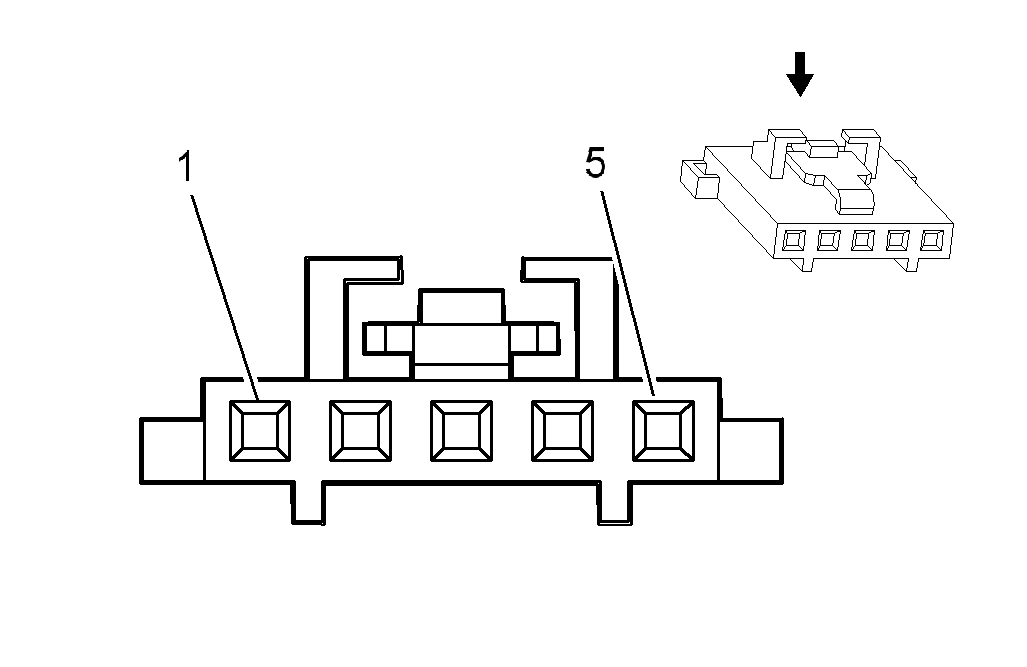

K89 Immobilizer Control Module
Courtesy of GENERAL MOTORS CORP. K89 Immobilizer Control Module
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
0.3 |
OG/BK |
1040 |
Battery Positive Voltage |
- |
| 2 |
0.3 |
BN |
4 |
Ignition 1 Voltage |
- |
| 3 |
0.3 |
BK |
850 |
Ground |
- |
| 4 |
- |
- |
- |
Not Used |
- |
| 5 |
0.35 |
D-GN |
5060 |
Low Speed GMLAN Serial Data |
- |
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7183-2179-30
- Service Connector: 88988353
- Description: 5-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: 16-02-1110/20
- Core/Insulation Crimp: H/H
- Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)
|
