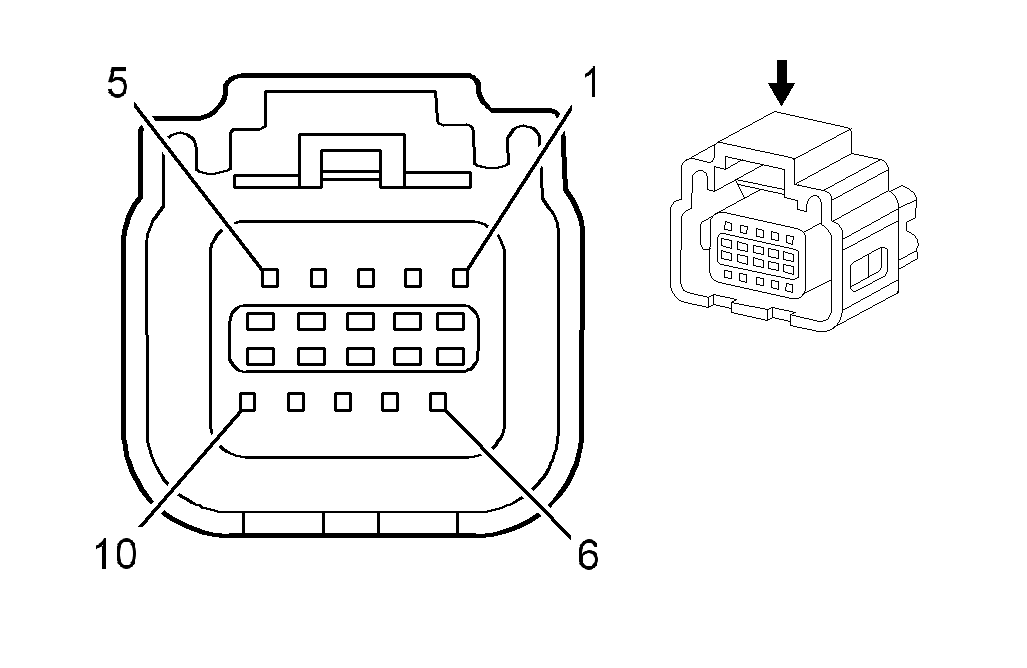

K85 Passenger Presence Detection Module
Connector Part Information
- Harness Type: Body
- OEM Connector :28032115
- Service Connector: Service by Harness
- Description: 10-Way F
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: Not Available
- Diagnostic Test Probe: Pending
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
|
K85 Passenger Presence Detection Module
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
0.5 |
WH/PK |
3940 |
Battery Positive Voltage |
- |
| 2 |
0.5 |
BK/GY |
1751 |
Signal Ground |
- |
| 3 |
- |
- |
- |
Not Used |
- |
| 4 |
0.5 |
GN/BN |
5060 |
Low Speed GMLAN Serial Data |
- |
| 5-10 |
- |
- |
- |
Not Used |
- |
