K9 Body Control Module X6

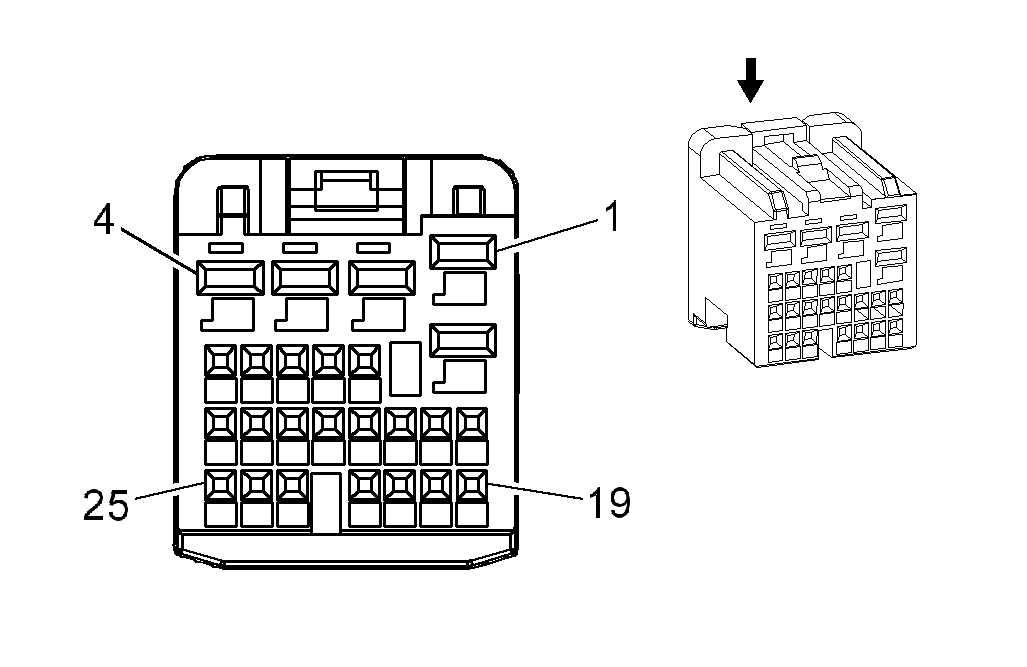

Fig 1: Body Control Module (BCM) X6 Connector End View
GM1989640Courtesy of GENERAL MOTORS CORP.
K9 Body Control Module X6

Pin Size Color Circuit Function Option
1 - - - Not Used -
2 1.25 L-BU 20 Stop Lamp Supply Voltage -
3-7 - - - Not Used -
8 0.3 0.3 BN/WH 746 Passenger Door Ajar Switch Signal -
9 - - - Not Used -
10 0.3 0.3 GY/BK 745 Driver Door Ajar Switch Signal -
11-19 - - - Not Used -
20 0.3 0.3 PK 781 Driver Door Lock Switch Unlock Signal -
21 - - - Not Used -
22 0.3 0.3 OG/BK 744 Rear Compartment Ajar Switch Signal -
23 0.3 0.3 PK/BK 780 Driver Door Lock Switch Lock Signal -
24-25 - - - Not Used -
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 7283-1376-50
  • Service Connector: 88988842
  • Description: 25-Way F (PK)
 Terminal Part Information
  • Terminal/Tray: 7116-3645-02
  • Terminal/Tray: 7116-3427-02
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
