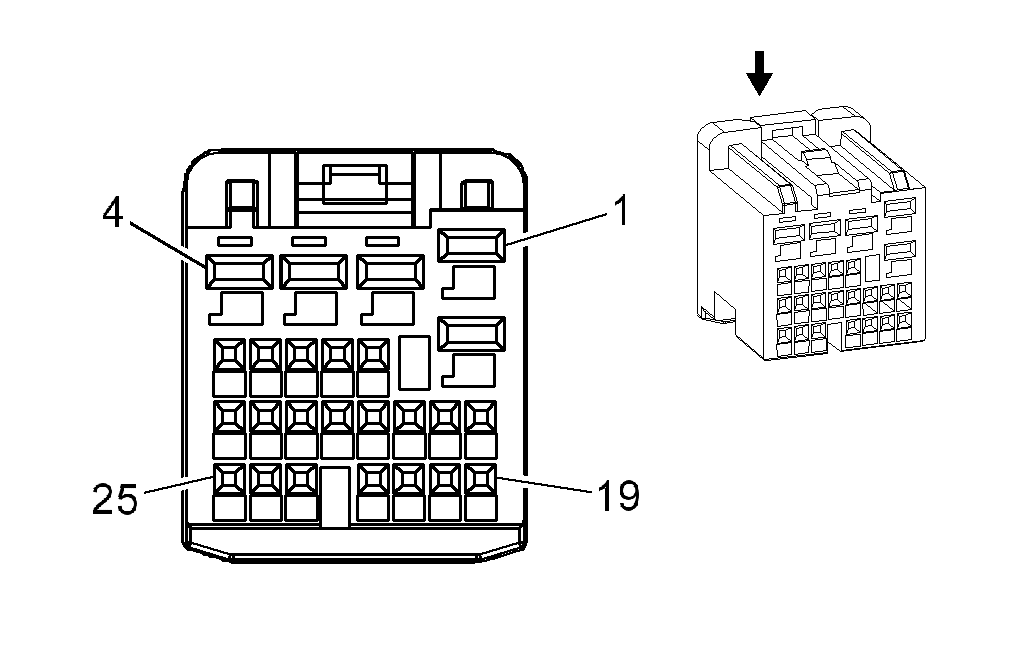

K9 Body Control Module X5
Courtesy of GENERAL MOTORS CORP. K9 Body Control Module X5
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
0.85 |
YE |
18 |
Left Rear Turn Signal Lamp Supply Voltage |
- |
| 2 |
0.85 |
D-GN |
19 |
Right Rear Turn Signal Lamp Supply Voltage |
- |
| 3 |
- |
- |
- |
Not Used |
- |
| 4 |
0.75 |
L-BU/WH |
1314 |
Left Front Turn Signal Lamp Supply |
- |
| 5 |
- |
- |
- |
Not Used |
- |
| 6 |
0.5 |
WH/D-BU |
17 |
Stop Lamp Switch Signal |
- |
| 7 |
- |
- |
- |
Not Used |
- |
| 8 |
0.3 |
PK |
5076 |
5-Volt Reference |
- |
| 9 |
0.3 |
WH/D-GN |
5075 |
Battery Current Signal |
- |
| 10 |
0.3 |
BN |
5077 |
Low Reference |
- |
| 11 |
0.3 |
BN/YE |
707 |
RAP Relay Coil Supply Voltage |
- |
| 12 |
- |
- |
- |
Not Used |
- |
| 13 |
0.5 |
BN |
341 |
Ignition Voltage |
- |
| 14 |
0.3 |
YE |
43 |
Accessory Power Relay Control |
- |
| 15 |
0.3 |
PU |
5531 |
Hood Closed Switch Signal |
- |
| 16 |
0.5 |
OG/BK |
233 |
Park Brake Switch Signal |
- |
| 17 |
- |
- |
- |
Not Used |
- |
| 18 |
0.3 |
BN/BK |
28 |
Horn Relay Control |
- |
| 19 |
0.5 |
YE/BK |
5810 |
Park Enable Signal |
9C1/9C3 |
| 20 |
0.3 |
GY |
91 |
Windshield Wiper Switch Signal 2 |
- |
| 21 |
0.3 |
BN/RD |
860 |
Front Windshield Wiper Switch High Signal |
- |
| 22 |
- |
- |
- |
Not Used |
- |
| 23 |
0.3 |
PK/WH |
1970 |
Headlamp Low Beam Relay Control |
- |
| 24 |
0.3 |
WH/YE |
1080 |
Park Lamp Relay Control |
- |
| 25 |
- |
- |
- |
Not Used |
- |
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7283-1377-80
- Service Connector: 88988837
- Description: 25-Way F (BN)
|
Terminal Part Information
- Terminal/Tray: 7116-3645-02
- Terminal/Tray: 7116-3427-02
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
