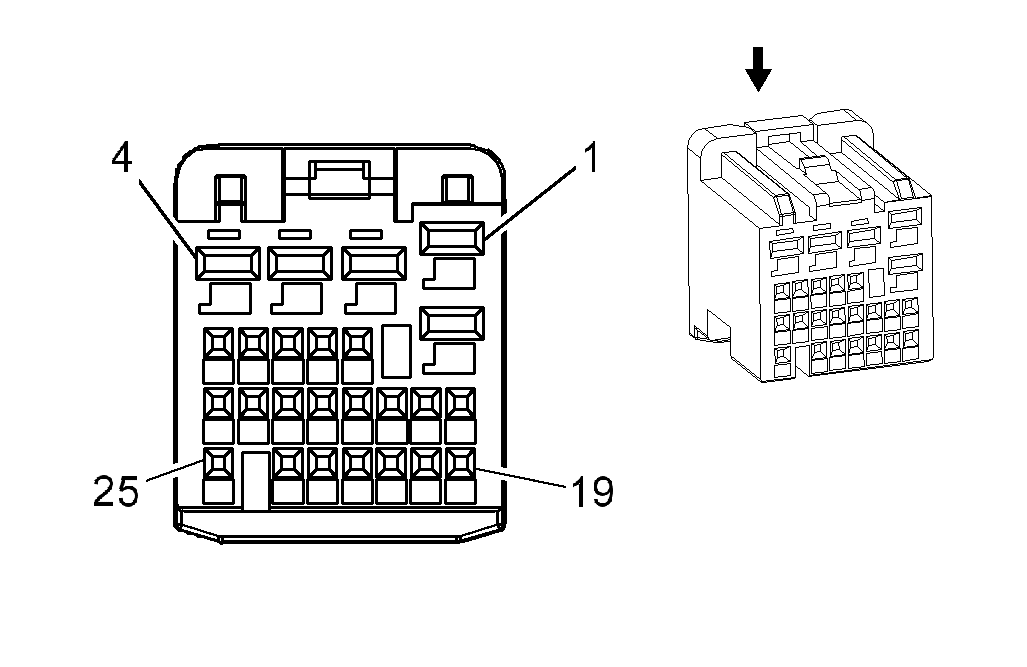

K9 Body Control Module X4
Courtesy of GENERAL MOTORS CORP. K9 Body Control Module X4
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
0.85 |
OG/RD |
340 |
Battery Positive Voltage |
- |
| 2 |
0.85 |
OG |
240 |
Battery Positive Voltage |
- |
| 3 |
0.85 |
OG/D-GN |
440 |
Battery Positive Voltage |
- |
| 4 |
0.85 |
OG/PU |
2140 |
Battery Positive Voltage |
- |
| 5 |
0.75 |
D-BU/WH |
1315 |
Right Front Turn Signal Lamp Supply Voltage |
- |
| 6 |
- |
- |
- |
Not Used |
- |
| 7 |
0.3 |
YE |
196 |
Windshield Wiper Motor Park Switch Signal |
- |
| 8 |
- |
- |
- |
Not Used |
- |
| 9 |
0.3 |
BK |
1850 |
Ground |
- |
| |
| 10 |
0.3 |
OG/D-BU |
2440 |
Battery Positive Voltage |
- |
| 11-14 |
- |
- |
- |
Not Used |
- |
| 15 |
0.5 |
OG |
2268 |
Washer Fluid Pump Relay Control |
- |
| 16 |
0.3 |
BN/YE |
1969 |
Headlamp High Beam Relay Control |
- |
| 17 |
0.3 |
PK/BK |
109 |
Hood Ajar Switch Signal |
- |
| 18 |
- |
- |
- |
Not Used |
- |
| 19 |
0.3 |
D-BU |
5985 |
Accessory Wakeup Serial Data |
- |
| 20 |
- |
- |
- |
Not Used |
- |
| 21 |
0.3 |
PK |
1439 |
Run/Crank Control |
- |
| 22 |
0.3 |
BN |
253 |
Trunk Release Relay Control |
- |
| 23 |
0.3 |
PU |
544 |
DRL Relay Control |
VVQ |
| 24 |
0.3 |
D-GN |
646 |
Backup Lamp Relay Control |
- |
| 25 |
- |
- |
- |
Not Used |
- |
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7283-1375-30
- Service Connector: 88988841
- Description: 25-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: 7116-3645-02
- Terminal/Tray: 7116-3427-02
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
