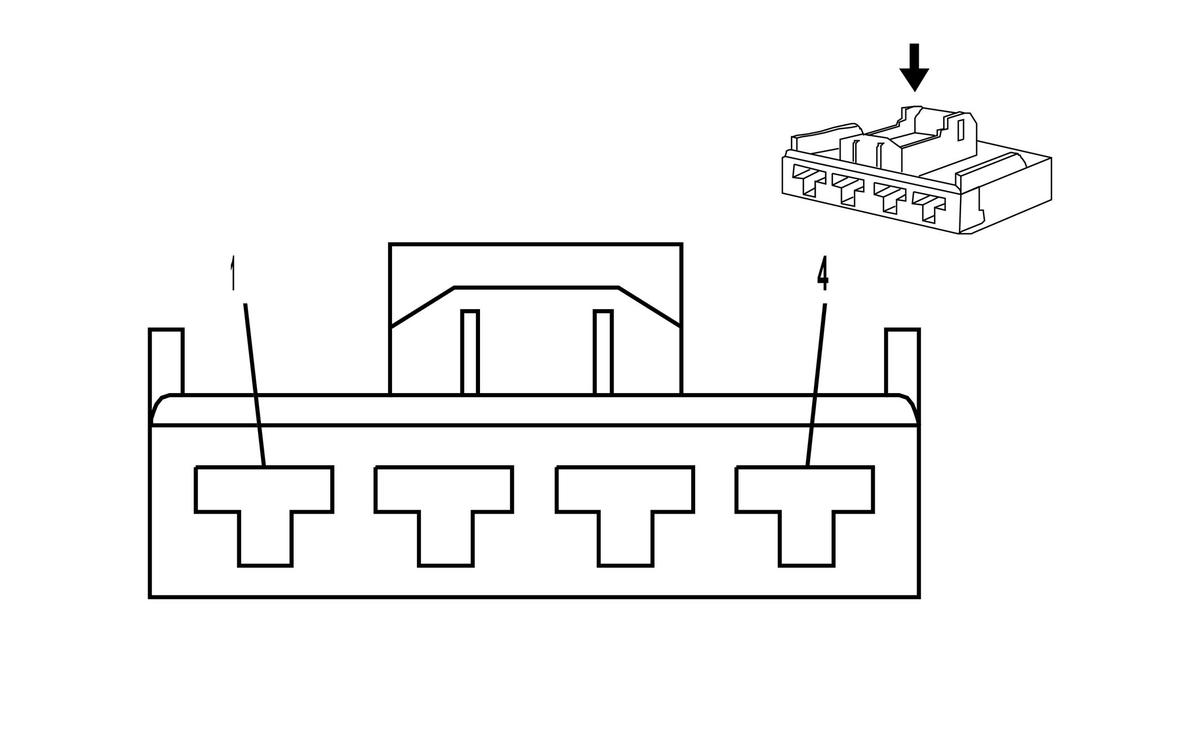

K8 Blower Motor Control Module
Courtesy of GENERAL MOTORS CORP. K8 Blower Motor Control Module
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
3 |
BK |
850 |
Ground |
- |
| 2 |
0.5 |
GY/BK |
754 |
Blower Motor Speed Control |
- |
| 3 |
3 |
PU |
65 |
Blower Motor Supply Voltage |
- |
| 4 |
3 |
OG |
5987 |
Blower Motor Low Reference |
- |
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7283-3141-30
- Service Connector: 88988396
- Description: 4-Way F (BK)
|
Terminal Part Information
- Pins: 1, 3, 4
- Terminal/Tray: 7116-6041/11
- Core/Insulation Crimp: A/B
- Release Tool/Test Probe: 12094430/J-35616-44 (YE)
- Pin: 2
- Terminal/Tray: 7116-6040
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
