K17 Electronic Brake Control Module

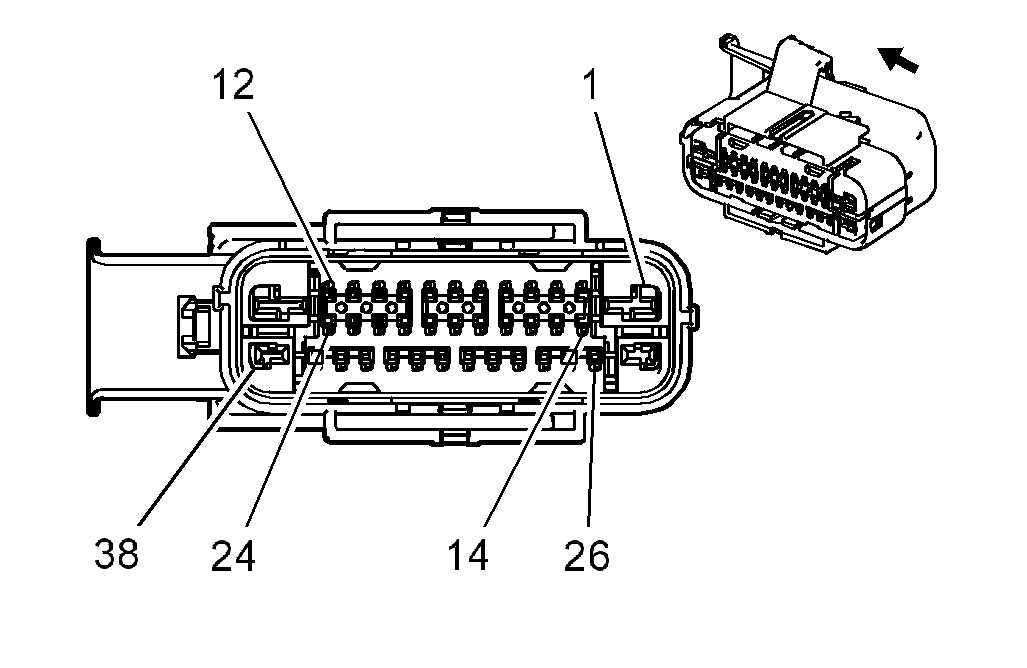

Fig 1: Electronic Brake Control Module Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Size	Color	Circuit	Function	Option
1	3	RD/BK	142	Battery Positive Voltage	-
2-5	-	-	-	Not Used	-
6	0.5	D-GN	872	Wheel Speed Sensor Signal Right Front	-
7-10	-	-	-	Not Used	-
11	0.5	OG	381	Vehicle Speed Signal	-
12	-	-	-	Not Used	-
13	3	BK	350	Ground	-
14	0.5	BN	2501	High Speed GMLAN Serial Data Bus-	-
15	0.5	BN	2501	High Speed GMLAN Serial Data Bus-	-
16-17	-	-	-	Not Used	-
18	0.5	GY	7065	Wheel Speed Sensor Supply Voltage Right Front	-
19	0.5	GY	7128	Wheel Speed Sensor Supply Voltage Right Rear	-
20	0.5	BN/BK	884	Left Rear Wheel Speed Sensor Signal	-
21	0.5	GY	7064	Wheel Speed Sensor Supply Voltage Left Front	-
22-23	-	-	-	Not Used	-
24	0.5	L-BU	6106	High Speed GMLAN Serial Data (-)	-
25	2	OG	3540	Battery Positive Voltage	-
26	0.5	BN/BK	2500	High Speed GMLAN Serial Data Bus+	-
27	0.5	BN/BK	2500	High Speed GMLAN Serial Data Bus+	-
28-30	-	-	-	Not Used	-
31	0.5	BN	882	Right Rear Wheel Speed Sensor Signal	-
32	0.5	D-GN	2087	Steering Wheel Position Sensor 5-V Reference	-
33	0.5	GY	7127	Wheel Speed Sensor Supply Voltage Left Rear	-
34	0.5	L-BU	830	Left Front Wheel Speed Sensor Signal	-
35	0.75	L-BU	5986	Communication Enable Relay Supply Voltage	-
36	-	-	-	Not Used	-
37	0.5	D-BU	6105	High Speed GMLAN Serial Data (+)	-
38	3	BK	350	Ground	-

Connector Part Information

Terminal Part Information
