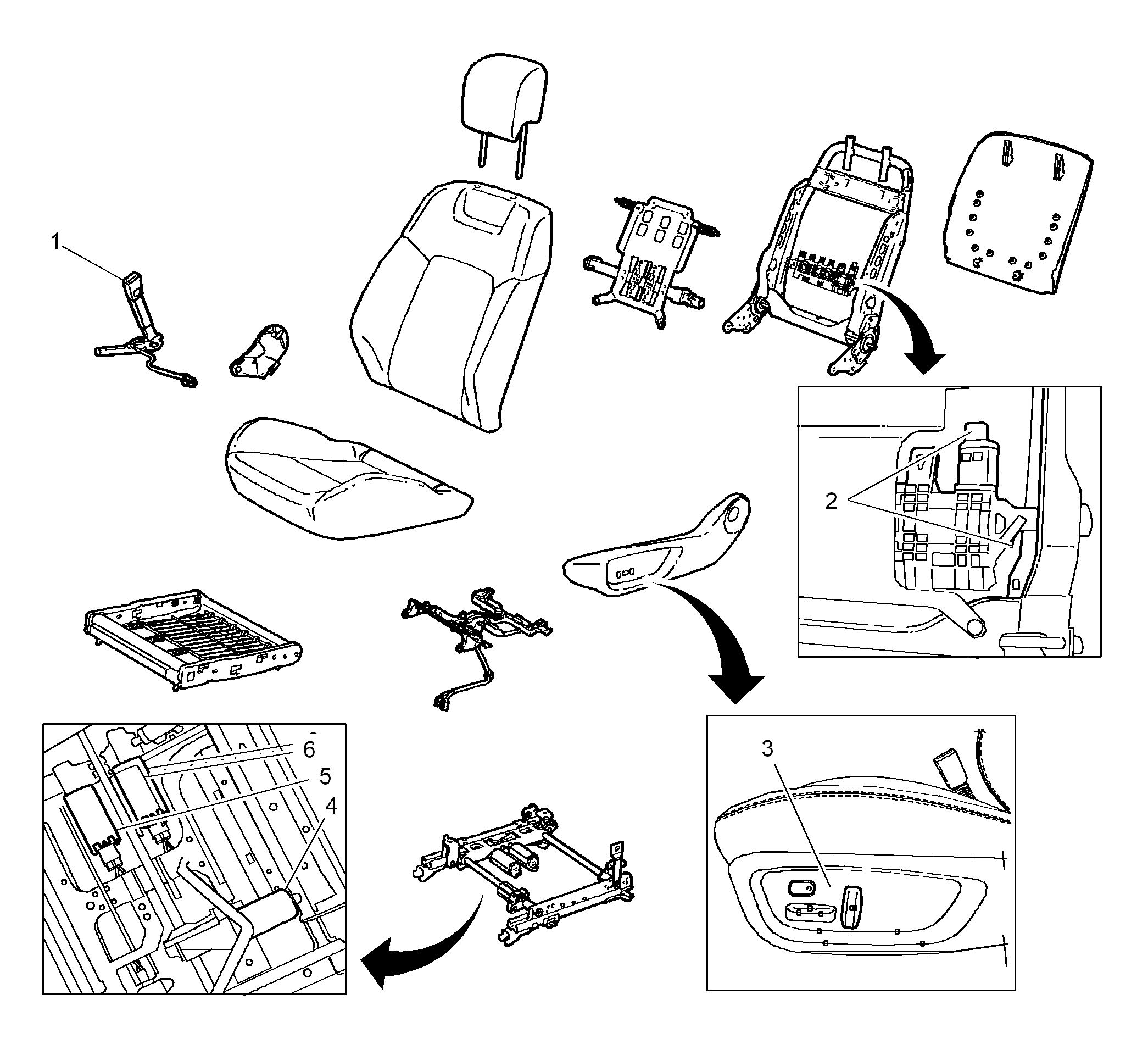

Power Seats Components View
Power Seats Components View
| Component Name | Callout |
|---|---|
| Seat Belt Buckle | 1 |
| Front Seat Cushion Inner Trim Panel | 2 |
| Front Seat Back Cover Pad | 3 |
| Front Seat Head Restraint | 4 |
| Lumber Adjuster Support | 5 |
| Front Seat Back Frame | 6 |
| M53D Seat Lumbar Support Motor - Driver | 6a |
| Front Seat Back Trim | 7 |
| Front Seat Adjuster | 8 |
| M55D Seat Rear Vertical Motor - Driver | 8a |
| M50D Seat Front Vertical Motor - Driver | 8b |
| M56D Seat Recline Motor - Driver | 8c |
| Front Seat Cushion Outer Trim Panel | 9 |
| S64D Seat Adjuster Switch - Driver | 9a |
| Front Seat Cable Tray | 10 |
| Front Seat Cushion Pad Frame | 11 |
| Front Seat Cushion Pad | 12 |
