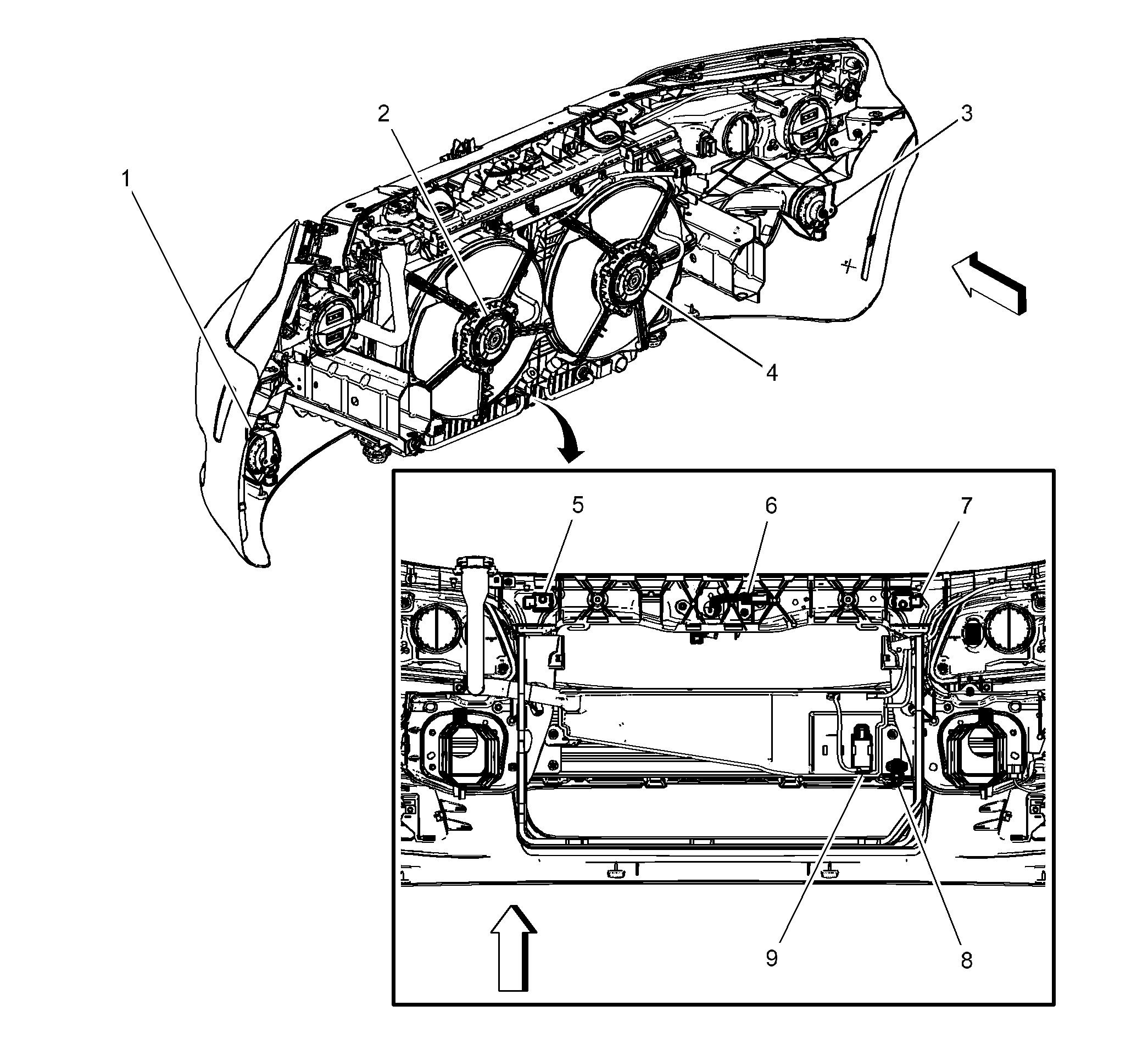

Front of Engine Compartment Components
Front of Engine Compartment Components
| Component Name | Callout |
|---|---|
| P12L Horn - Left | 1 |
| G10L Cooling Fan Motor - Left | 2 |
| P12R Horn - Right | 3 |
| G10R Cooling Fan Motor - Right | 4 |
| B59L Front Impact Sensor - Left | 5 |
| B55 Hood Ajar Switch | 6 |
| B59R Front Impact Sensor - Right | 7 |
| B9 Ambient Air Temperature Sensor | 8 |
| G24 Windshield Washer Pump | 9 |
