Electrical Component Locator - Passenger Compartment/Roof Component Views
>>
Passenger Compartment/Roof Component Views
>>
Headliner Components
Headliner Components
Headliner Components
Component Name
Callout
E36AH Dome Lamp
1
E8S Rear Compartment Courtesy Lamp
2
E6 Center High Mounted Stop Lamp
3
A10 Inside Rearview Mirror
4

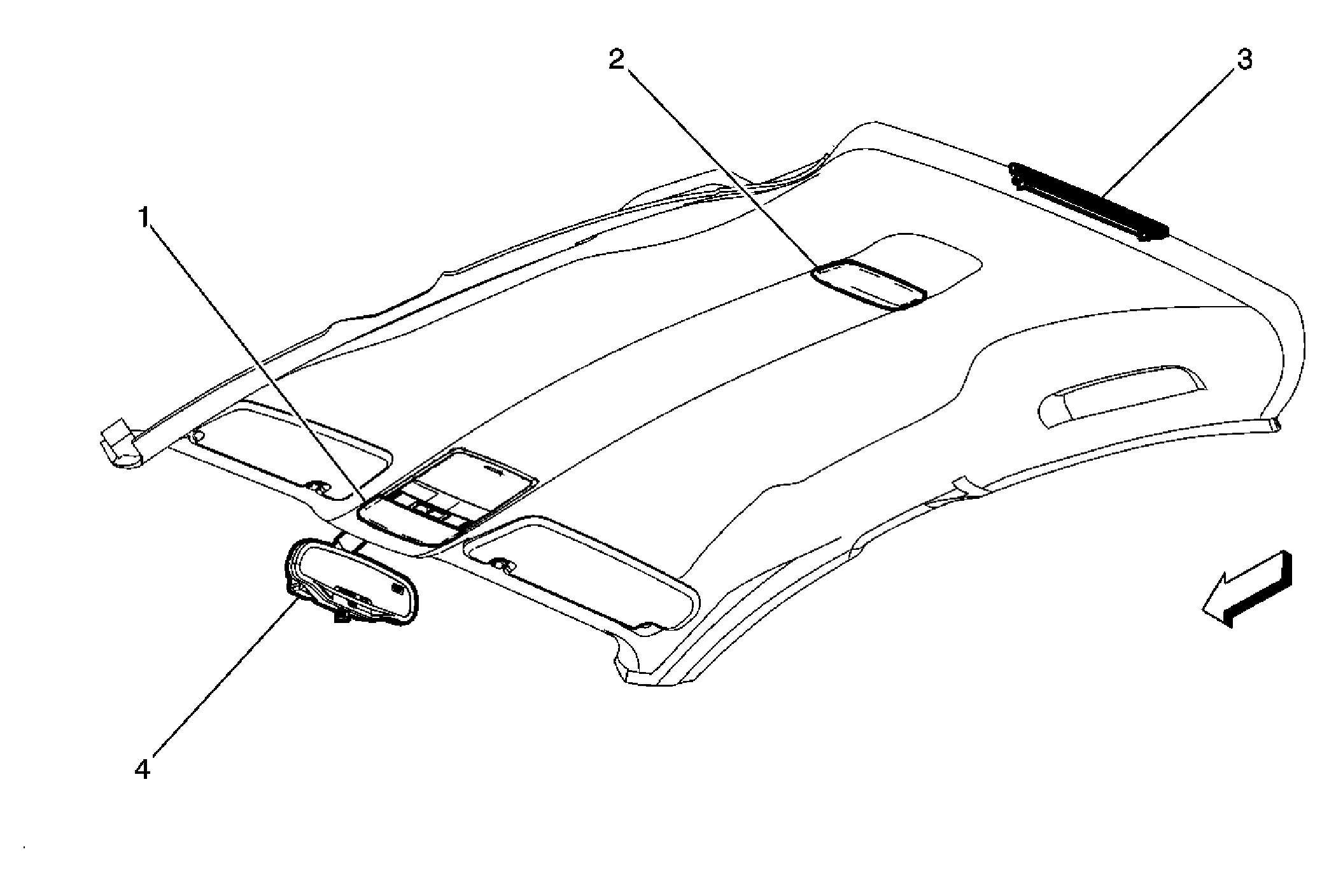

Fig 1: Headliner Components
Courtesy of GENERAL MOTORS CORP.
