Electrical Component Locator - Instrument Panel/Center Console Component Views
>>
Instrument Panel/Center Console Component Views
>>
Behind the Instrument Panel Components
Behind the Instrument Panel Components
Behind the Instrument Panel Components
Component Name
Callout
F105 Passenger Instrument Panel Air Bag
1
K9 Body Control Module
2
A11 Radio
3

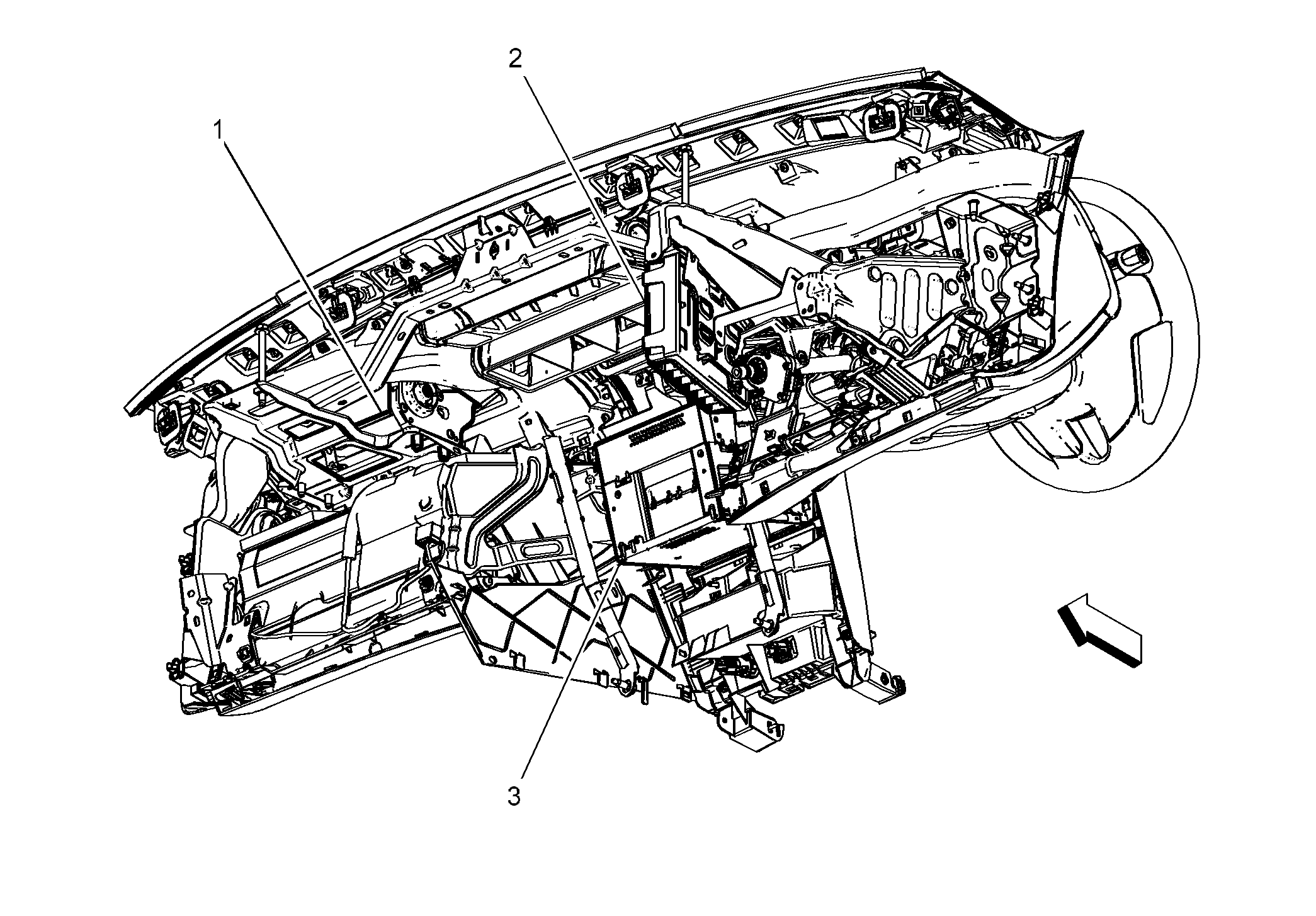

Fig 1: Behind Instrument Panel Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
