Windshield Wiper System Module Replacement

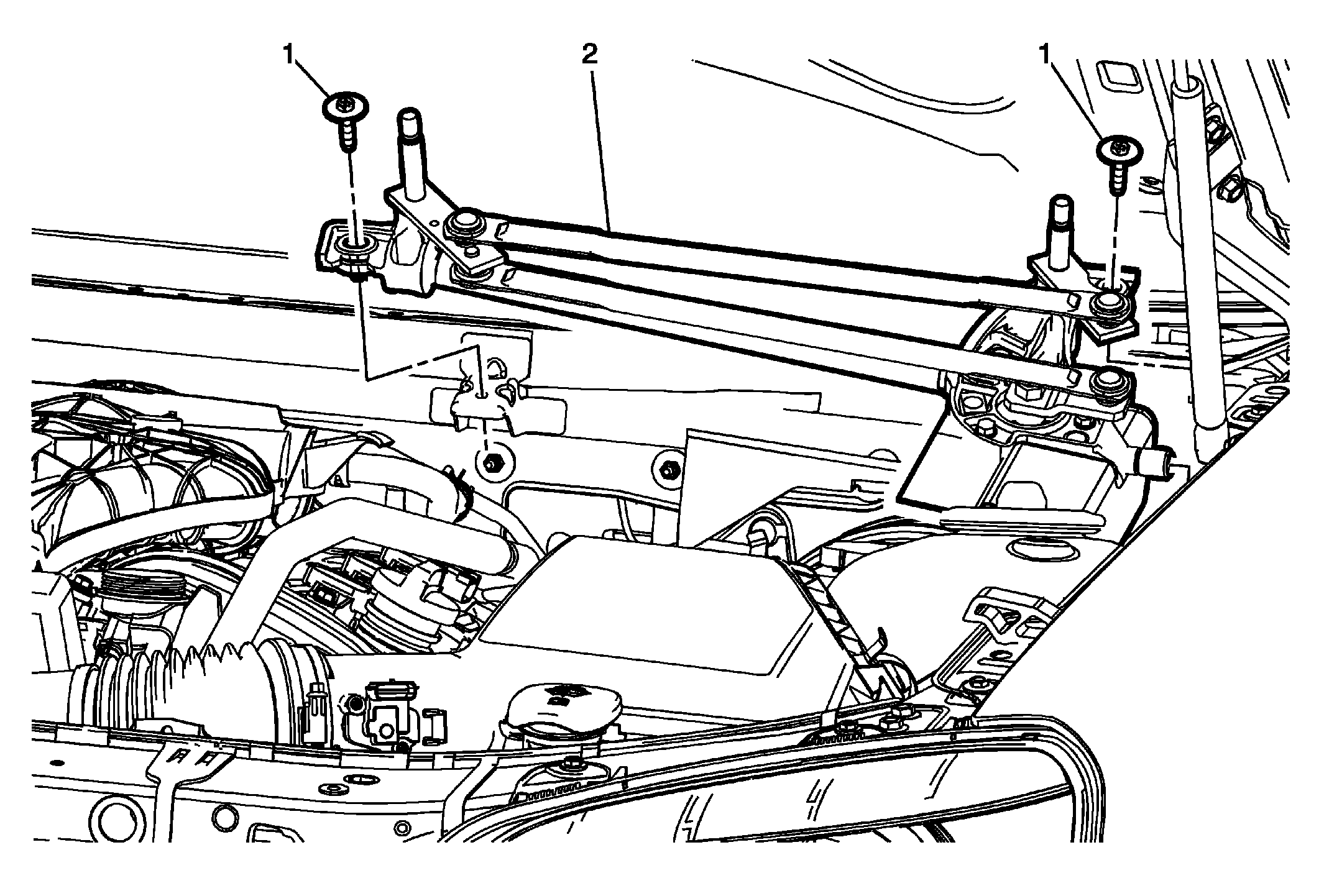

Fig 1: Windshield Wiper System Module

GM2536256

Courtesy of GENERAL MOTORS CORP.

Windshield Wiper System Module Replacement

Callout

Component Name

Preliminary Procedure
Remove the lower air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Lower Panel) , Air Inlet Grille Panel Replacement (Upper Panel) .

1

Windshield Wiper System Module Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

2

Windshield Wiper System Module

Procedure

Lift the module assembly slightly and pull inward toward the center of the vehicle in order to release the alignment pilot from the fender flange.
Disconnect the electrical connector from the wiper motor.
Lift the wiper module assembly from the plenum and remove from the vehicle.
TIP: Insert the alignment pilot into the fender flange prior to installing and securing the wiper module bolts.
