Chevrolet
>>
2011
>>
Caprice
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Infotainment
>>
Cellular System, Entertainment System, And Navigation System
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>
Radio Power, Ground, and Serial Data Wiring Schematics
Radio Power, Ground, and Serial Data Wiring Schematics

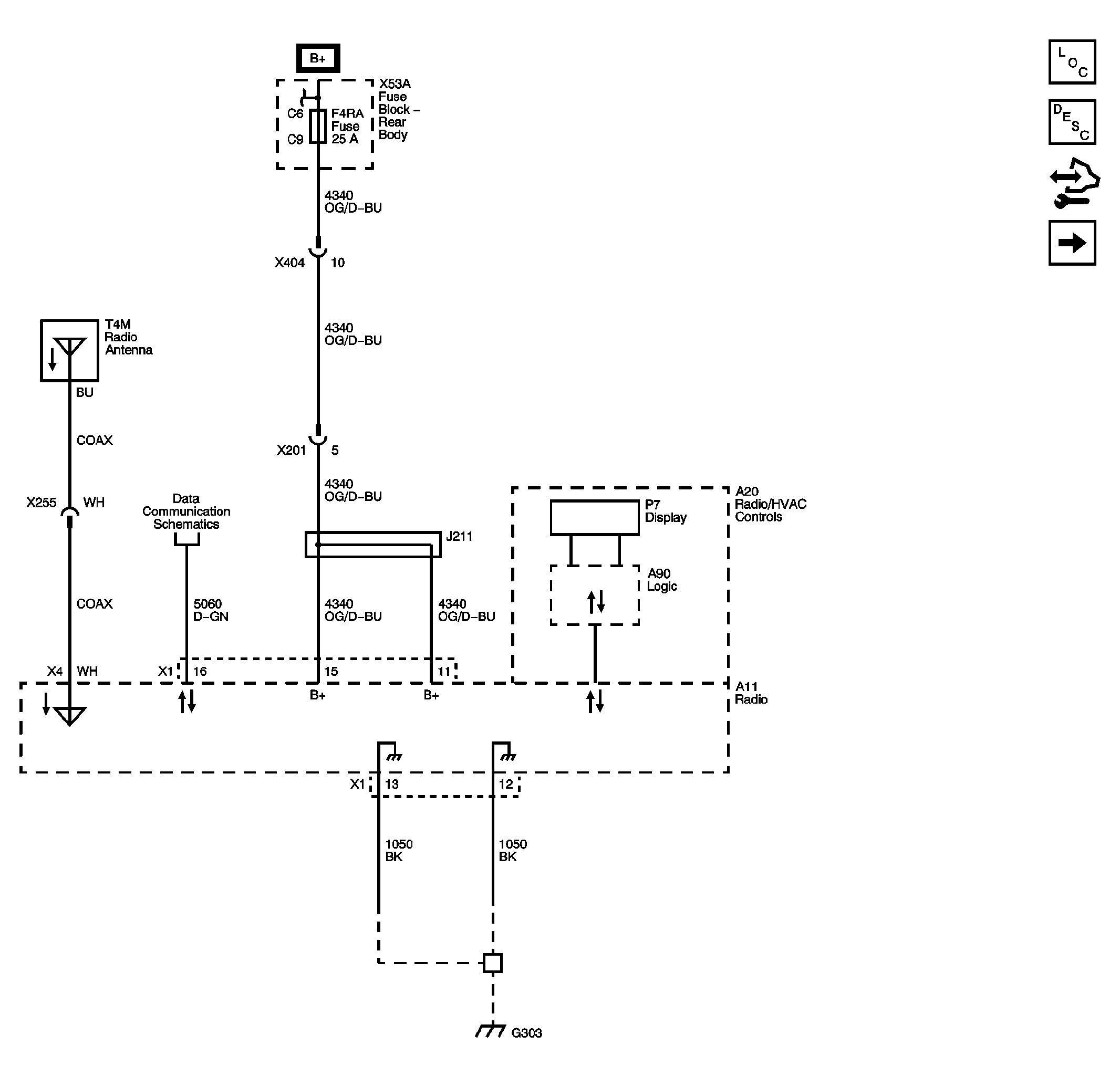

Fig 1: Radio Power, Ground, and Serial Data Wiring Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
