Fixed And MOVEABLE Windows
>>
Wiring Schematics
>>
Defogger Schematics
Defogger Schematics

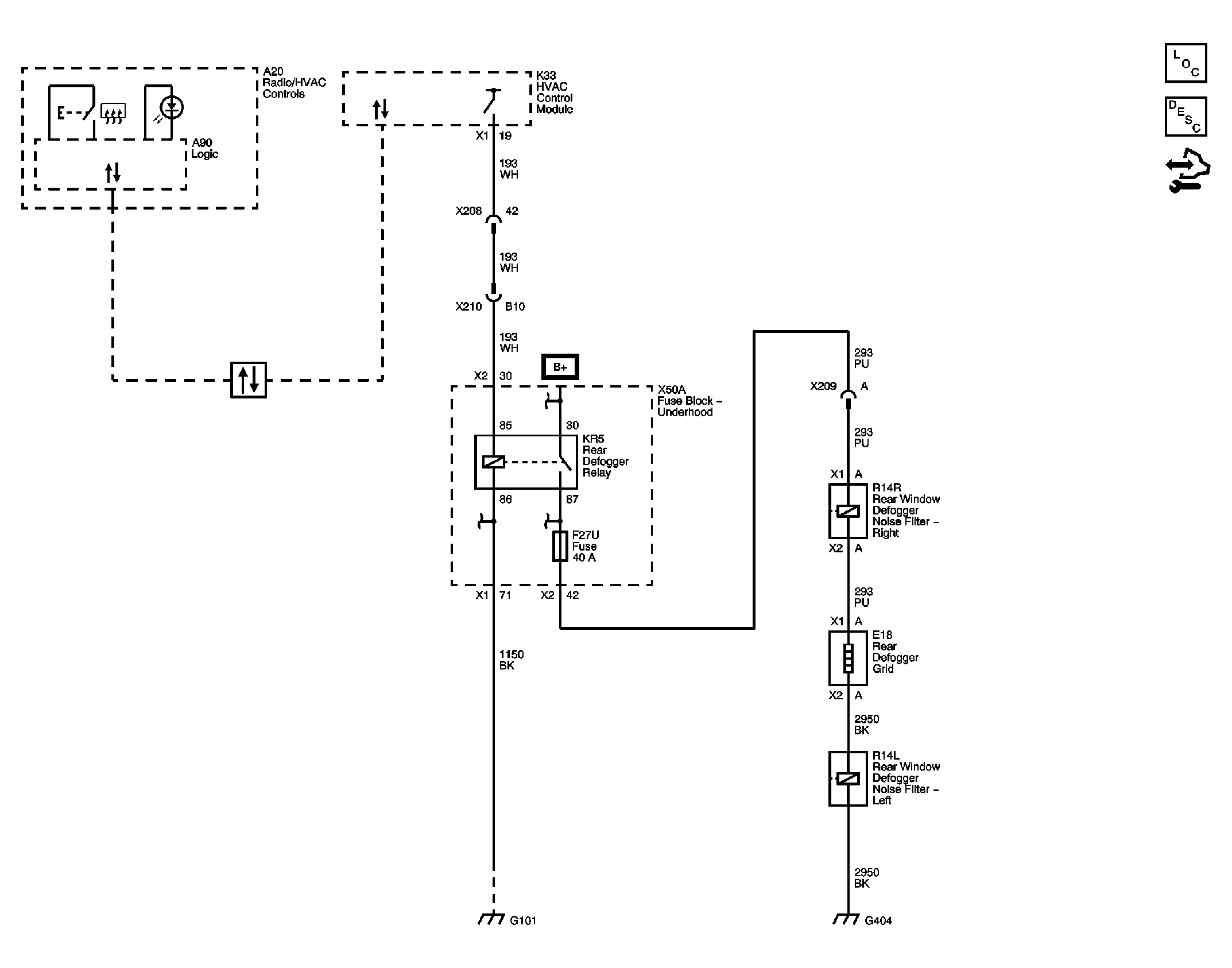

Fig 1: Rear Defogger Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
