Steering Wheel Secondary/Configurable Control Wiring Schematics
Steering Wheel Secondary/Configurable Control Wiring Schematics

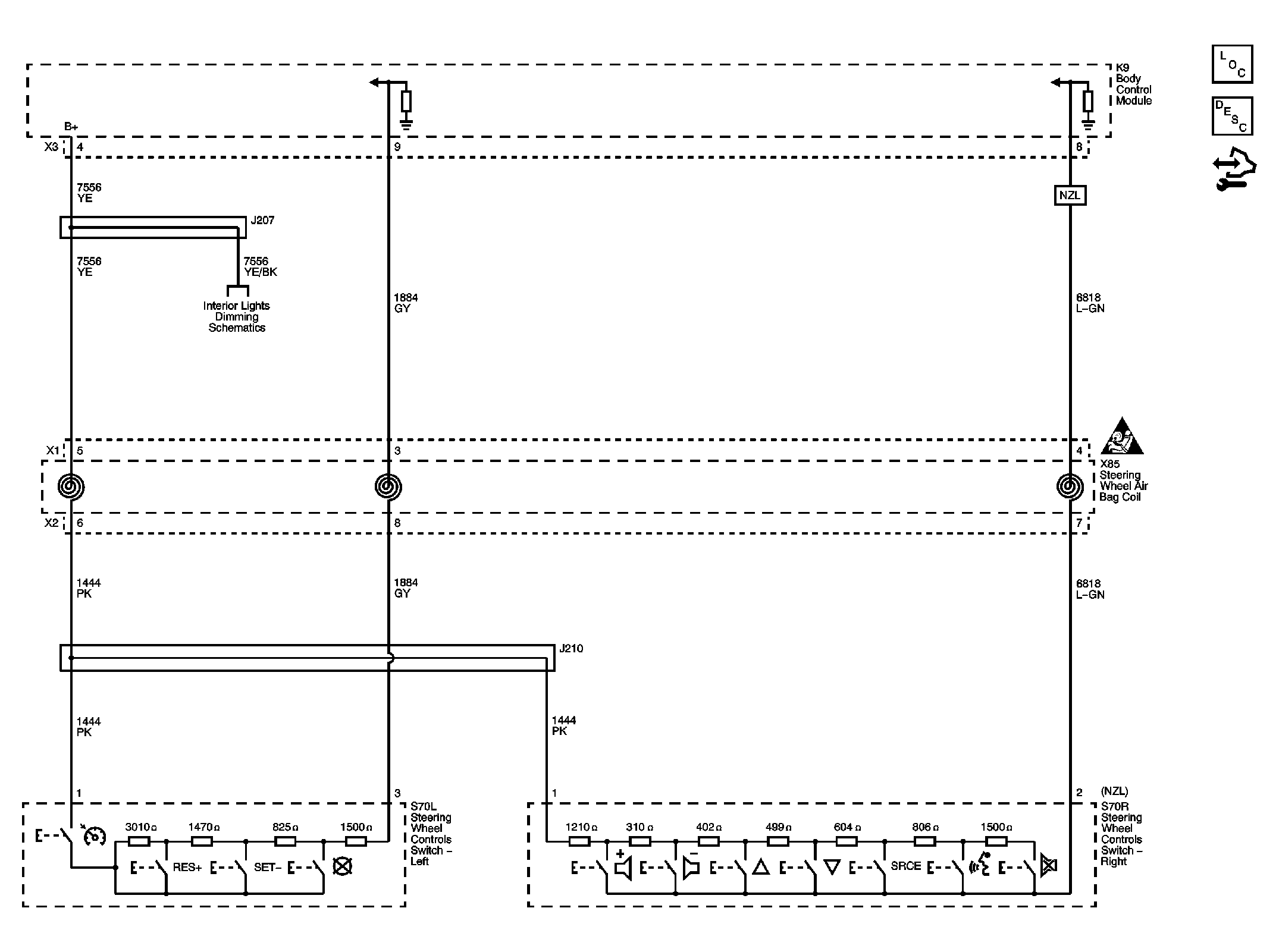

Fig 1: Steering Wheel Wiring Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
