Installation Procedure

WARNING: This page is about a different car, the 2012 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the disc brake caliper bracket.

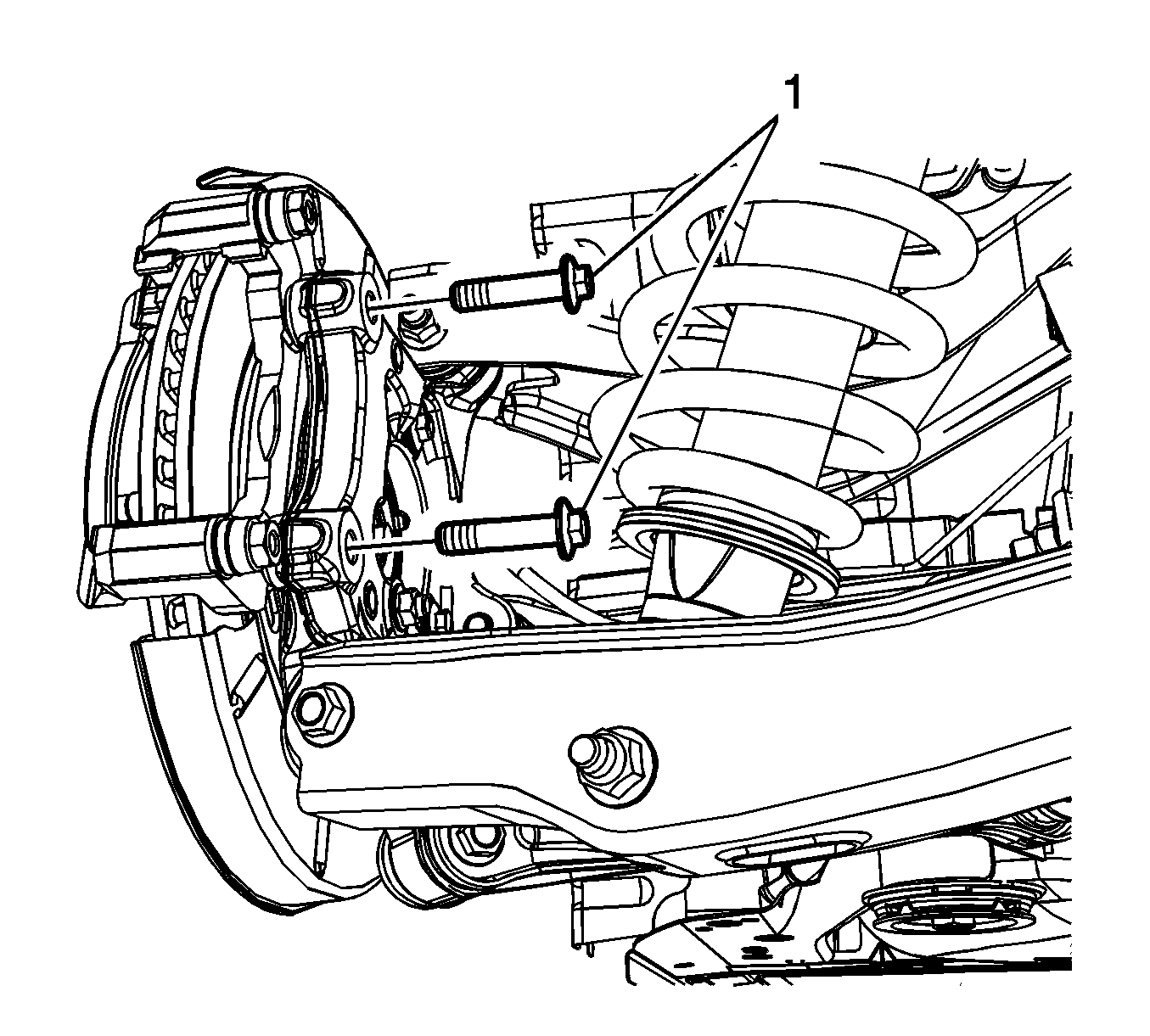

    2. Fig 1: Disc Brake Caliper Bracket Bolts
    GM2202534Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    The brake caliper bracket bolts must be replaced any time they are removed.

  2. Install 2 new disc brake caliper bracket bolts (1) and tighten to 40 N.m (30 lb ft) + 90 degrees.

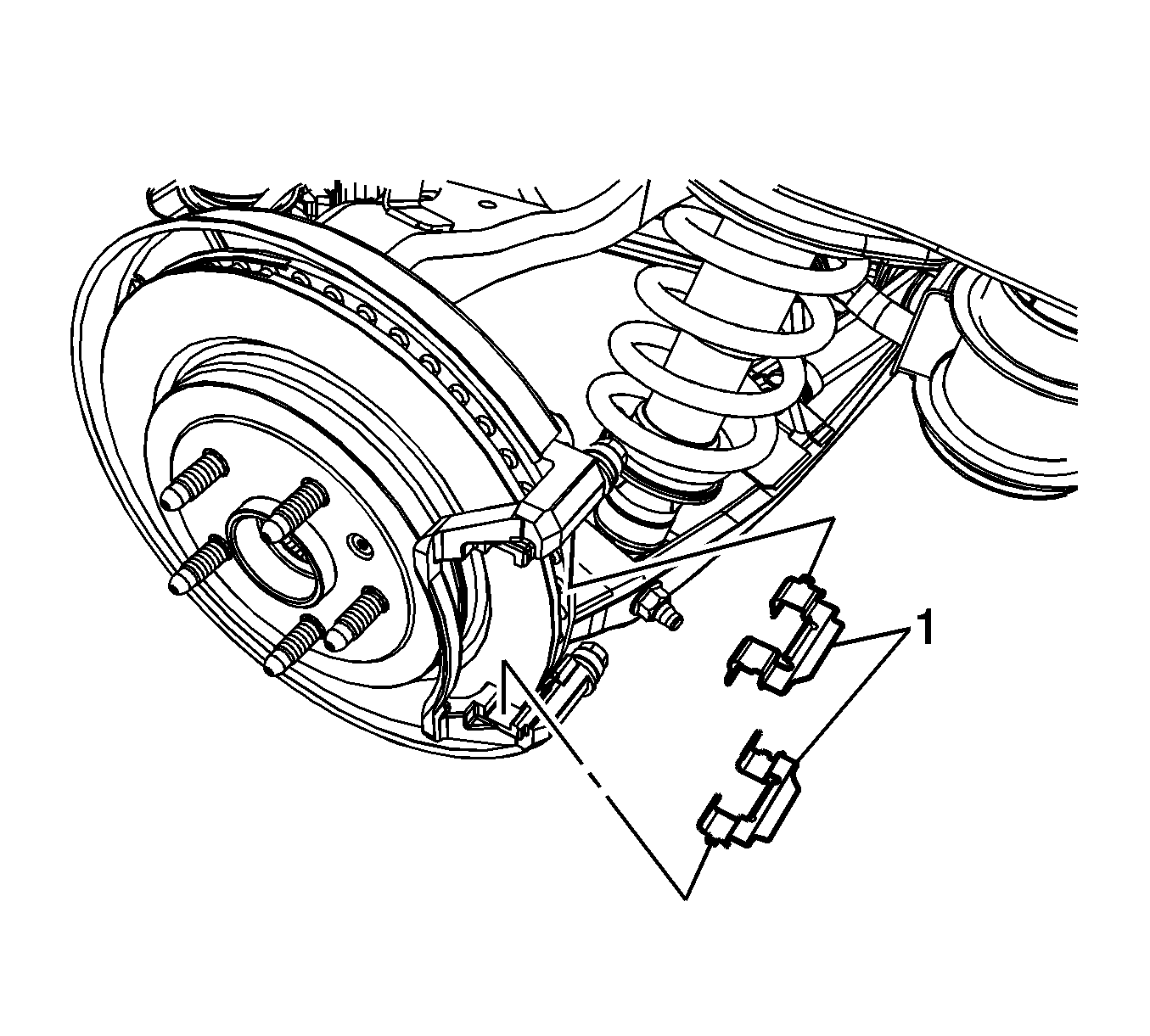

    3. Fig 2: Brake Pad Springs
    GM2202532Courtesy of GENERAL MOTORS COMPANY
  3. Install the disc brake pad springs (1).

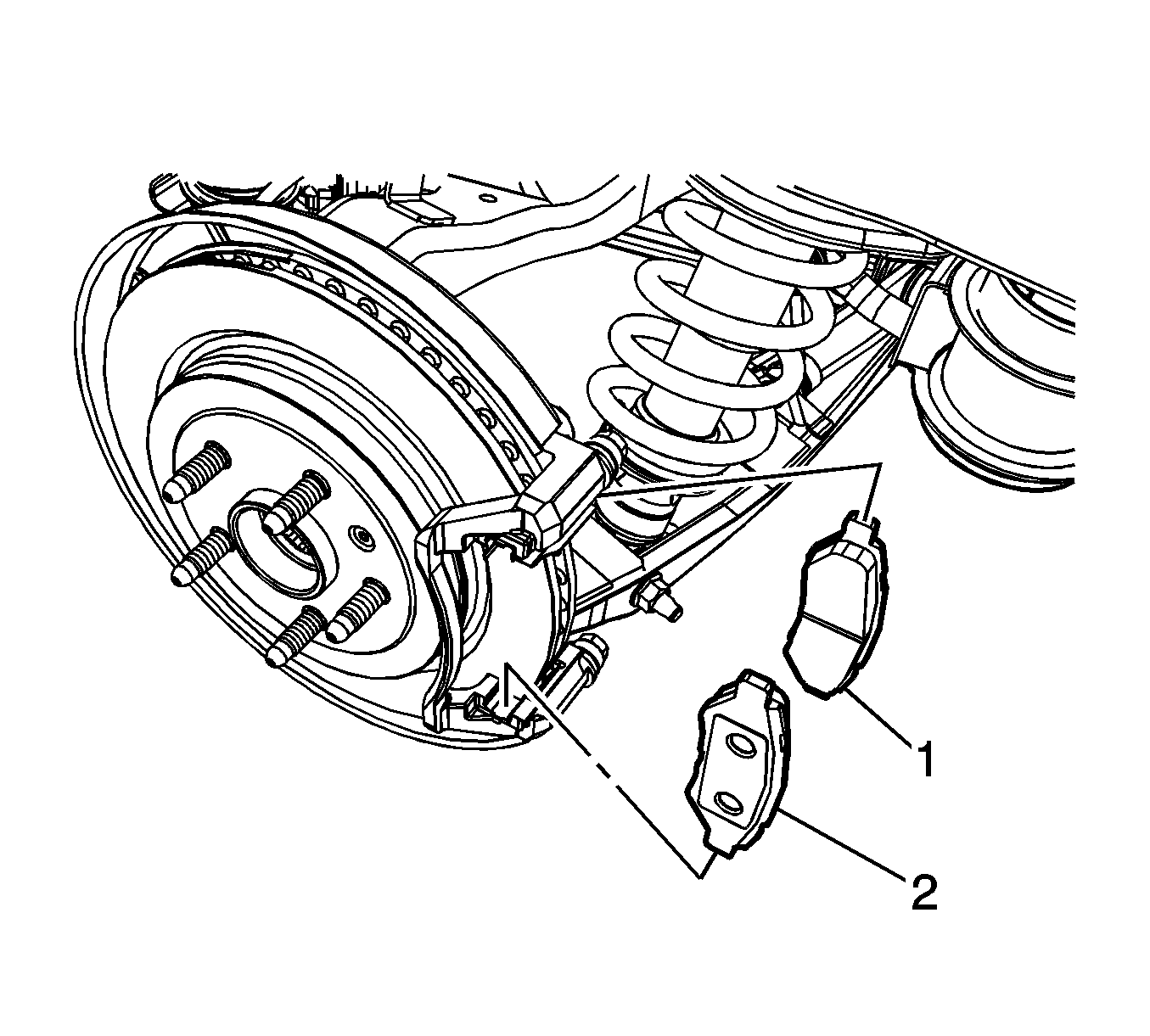

    4. Fig 3: Brake Pads
    GM2202531Courtesy of GENERAL MOTORS COMPANY
  4. Install the inner disc brake pad (1).
  5. Install the outer disc brake pad (2).

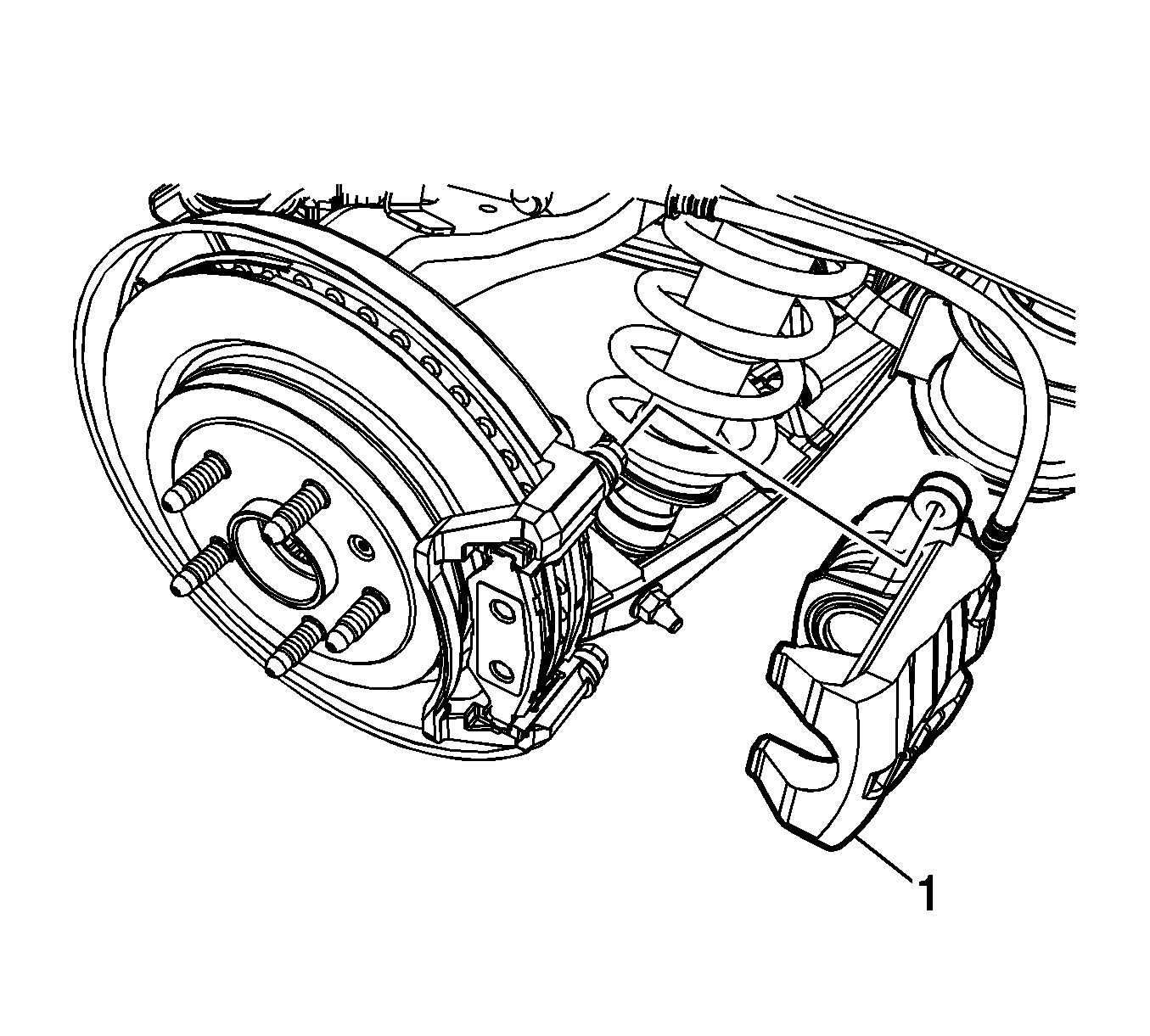

    6. Fig 4: Brake Caliper
    GM2202530Courtesy of GENERAL MOTORS COMPANY
  6. Install the disc brake caliper (1).

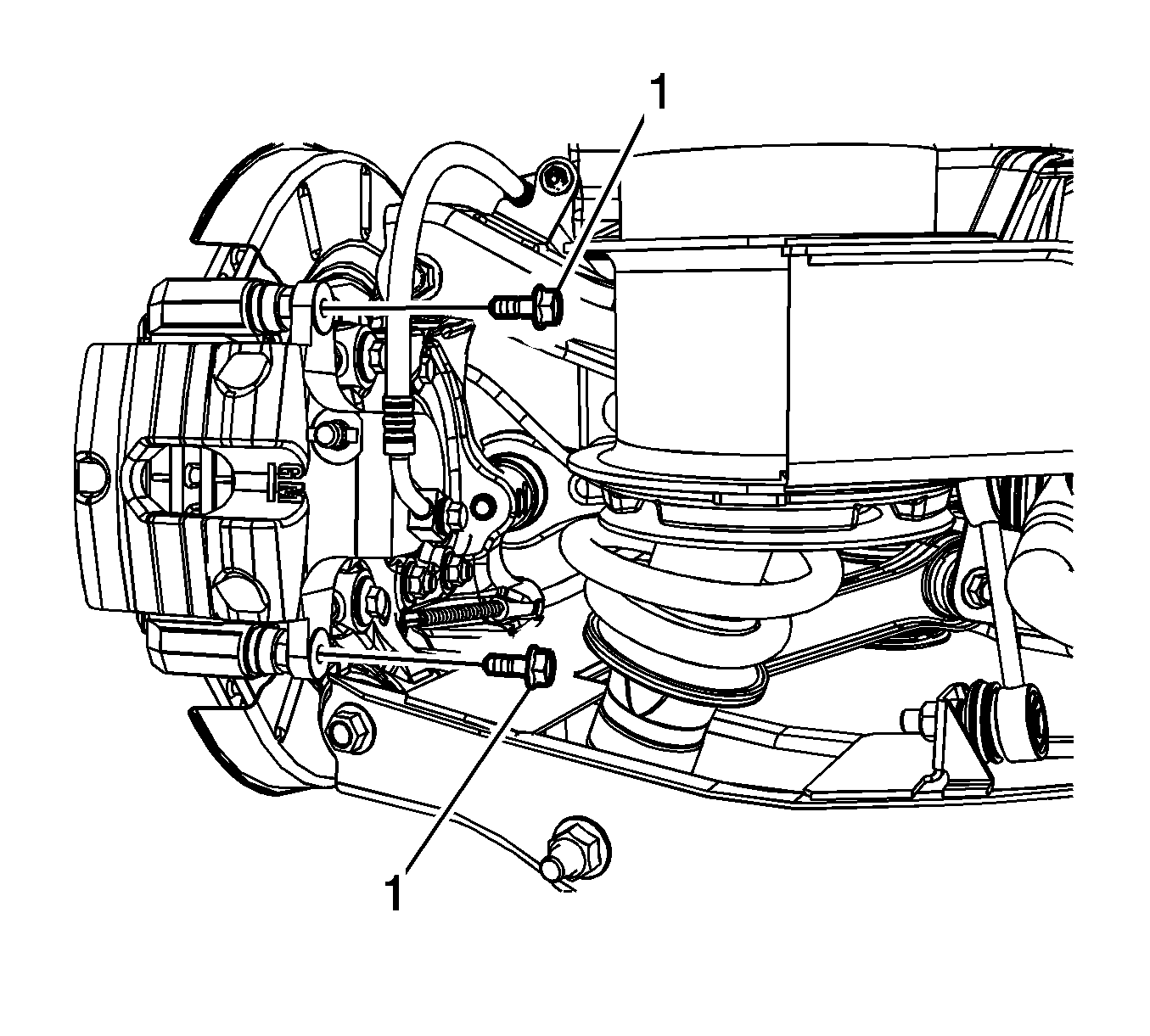

    7. Fig 5: Brake Caliper Guide Pin Bolts
    GM2202528Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The brake caliper guide pin bolts must be replaced any time they are removed.

  7. Using a backup wrench on the brake caliper guide pins, install 2 new brake caliper guide pin bolts (1) and tighten to 27 N.m (20 lb ft).
  8. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (w RT2) , Tire and Wheel Removal and Installation (w/o RT2) .
