Door Lock Switch Replacement - Driver Side

WARNING: This page is about a different car, the 2012 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

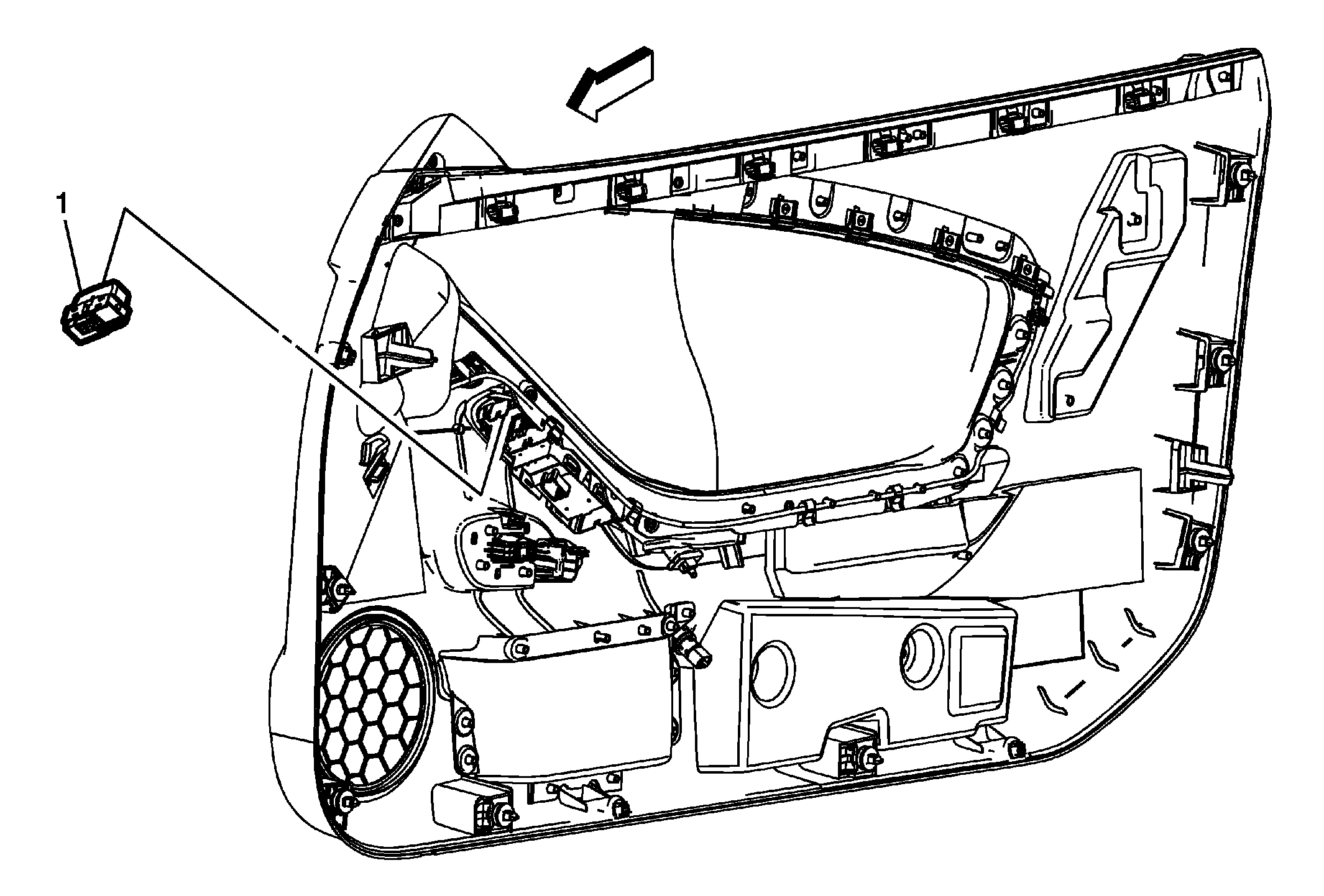

Fig 1: Door Lock Switch - Driver Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Door Lock Switch Assembly Procedure Using a plastic pry tool, gently pry on the sides to release the switch. Disconnect the electrical connectors. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .

Door Lock Switch Assembly

Procedure

Using a plastic pry tool, gently pry on the sides to release the switch.
Disconnect the electrical connectors.
Refer to Control Module References for programming and set up procedures.
