Installation Procedure

    Fig 1: Ignition Coils & Bolts
    GM860797Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition coil(s).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the ignition coil bolt(s) and tighten to 10 N.m (89 lb in).

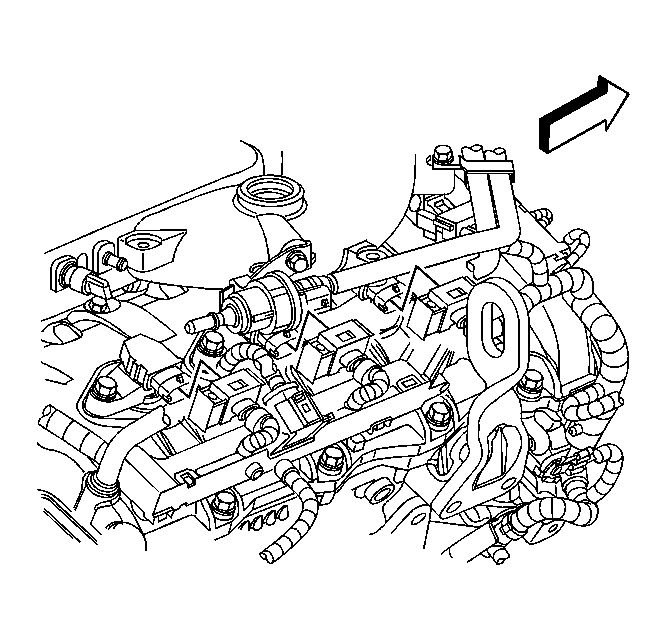

    3. Fig 2: View Of Ignition Coil Electrical Connectors
    GM887888Courtesy of GENERAL MOTORS CORP.
  3. Install the ignition coil electrical connector(s).
  4. If necessary, install the upper intake manifold.
  5. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
