Fuel Pressure Sensor Replacement - Fuel Feed Pipe

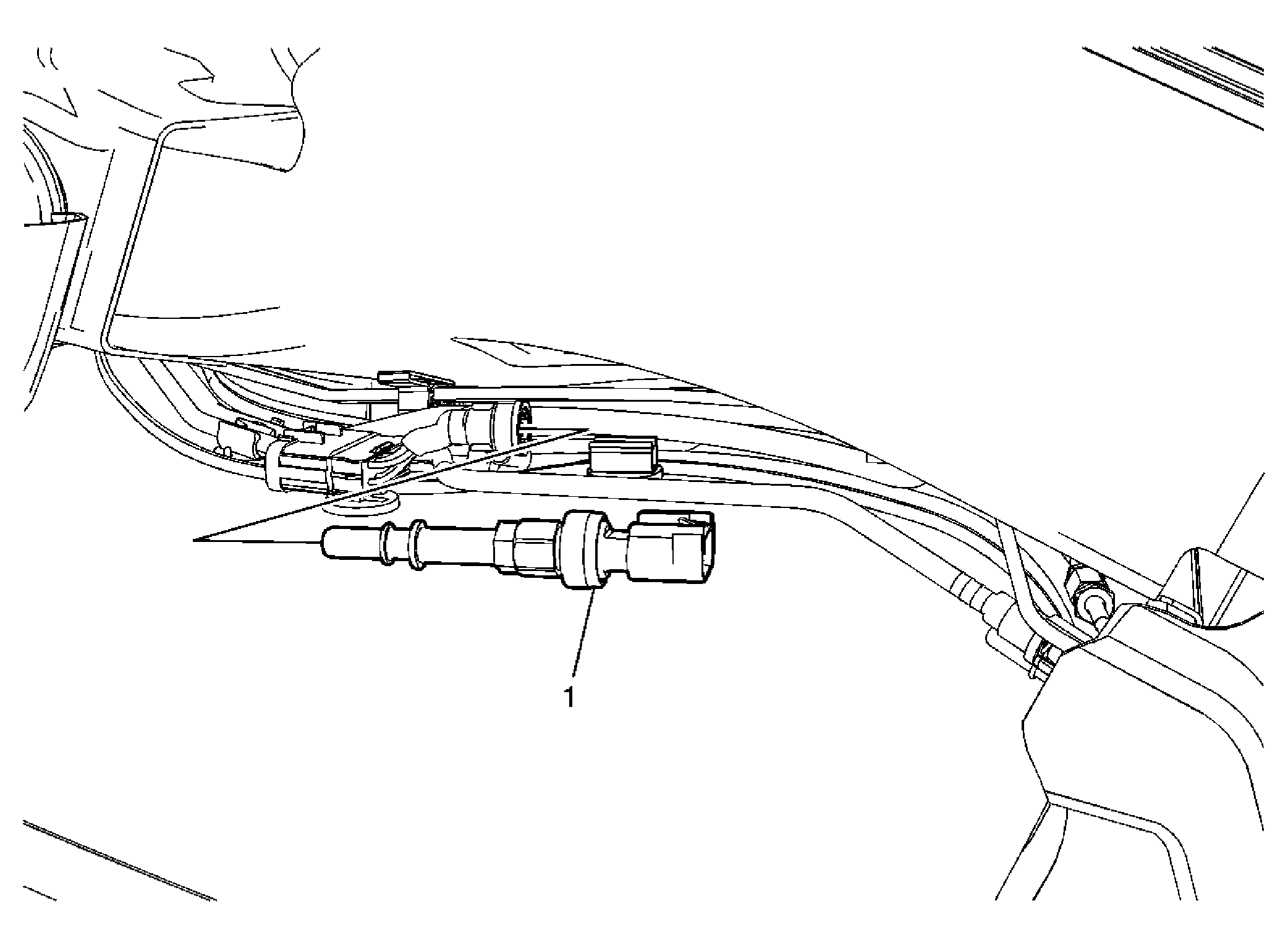

Fig 1: Fuel Pressure Sensor - Fuel Feed Pipe
GM2195608Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Relieve the fuel pressure. Refer to Fuel Pressure Relief .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Fuel Pressure Sensor

Procedure

  1. Disconnect the fuel feed pipe. Refer to Plastic Collar Quick Connect Fitting Service .
  2. Disconnect the electrical connector.
