Installation Procedure

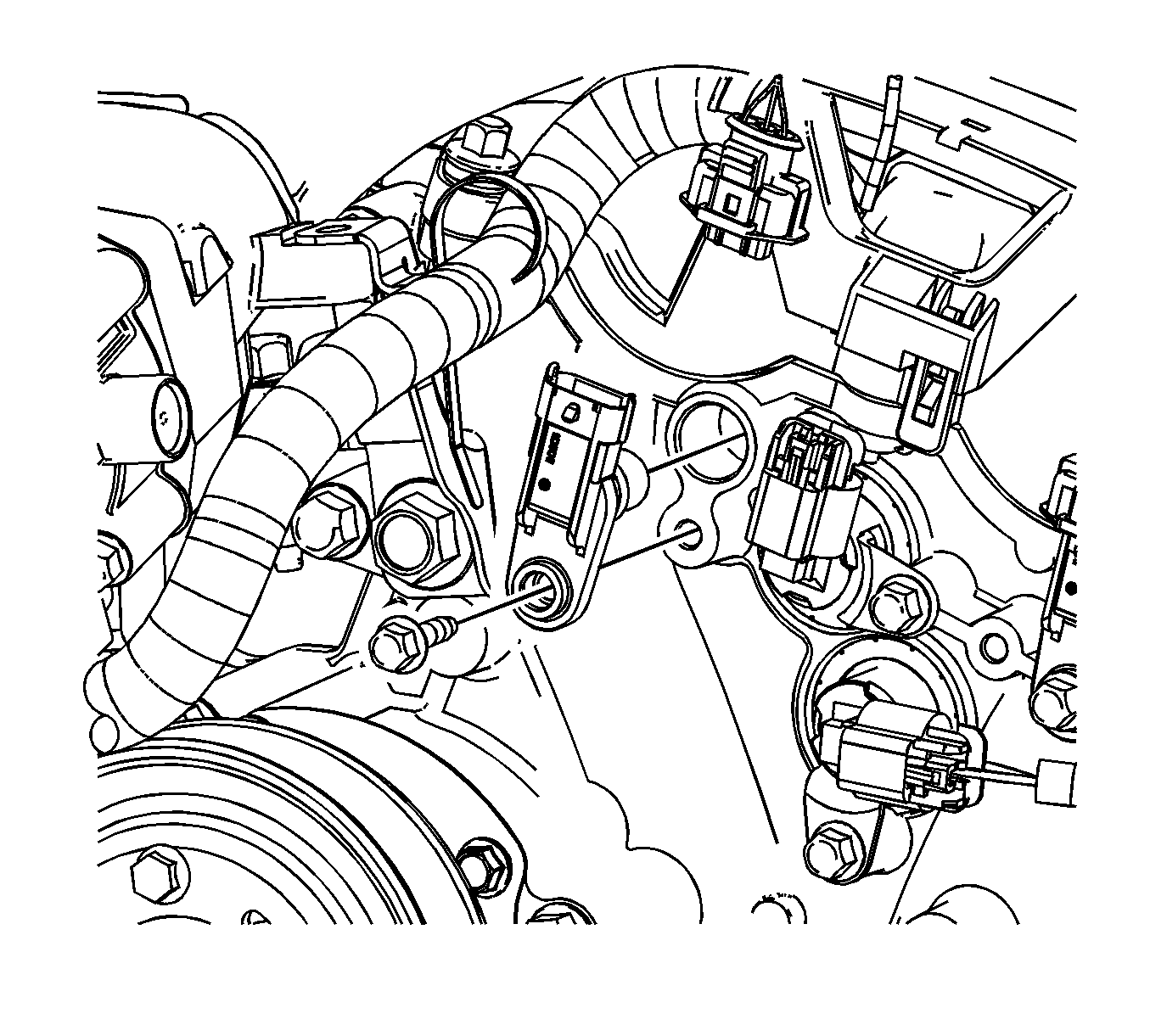

    Fig 1: View Of Left CMP Sensor - Intake
    GM1285241Courtesy of GENERAL MOTORS CORP.
  1. Install the CMP sensor.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the CMP sensor bolt and tighten to 10 N.m (89 lb in).

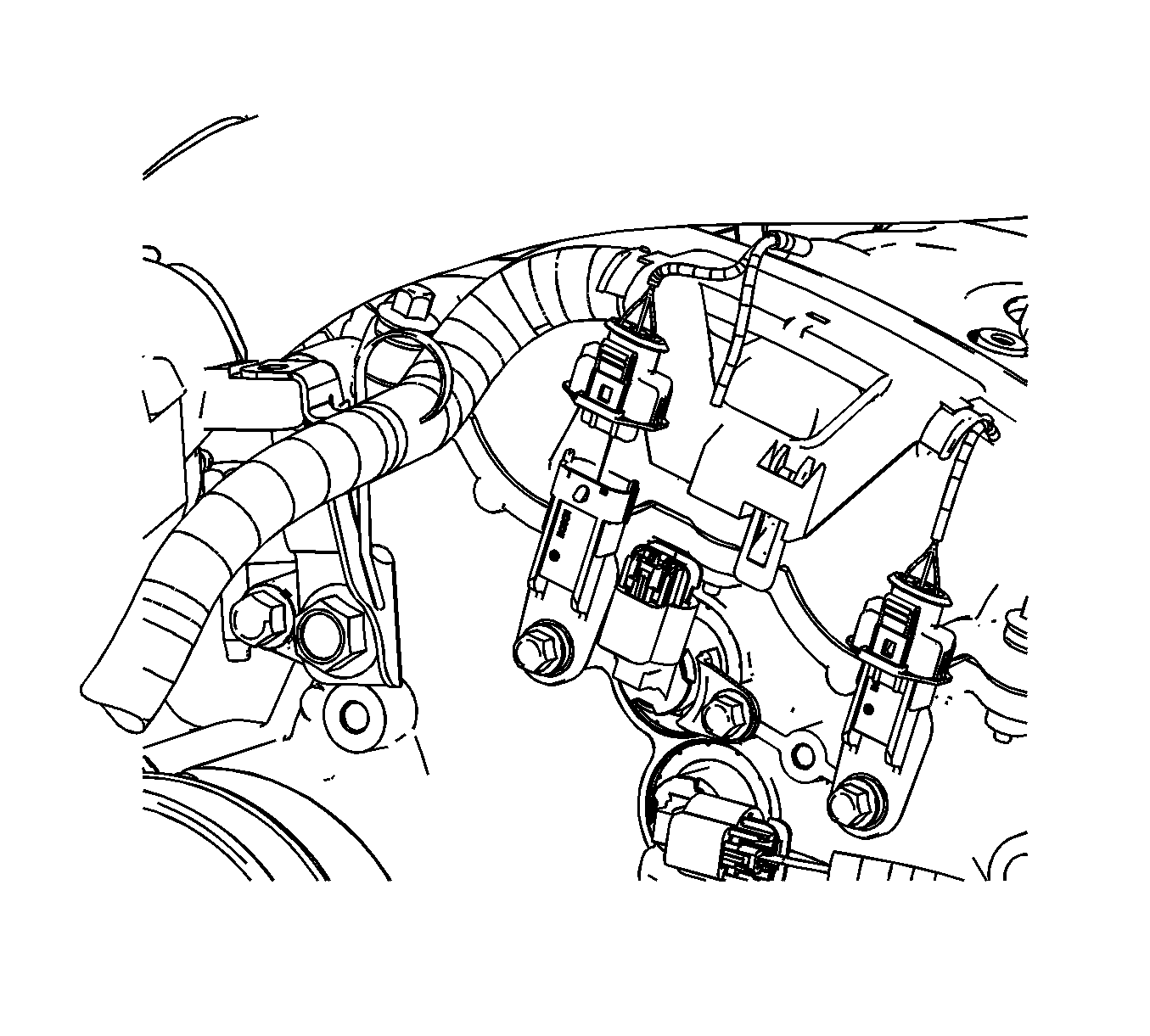

    3. Fig 2: View Of Left CMP Sensor Electrical Connector - Intake
    GM1285239Courtesy of GENERAL MOTORS CORP.
  3. Install the CMP sensor electrical connector.
  4. Install the power steering fluid reservoir. Refer to Power Steering Fluid Reservoir Replacement (V6) .
