Antilock Brake System Wiring Schematics

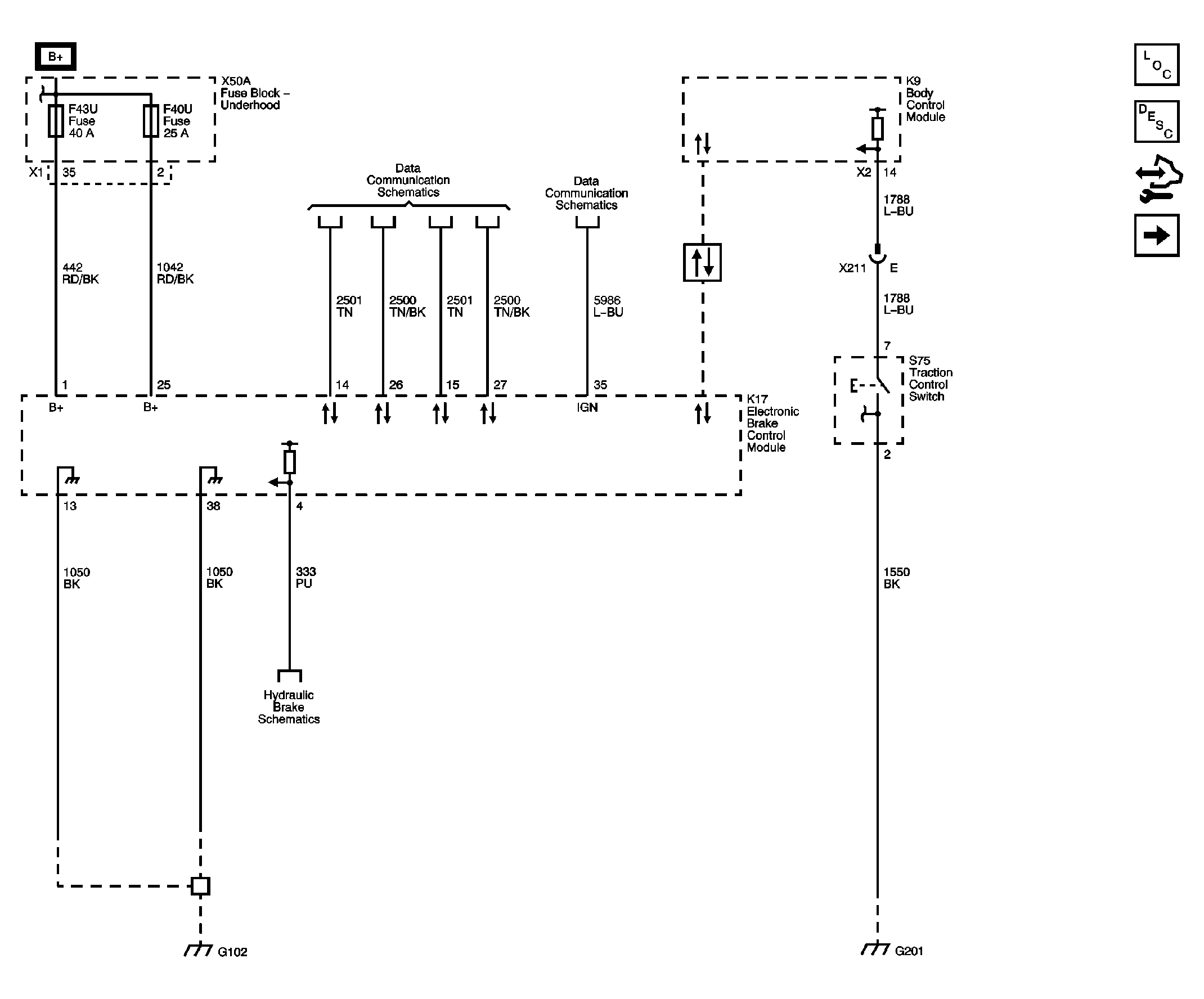

Fig 1: Power and Ground Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

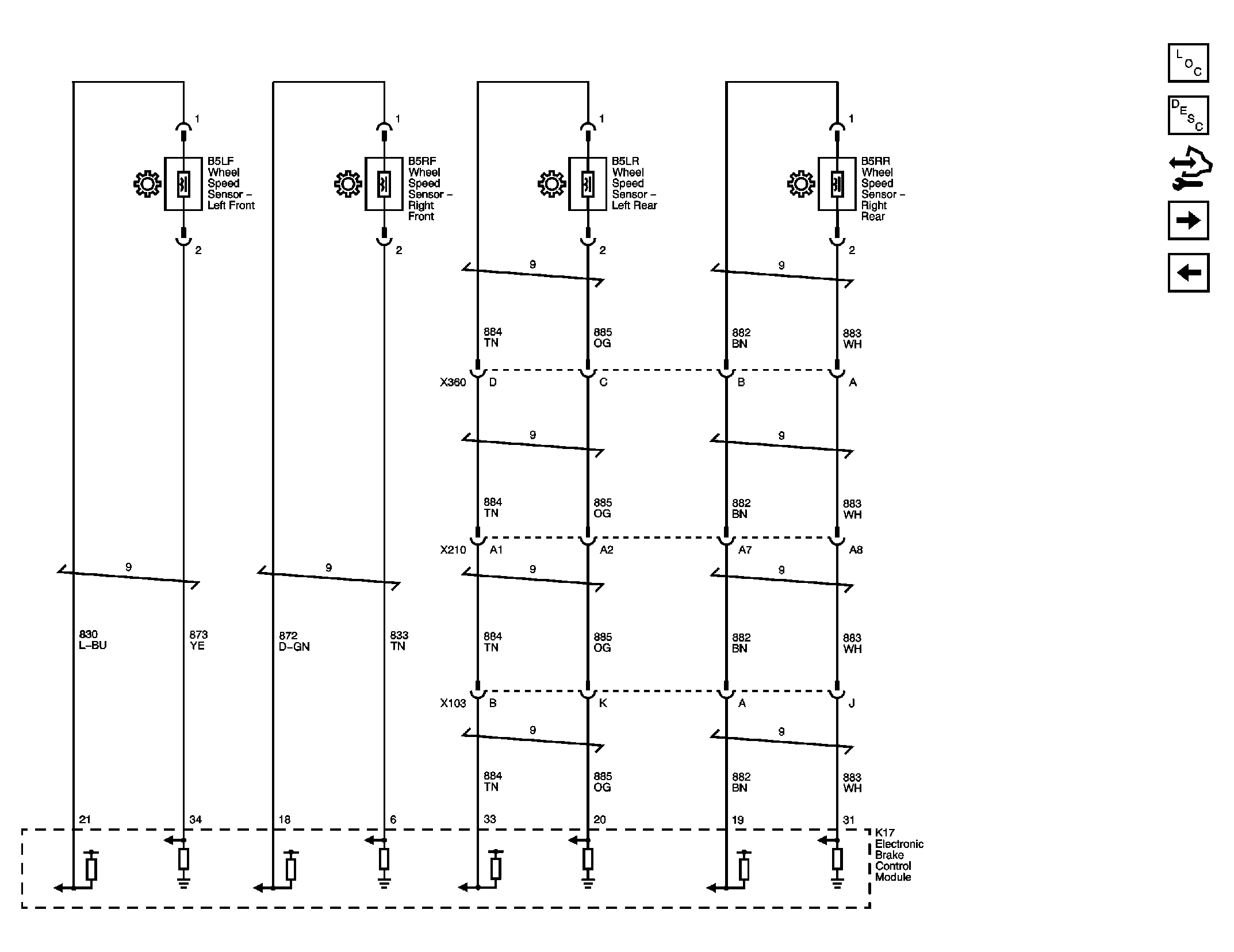

Fig 2: Sensors Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

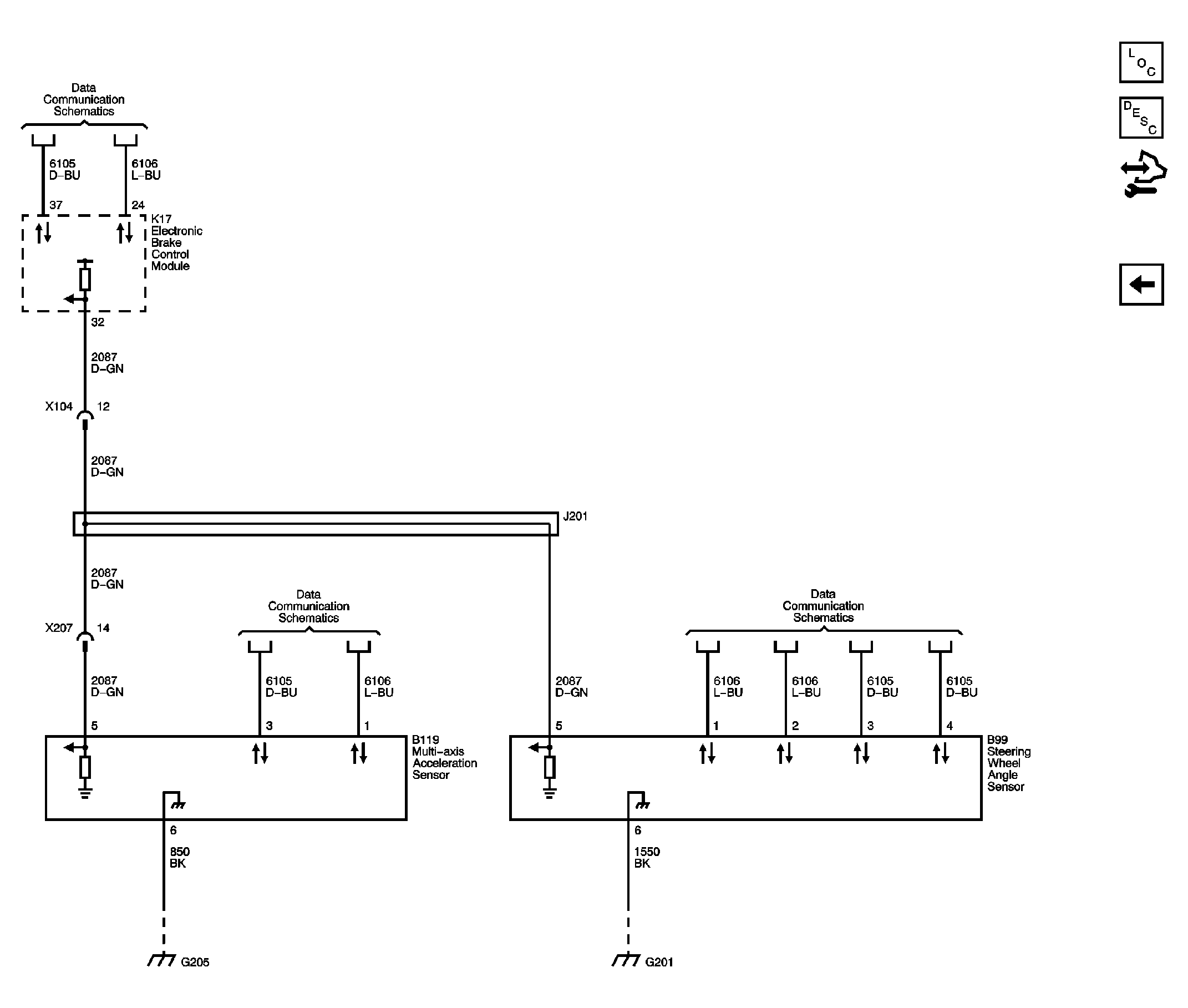

Fig 3: Multi-axis Acceleration Sensor and Steering Wheel Angle Sensor Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
