Ignition and Start Switch Replacement

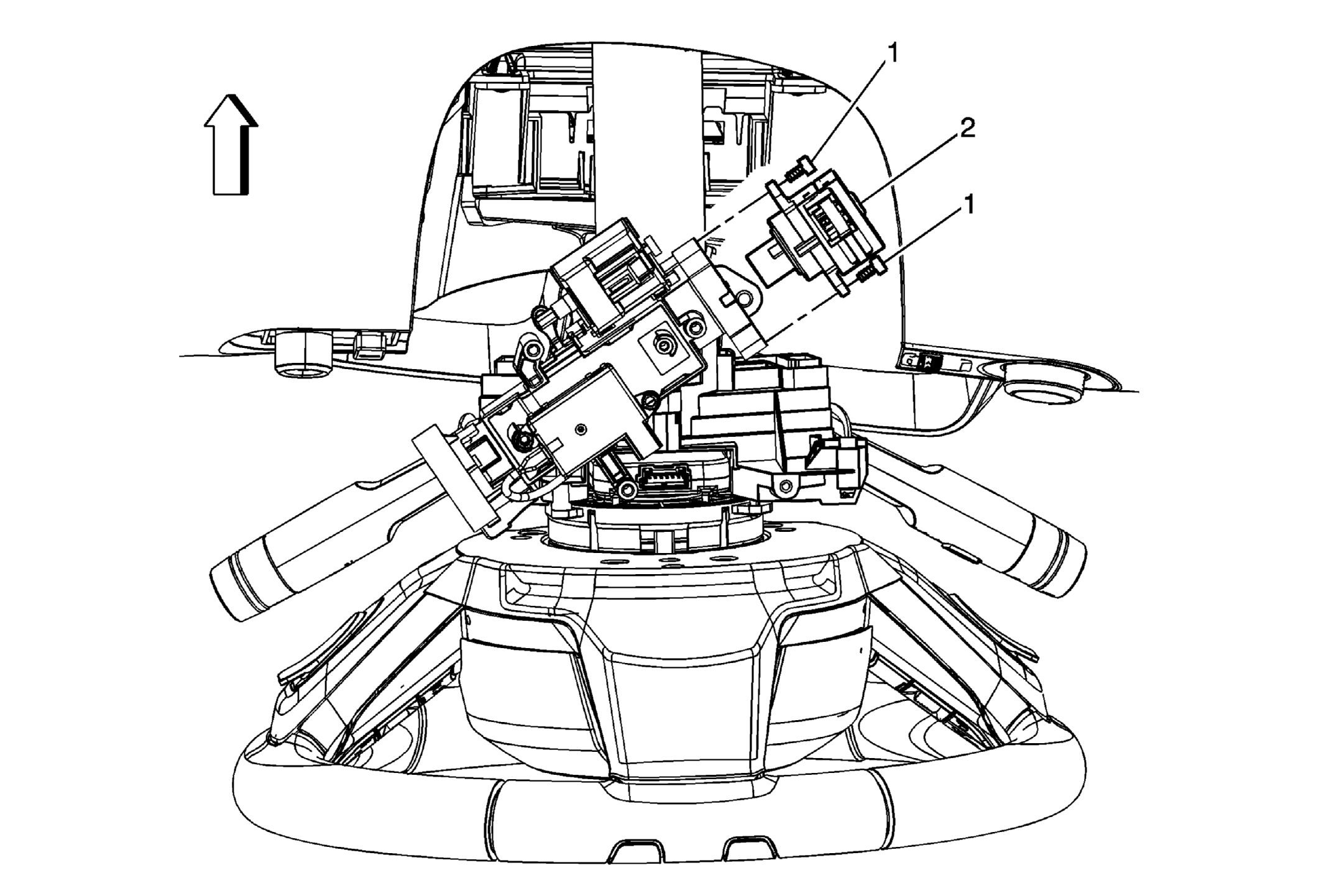

Fig 1: Ignition & Start Switch (Without BTM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the steering column shroud. Refer to Steering Column Shroud Replacement .
1	Ignition and Start Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Ignition and Start Switch Procedure: Disconnect the ignition switch electrical connector.

Callout

Component Name

Preliminary Procedure

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the steering column shroud. Refer to Steering Column Shroud Replacement .

Ignition and Start Switch Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Ignition and Start Switch
Procedure:
Disconnect the ignition switch electrical connector.
