Front Harness Routing
Front Harness Routing

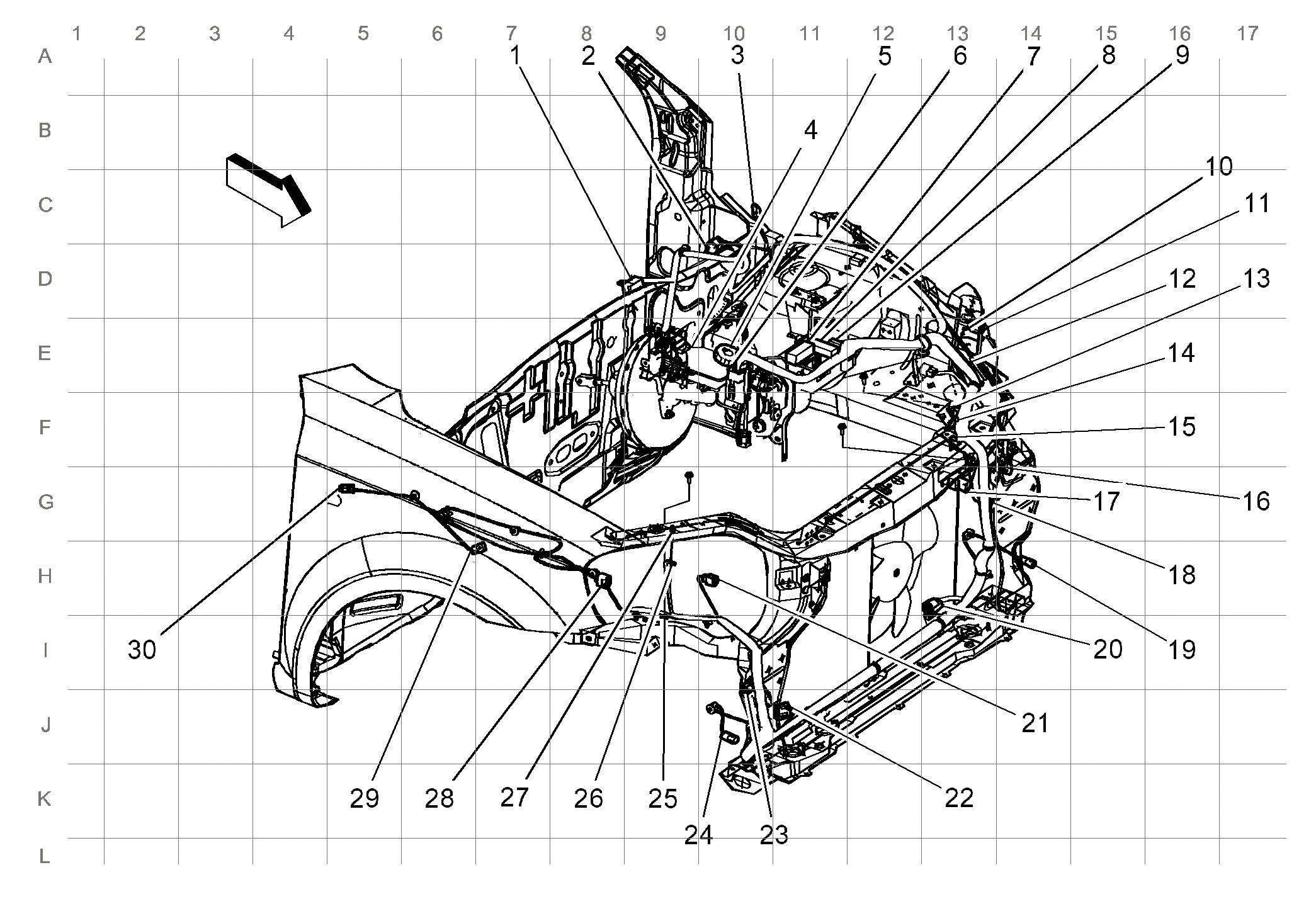

| Component Name | Callout |
|---|---|
| X208 | 1 |
| Windshield Wiper Motor | 2 |
| Turn Signal Repeater - Left | 3 |
| Brake Fluid Level Switch | 4 |
| Wheel Speed Sensor (WSS) - Left Front | 5 |
| Electronic Brake Control Module (EBCM) | 6 |
| X102 | 7 |
| X103 | 8 |
| Fuse Block - Underhood | 9 |
| Inflatable Restraint Front Discriminating Sensor - Left | 10 |
| Park/Turn Signal Lamp - Left Front | 11 |
| Headlamp - Left | 12 |
| Position Lamp/Headlamp Leveling Actuator - Left | 13 |
| G102 | 14 |
| Hood Ajar Switch | 15 |
| Windshield Washer Fluid Pump (Notchback)/Windshield Washer Fluid Pump - Front (Hatchback) | 16 |
| Horn | 17 |
| Ambient Air Temperature Sensor | 18 |
| Fog Lamp - Left Front | 19 |
| Cooling Fan | 20 |
| Position Lamp/Headlamp Leveling Actuator - Right | 21 |
| Heated Oxygen Sensor (HO2S) 2 | 22 |
| A/C Compressor Clutch | 23 |
| Fog Lamp - Right Front | 24 |
| G101 | 25 |
| Headlamp - Right | 26 |
| Inflatable Restraint Front Discriminating Sensor - Right | 27 |
