Installation Procedure

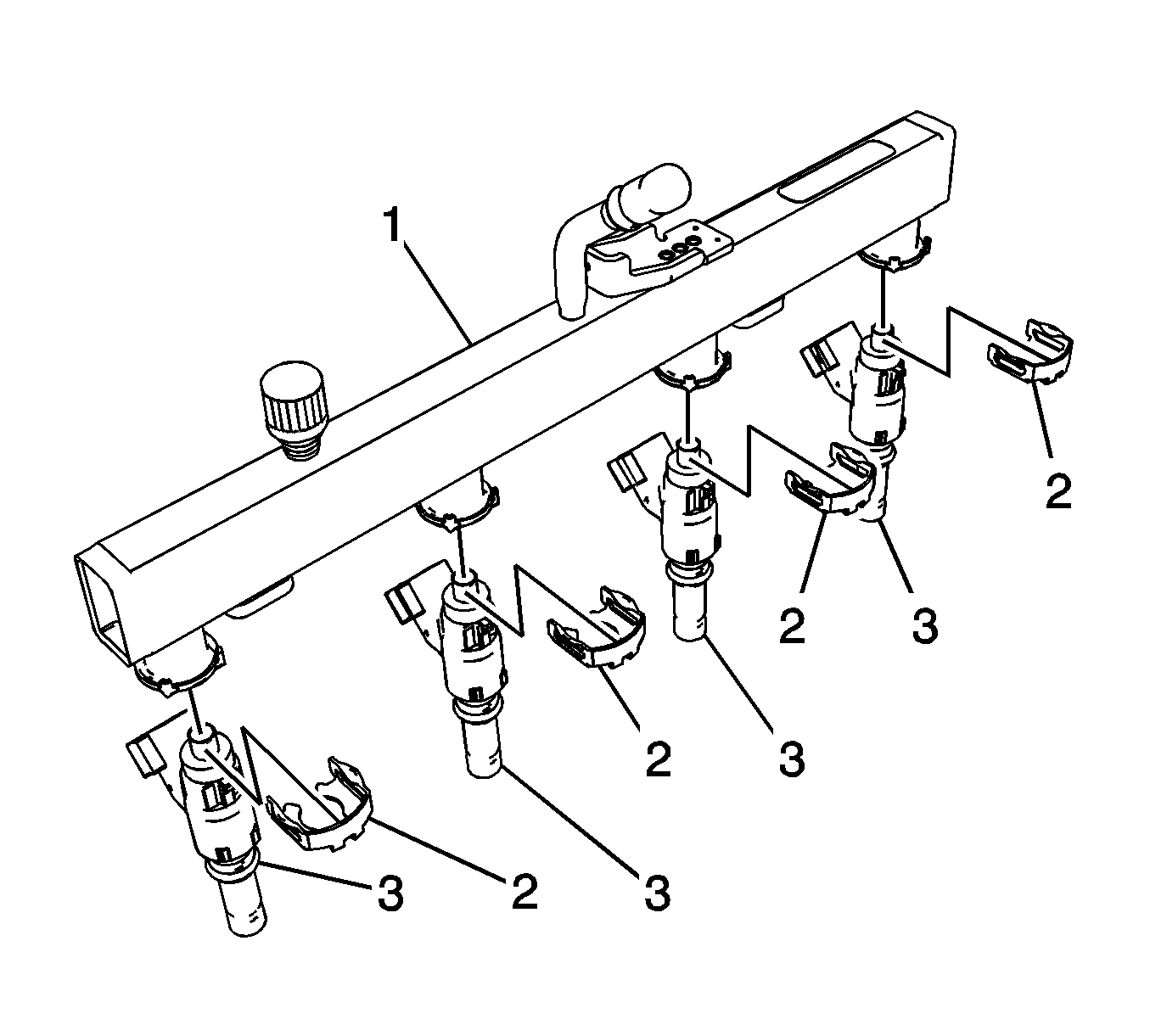

    Fig 1: Fuel Rail, Injectors & Retainer Clips
    GM2049242Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel injector O-rings.
  2. Connect fuel injectors (3) to the fuel rail (1).
  3. Install the fuel injector retainer clips (2).

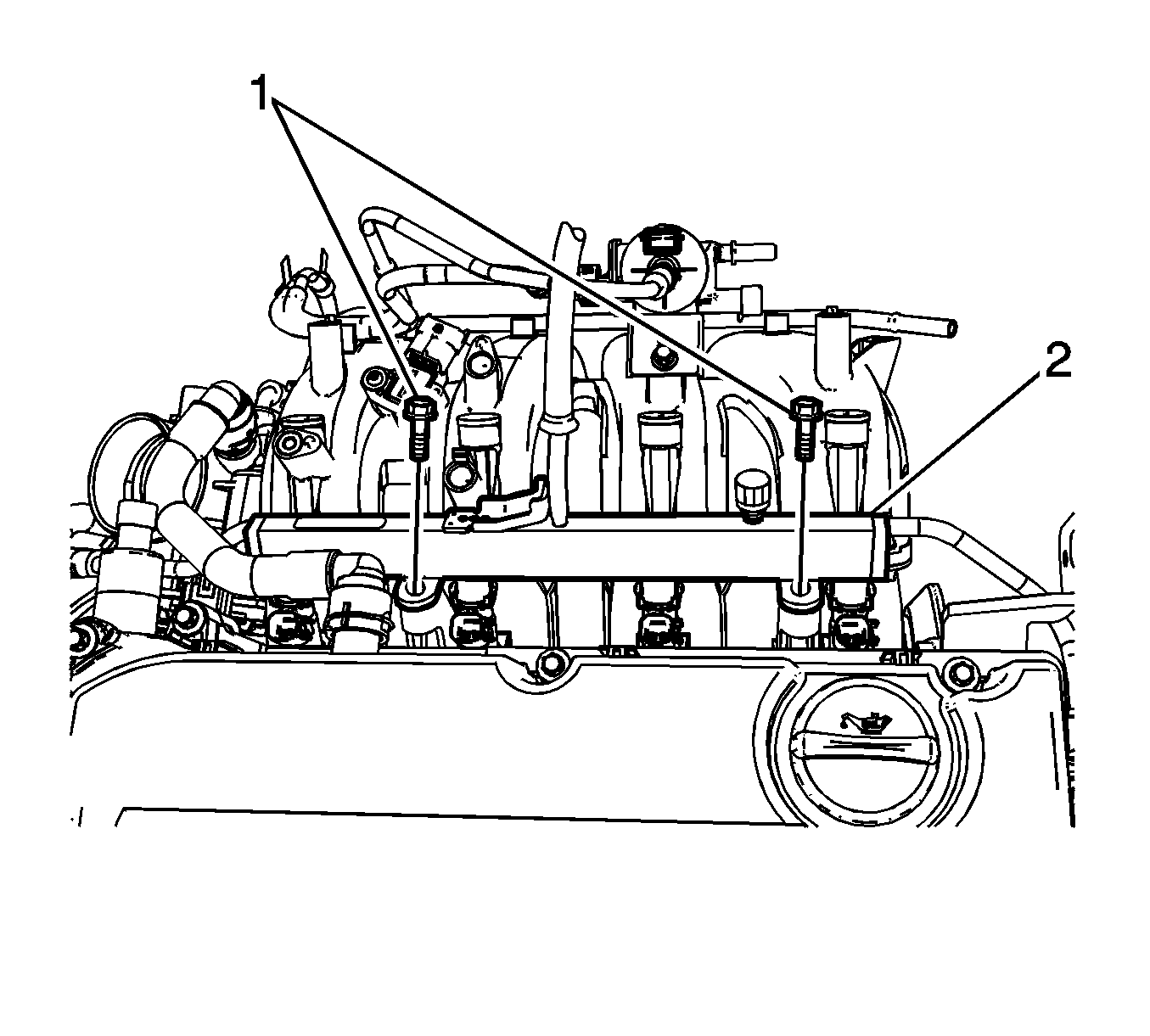

    4. Fig 2: Fuel Rail & Bolts
    GM2049240Courtesy of GENERAL MOTORS CORP.
  4. Install the fuel rail (2) with the injectors to the intake manifold.
    5. CAUTION: Refer to Fastener Caution .
  5. Install the fuel rail bolts (1).

    Tighten:  Tighten the fuel rail tightening bolt to 8 N.m (70.8 lb in).

  6. Connect the fuel line from the fuel rail and put a dust cap to avoid strange materials.
  7. Connect the fuel injector connectors.
  8. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
